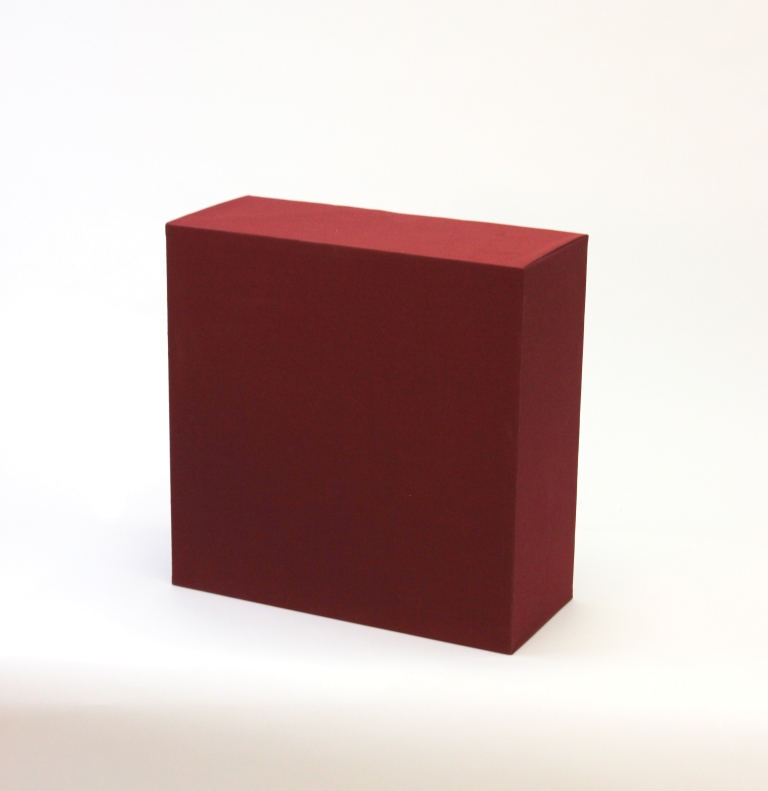

GIK Acoustics Scopus Tuned Membrane Bass Trap (T70)
The GIK Acoustics Scopus trap takes low end control to new level with maximum targeted absorption.

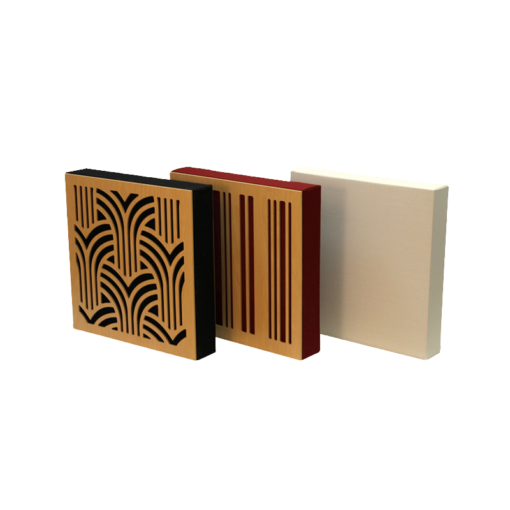

Incorporate diffusion in your Tuned Bass Trap with Impression Series or Alpha Series plates
SCOPUS TUNED MEMBRANE (T70) BASS TRAP FEATURES:
- 100% pressure based absorption
- Dimensions: 23” x 23” x 4.25” for flexible mounting
- Weight: 20 pounds
- Target Frequency Range: 55 Hz – 100 Hz
- Easy to hang or stackable
- Lab tested
- Narrow, targeted absorption range (< 1 octave)
- Custom tunings available
- You can choose to add diffusion to your Scopus Trap by selecting plates from either the Alpha Series (3 patterns available) or Impression Series (5 patterns available). Plates come in three finishes: blonde wood veneer, black veneer, white veneer, Gray Elm veneer, or Mahogany veneer.
- Class A fire rated – Click HERE for Fire Rating test results
- employs ECOSE® technology absorption material and is manufactured with LEED certified Columbia Forest Products (made in the USA) formaldehyde-free technology

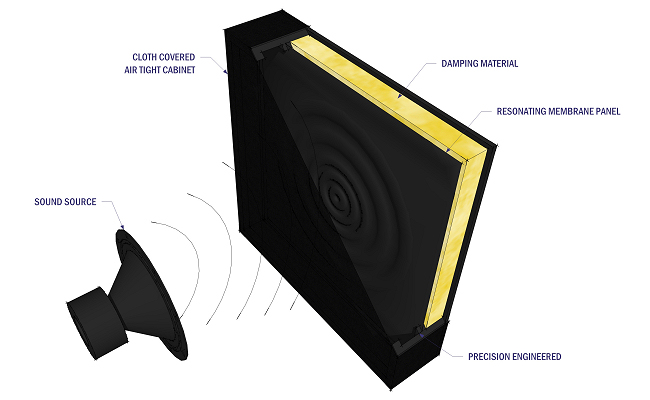

The GIK Acoustics Scopus Tuned Membrane Bass Trap takes low end control to new level with maximum targeted absorption using a membrane design with an air tight chamber. Think of them like a drum in reverse. When you strike a drum, it makes a sound based on the mass of the head and the size and depth of the drum body. In the Scopus Tuned Membrane Bass Trap, the sound strikes the ‘head’ and causes the membrane to move, absorbing the energy based on the mass of the membrane and the depth of the sealed cavity.
Unlike a Helmholtz resonator which has a narrow range of absorption, the Scopus Tuned Membrane Bass Trap has a broad absorption frequency range from 35Hz to 125Hz. Center frequencies are 40Hz, 70Hz, and 100Hz. It is a perfect addition to rooms that already have broadband control, but still require targeted control without absorbing above 125Hz. All this in a package that is as thin as 4 inches!
GIK Acoustics also offers the option to build the Scopus Tuned Membrane Bass Trap to target whatever center frequency is required for your needs (please email or call for pricing). For professional, targeted bass control, look no further than the GIK Acoustics Scopus Tuned Membrane Bass Trap series. Click HERE to view the product video.

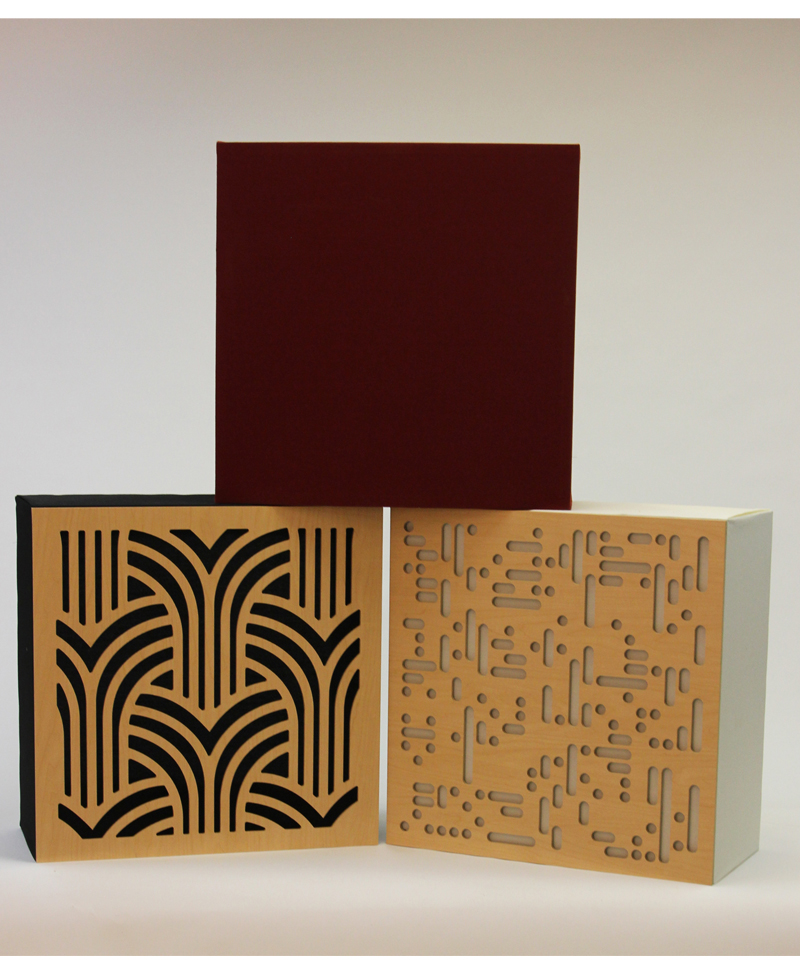

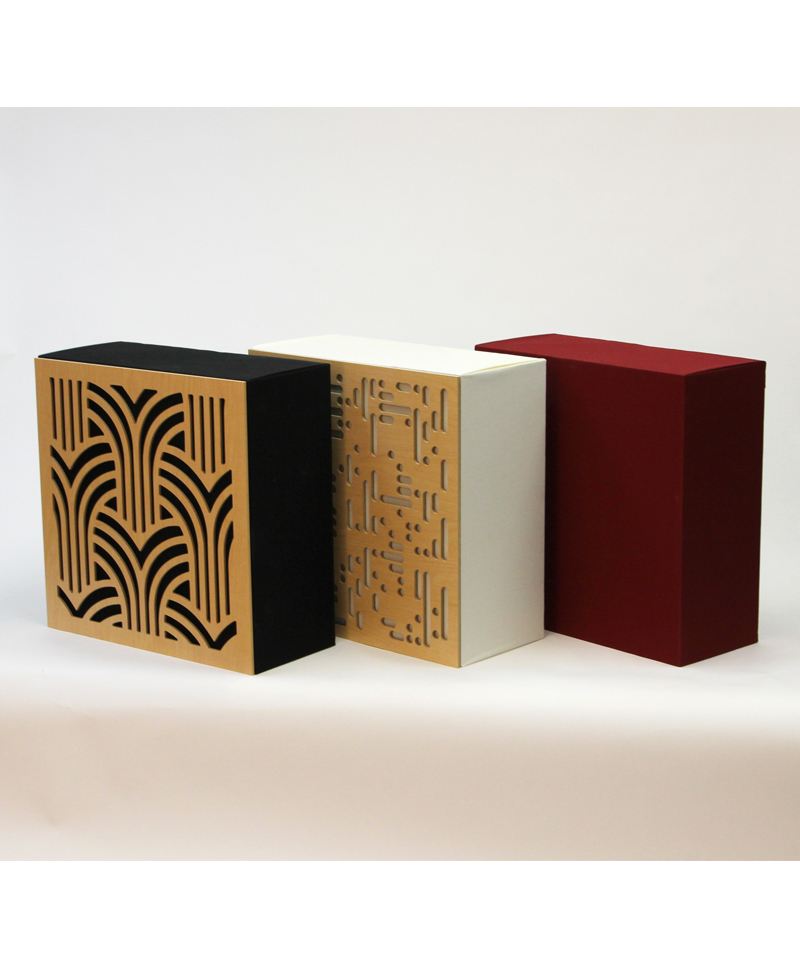

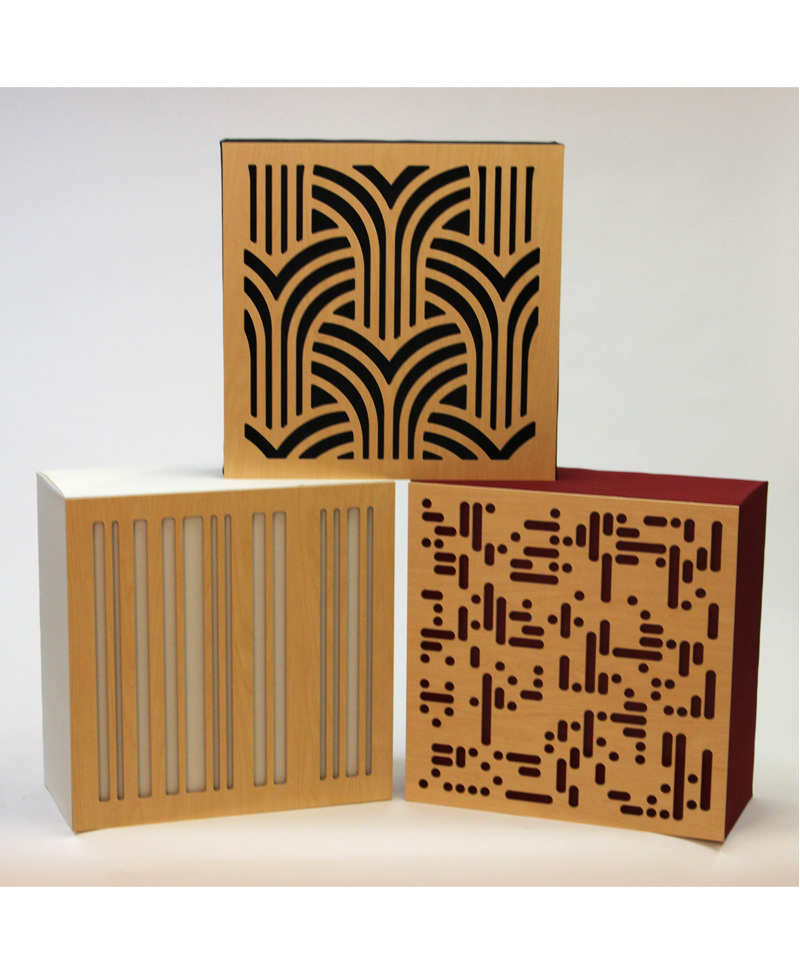

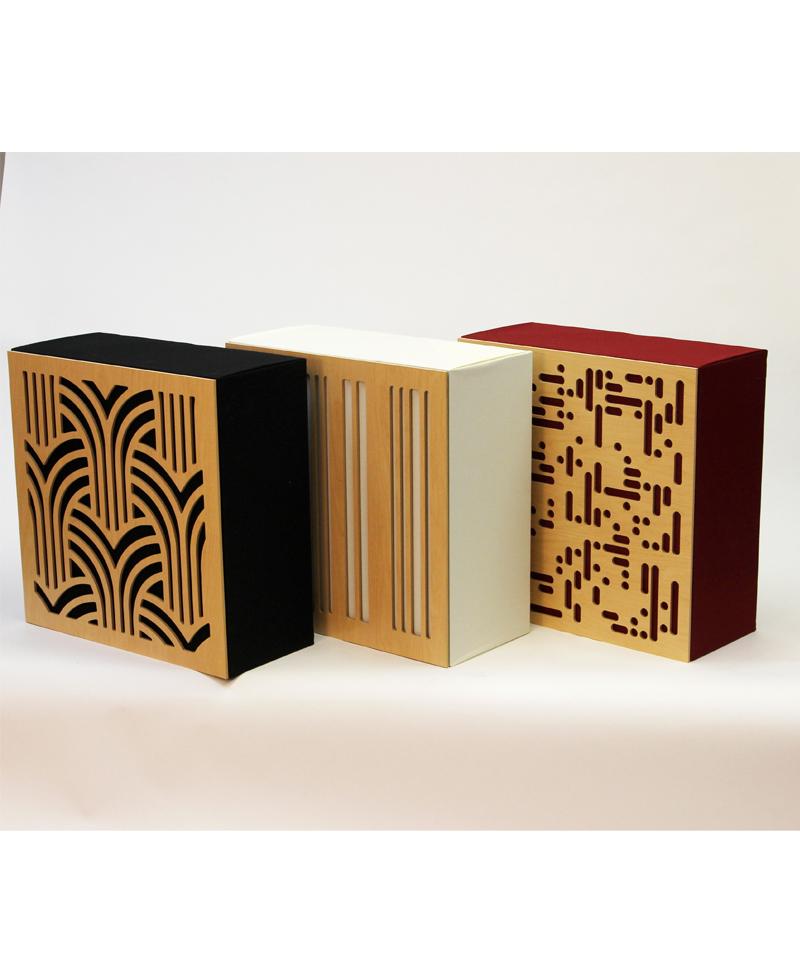

Incorporate diffusion in your Tuned Bass Trap with Impression Series or Alpha Series plates.
The addition of an Impression or Alpha Series plate helps diffuse/scatter high frequencies vs a direct reflection off the unit, plus it adds visual impact. The plate will not interfere with low end absorption at the desired frequency.
Impression Series plates available in 6 beautiful patterns:
Plate available in 5 attractive finishes:
Alpha Series plates available in three scattering options:
- One-Dimensional – The 1D option uses a mathematical sequence in a column that extends the length of the panel. The vertical slats of the 1D allow sound energy to be scattered in a horizontal plane.
- Two-Dimensional – The 2D options use a sequence of columns and rows with variable spacing that provides horizontal and vertical scattering of sound.
- 2D (a) has a pattern of dots and dashes
- 2D (b) has a pattern of dashes
Plate available in 5 attractive finishes:
GIK Acoustics Scopus Tuned Bass Trap Product Video
- This video provides information for the GIK Acoustics Scopus Tuned Bass Trap. Descriptions of size, color options, placement and construction are presented.
Bass Traps and Understanding Low Frequencies
- This video examines how low end frequencies move in a room and how bass traps can solve these problems.
Scopus Tuned Membrane Bass Trap Test Results
Certified lab tests have proven that the GIK Acoustics Scopus Tuned Membrane Bass Trap provides better sound quality than any other traps on the market.
Each Scopus Tuned Membrane Bass Trap comes with a heavy duty sawtooth hanger and two screws to affix the hanger to the frame.
GIK Acoustics panels are available in our 9 standard, quality GIK Acoustics fabric options at no additional charge.
9 STANDARD GIK ACOUSTICS FABRICS
You may select any of the following 9 stocked Guilford of Maine FR701 colors right off the web site or contact us for a quote on any Guilford of Maine FR701, Anchorage, or other fabrics.
9 STOCK GUILFORD OF MAINE COLORS
Upgrade the finish to Guilford of Maine FR701 or Anchorage fabrics for a nominal charge per panel.
|Product||Panel Size||Additional charge per panel|
|Spot Panel||Square (24” x 24”) or Narrow (12” x 48”)||$7.00|
|242 Acoustic Panel, 244 Bass Trap, Monster Bass Trap||Square (24” x 24”) or Narrow (12” x 48”)||$8.50|
|242 Acoustic Panel or Spot Panel||Rectangle (24” x 48”)||$15.00|
|244 Bass Trap or Monster Bass Trap||Rectangle (24” x 48”)||$20.00|
|Tri-Trap Corner Bass Trap||standard 47”||$20.00|
|Soffit Bass Trap||standard 46.5”||$30.00|
|Scopus Tuned Membrane Bass Trap||T100, T70, or T40||$25.00|
|FreeStand Acoustic Panel or FreeStand Bass Trap||standard 60”||$25.00|
|Screen Panel||standard 72”||$55.00|
|Evolution PolyFusor||standard 47”||$15.00|
See all Guilford of Maine FR701 colors here.
