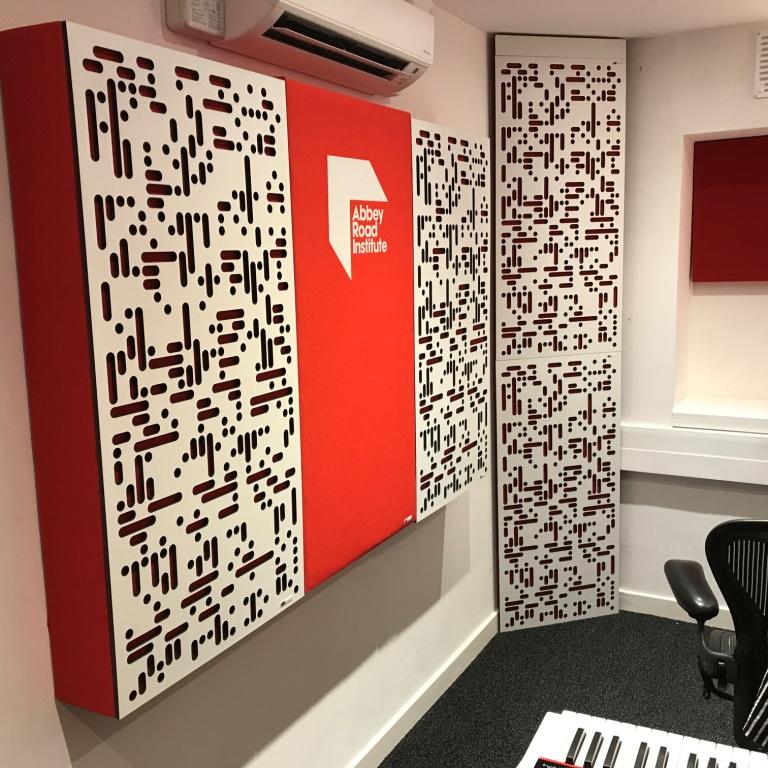

Abbey Road Institute Studio S6 GIK Acoustics Art Panels Alpha Series Panels and Corner CT Alpha Bass Trap

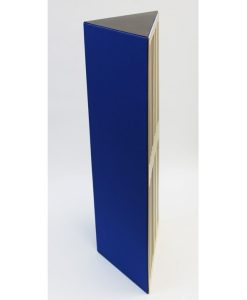

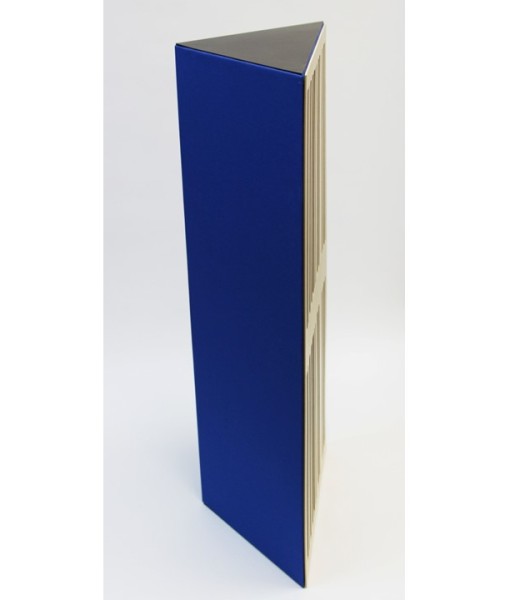

Corner Bass Trap CT Alpha Series by GIK Acoustics side view

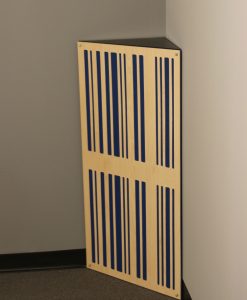

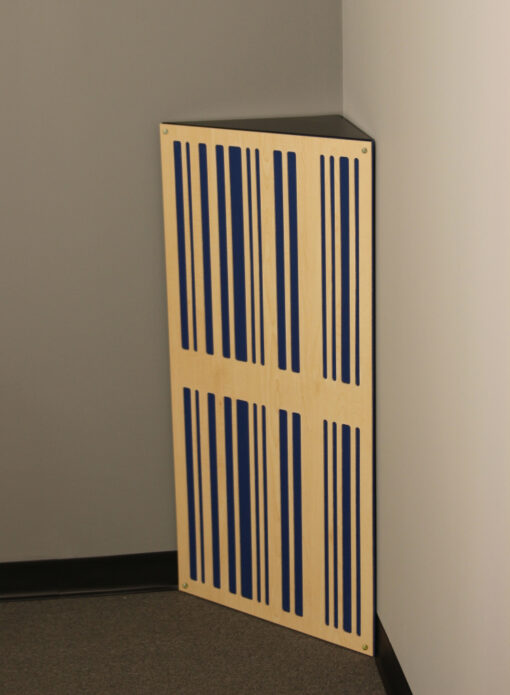

GIK Acoustics Corner CT Alpha Bass Trap in corner absorbing bass frequencies

CT Alpha Series Corner Bass Trap

Name: CT Alpha Series Corner Bass Trap
SKU: CTA
Price: 218.40 USD
Availability: InStock

Starting at $218.40 each, sold in pairs

Two units per box!
The GIK Acoustics Corner CT Alpha Bass Traps are corner sound absorbers and act as an effective and attractive solution to provide both absorption and diffusion for corner low frequency build up, in order to smooth out low to high frequencies.
Select Options & Buy

Shipping Info

We ship by the box to give you the best value. CT Alpha Corner Trap is packaged in pairs. If you wish to order a different quantity, please contact us to determine shipping rates.

Accessories

Subtotal
Options
Total

Build your own

Add to Wishlist

Technical Specs

Overview

Achieve an even decay time from low to high frequencies while providing the necessary absorption to flatten the frequency response by using corner sound absorbers with added diffusion.

Our Alpha Series panels are made with rigid fiberglass absorption material wrapped in your choice of fabric, and finished with an attractive plate which has a mathematical sequence of slots for either one-dimensional scattering/diffusion or two-dimensional scattering/diffusion

Panel core made from 100% recycled materials, environmentally friendly, no formaldehyde or urea formaldehyde

Specs

Core

Rigid fiberglass provides twice the low end absorption over similar foam-based products.

Design

Top and bottom caps available in wood veneer to match plate selection: Blonde, Black, White, Grey Elm (upgrade), or Mahogany (upgrade)

Thin face plate has mathematical sequence of slots for spatial diffusion, but also allows low frequency waves to pass through to the fiberglass panel for low end absorption.

Weight

15lbs

NRC

1.05 (versus foam products where NRC = 0.4)

Construction

Class A fire rated – Click HERE for Fire Rating test results

ECOSE® technology absorption material

Quality hand-made construction and craftsmanship

Standard Sizes

23” front face x 16″ x 16″ sides and 45.5” tall

Suggested Placement

Designed to fit in any corner, also known as corner sound absorbers.

Low end sound waves reflect off walls, floors, and ceilings yet collect in corners where the boundaries meet. The amount of bass in one corner can vary from the amount of bass buildup in another due to things like monitor and subwoofer placement as well as room structure.

Plates

Pattern

1D option

Uses a mathematical sequence in a column that extends the length of the panel. The vertical slats of the 1D allow sound energy to be scattered in a horizontal plane.

2D options

2D (a) has a pattern of dots and dashes
2D (b) has a pattern of dashes

Uses a sequence of columns and rows with variable spacing that provides horizontal and vertical scattering of sound. Additional $20 each for Square panels and $30 each for Rectangle panels.

High performance hard fiberglass material effective down to 75Hz

6″ Purebond* wood frame resists warping

Binary Sequence for true random scattering

FINISHES AND FABRICS

Plates available in Blonde Beech veneer, Nordic Gray veneer, Walnut veneer, and black or white veneer.

Blonde Beech

Nordic Gray

Walnut

Black

White

15 STANDARD GIK ACOUSTICS FABRICS

Fabric covered panels are available in our 15 standard, quality GIK Acoustics fabric options at no additional charge.

Purple

Charcoal

Maize

Tan

Beige

Georgia Peach

Black

Pure White

Burgundy

Off-White

Hunter Green

Gray (a.k.a. Light Gray)

Bright Red

Coffee

Bright Blue

9 STOCK GUILFORD OF MAINE COLORS

Upgrade the finish to Guilford of Maine options for a nominal charge per panel.

You may select any of the following 9 stocked Guilford of Maine colors right off the web site for a nominal charge per panel or contact us for a quote on any of the other Guilford of Maine FR701, Anchorage or other fabrics.

Baltic 153

Ultramarine 470

Black 408

Bone 748

Chocolate 793

Coin 794

Deep Burgundy 556

Medium Grey 298

Silver Papier 538

MORE RESOURCES

Fabric selection and why you should never rely solely on the computer image Read article from Guilford of Maine All Guilford of Maine FR701 Colors Order color swatch book with fabric samples $15.00

Product	Panel Size	Additional charge per panel
Spot Panel	Square (24” x 24”) or Narrow (12” x 48”)	$7.00
242 Acoustic Panel, 244 Bass Trap, Monster Bass Trap	Square (24” x 24”) or Narrow (12” x 48”)	$8.50
242 Acoustic Panel or Spot Panel	Rectangle (24” x 48”)	$15.00
244 Bass Trap or Monster Bass Trap	Rectangle (24” x 48”)	$20.00
Tri-Trap Corner Bass Trap	standard 47”	$20.00
Demi Tri-Trap Corner Bass Trap	standard 23.5”	$15.00
Soffit Bass Trap	standard 46.5”	$30.00
Scopus Tuned Membrane Bass Trap	T100, T70, or T40	$25.00
FreeStand Acoustic Panel or FreeStand Bass Trap	standard 60”	$25.00
Screen Panel	standard 72”	$55.00
Evolution PolyFusor	standard 47”	$15.00

Guilford of Maine FR701 Colors Order color swatch book with fabric samples $15.00

GIK Acoustics Corner CT Alpha Bass Trap

The tests were carried out in the large reverberation room at the University of Salford (Manchester England). The room has been designed with hard surfaces and non-parallel walls to give long empty room reverberation times with uniform decays.

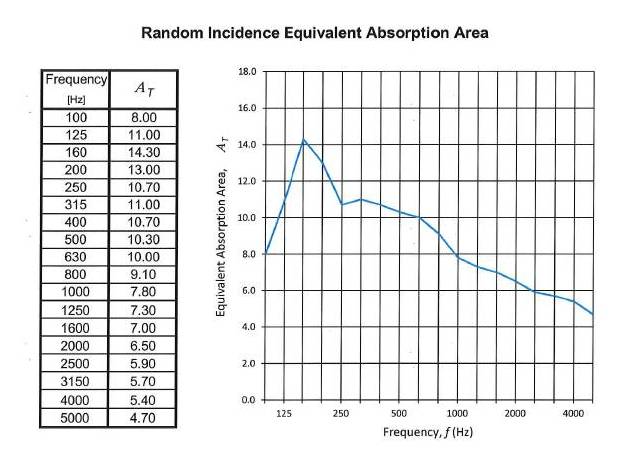

Corner CT Alpha Bass Trap Coefficient Results

Salford Test Results Corner CT Alpha Bass Trap

The GIK Acoustics Tri-Trap Corner Bass Trap© and Corner CT Alpha Bass Trap are intended to be freestanding or stacked floor-to-ceiling. However, if you wish to mount a Tri-Trap or Corner CT in a wall-to-wall corner, we recommend using L brackets on the side walls so the bass trap sits atop the bracket like a shelf. Note that you can’t drill into the Tri-Trap or Corner CT frame.

The Tri-Trap and Corner CT can also be mounted in the wall-to-ceiling corners using four L brackets: two placed on the ceiling and two placed on the wall to hold the bass trap into place. See the following examples in composer/producer Mike Plas’s studio. (See the full spotlight on Mike’s studio here.)
