Performance You Can Trust

Every GIK product is tested at the world-renowned University of Salford, following BS EN ISO 354:2003 standards. This scientific approach not only ensures complete transparency in how our products perform, but also drives our R&D process. So every panel, bass trap, or diffuser we release is engineered to deliver results you can trust.

Product Description

Specifications

• Root Sequence: 7

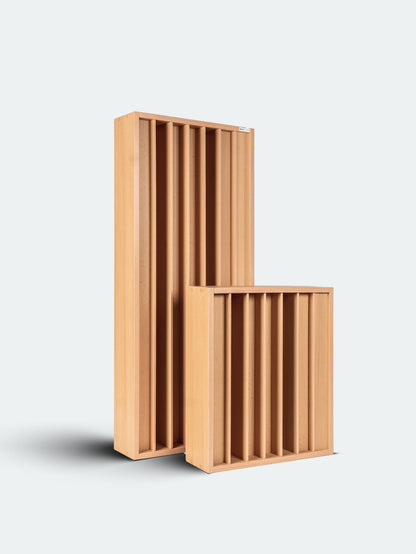

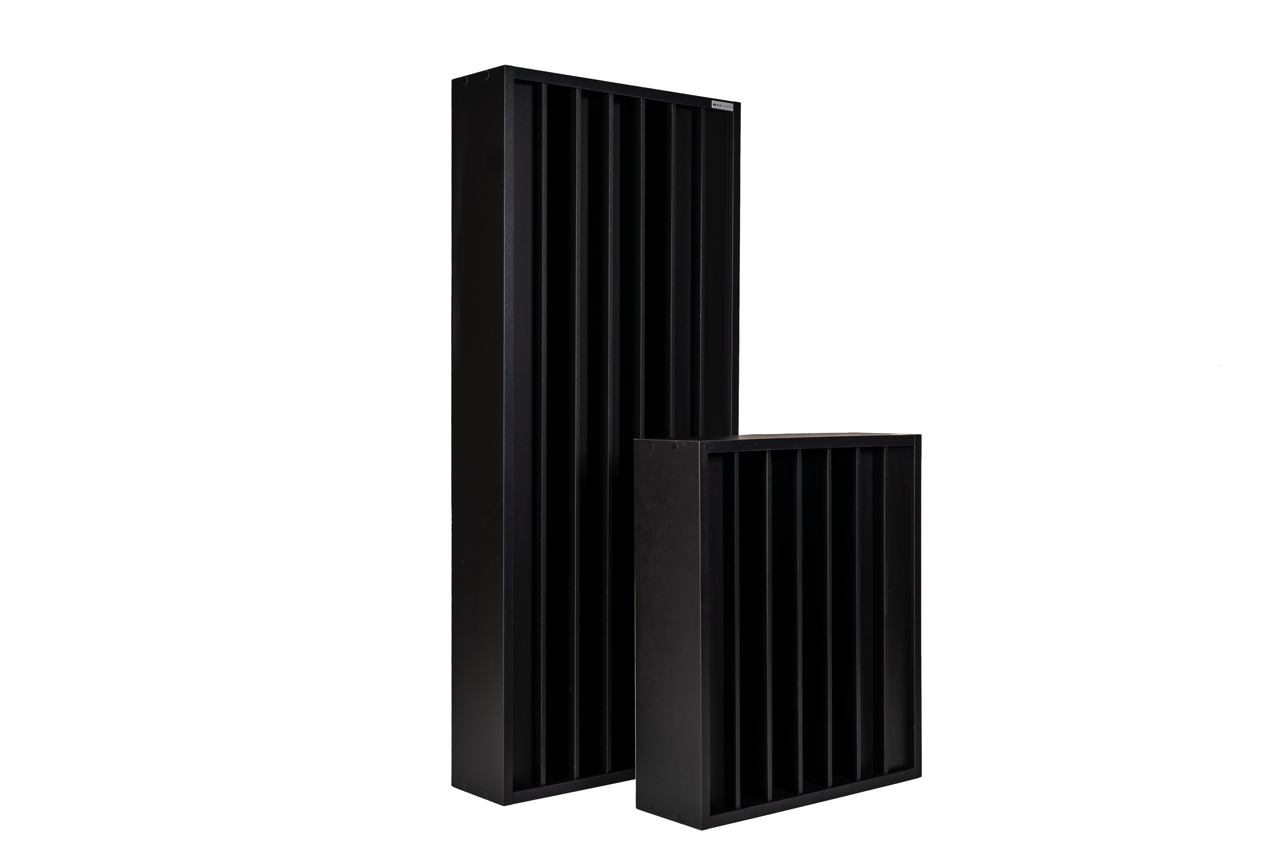

• Size: 50x117x16cm | 19.7x45.9x6.22in

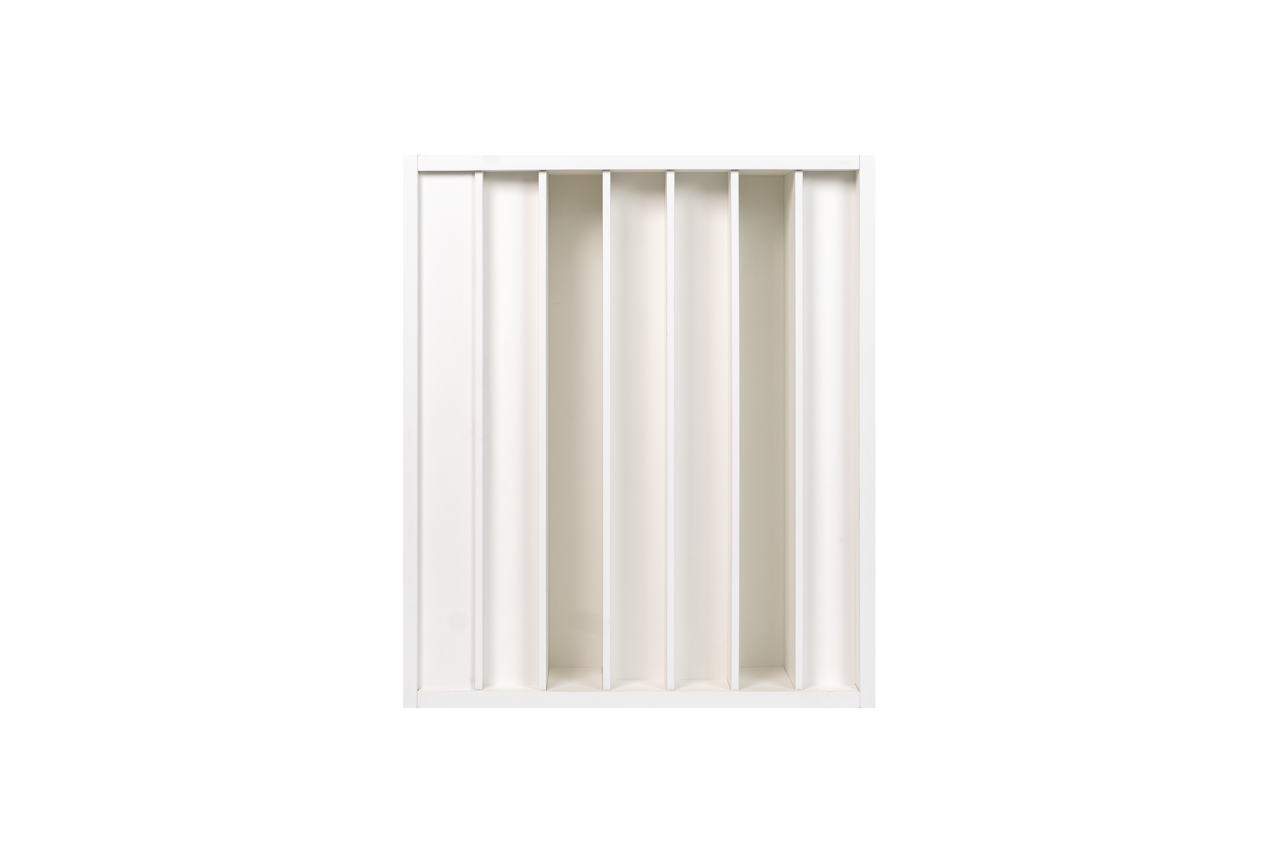

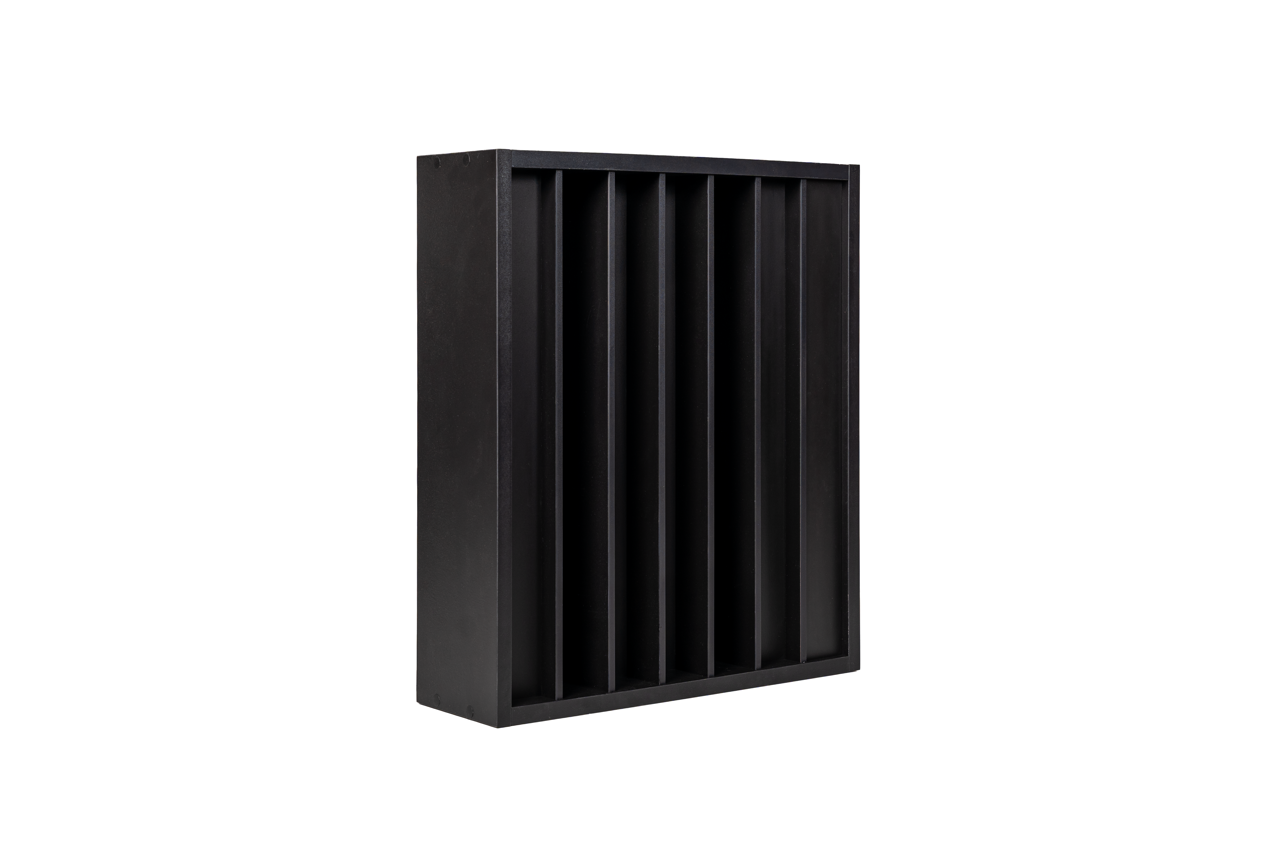

• Demi version: 50x58x16cm | 19.7x22.9x6.22in
• Weight: 9-18 kg | 23-39 lbs

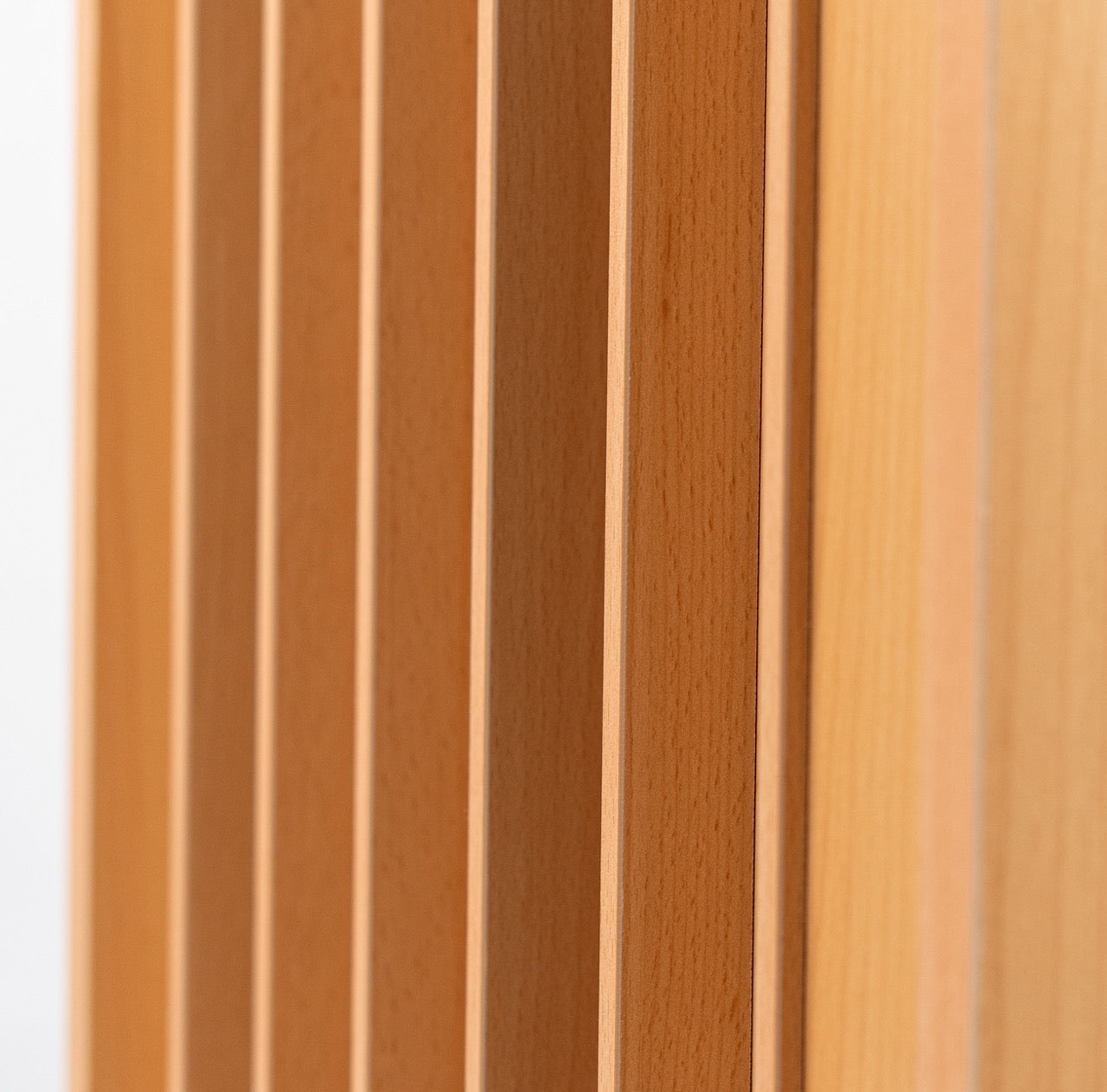

• Material: High-quality wood laminate, CNC machined

Materials
Camira Cara Fabrics

GIK is excited to use the Camira Cara fabric line standard in all our products. The Camira fabric will look familiar to fans of Guilford of Maine fabrics, similar to their FR701 line but with different color options. With a richer aesthetic and tactile feel and wider range of available colors compared to our previous standard offerings, Camira Cara allows every product to look as good as it performs.

Sustainability

GIK Acoustics has long prioritized sustainability as a guiding principle. We carefully select materials that balance acoustic performance with environmental responsibility, sourcing from suppliers who share our commitment to reducing waste and carbon impact. Our products use durable, recyclable components that minimize landfill waste while maintaining the highest acoustic standards.

Health & Safety

Health and safety are built into every GIK product. All materials—including fabrics, cores, and wood elements—are formaldehyde-free, low-VOC, and independently tested for indoor air quality. This ensures our treatments are safe for studios, homes, schools, and offices alike. We believe superior acoustics should never come at the expense of well-being, which is why our products are made with clean, non-toxic materials that protect both the people who use them and the spaces where they’re installed.

Care Instructions
Camira Cara Fabric

Vacuum regularly. Wipe with a damp cloth using soap and water or use proprietary upholstery shampoo. For deeper cleaning use bleach or alcohol.

Veneer Finishes

Clean with a soft cloth or soft brush, lightly dampened with kukewarm PH-neutral, soapy water. Do not use solvents or chemical cleaners, but cleaning can be done with alcohol-based cleaners. Finally, wipe with a damp cloth afterward.

Classic 1D Diffusion

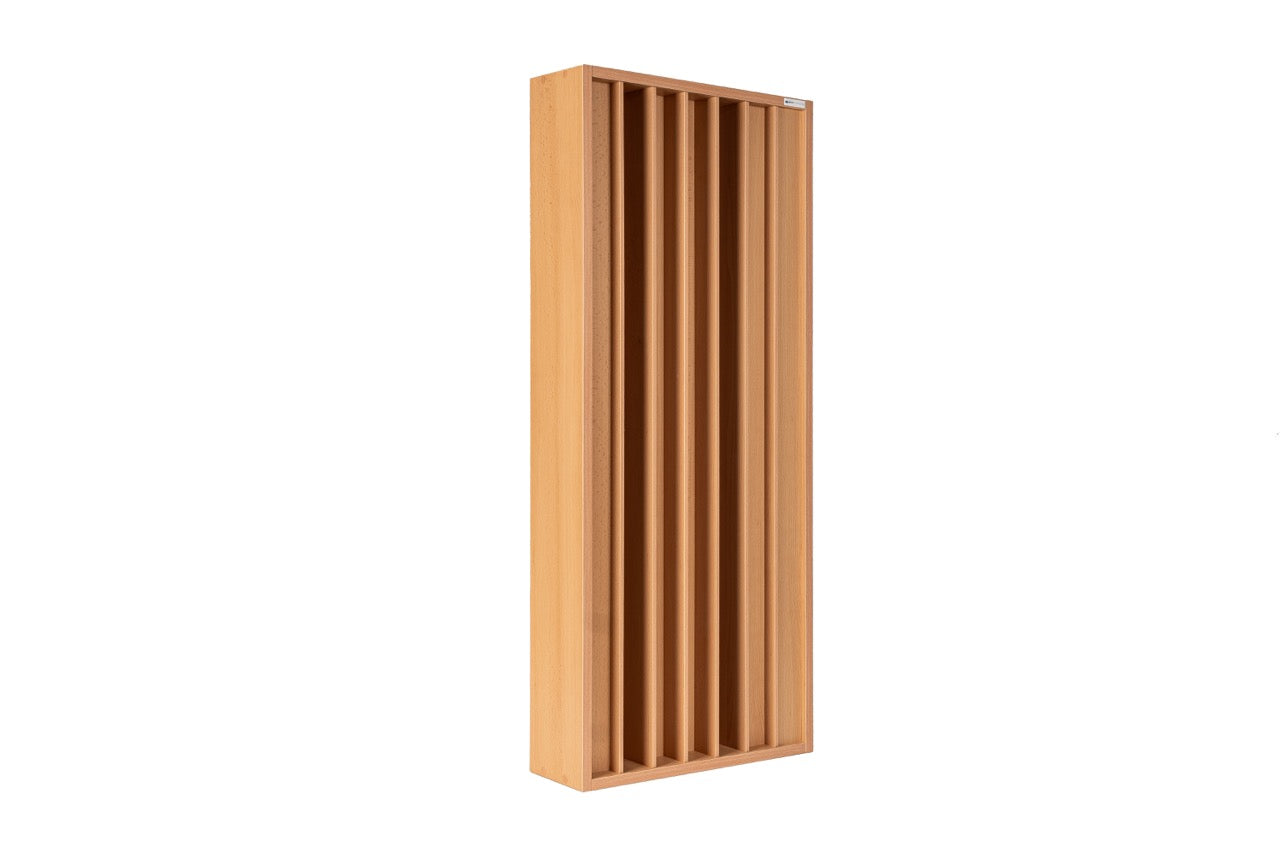

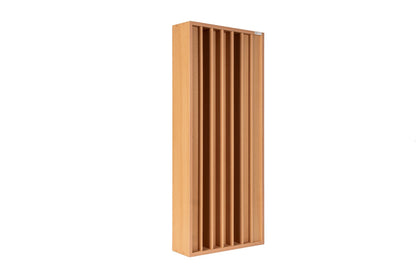

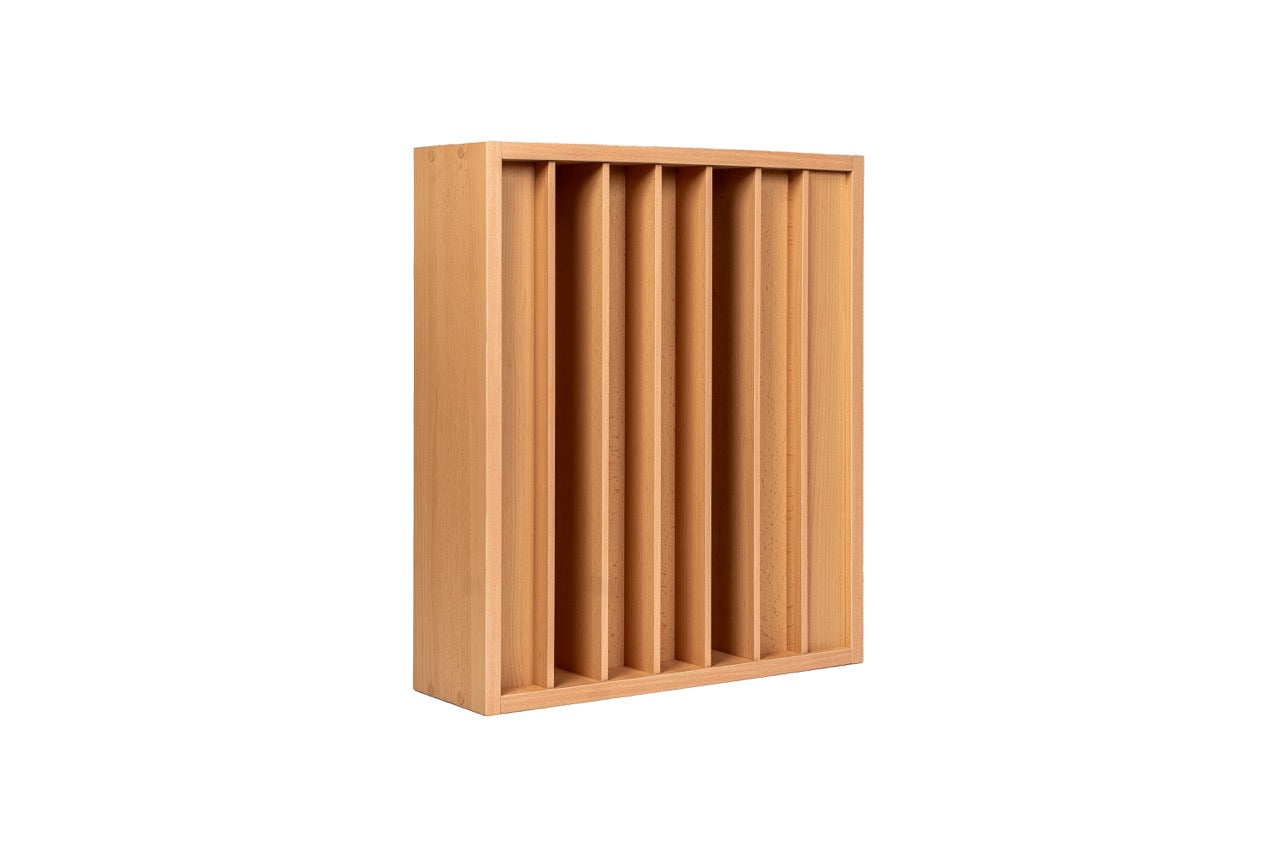

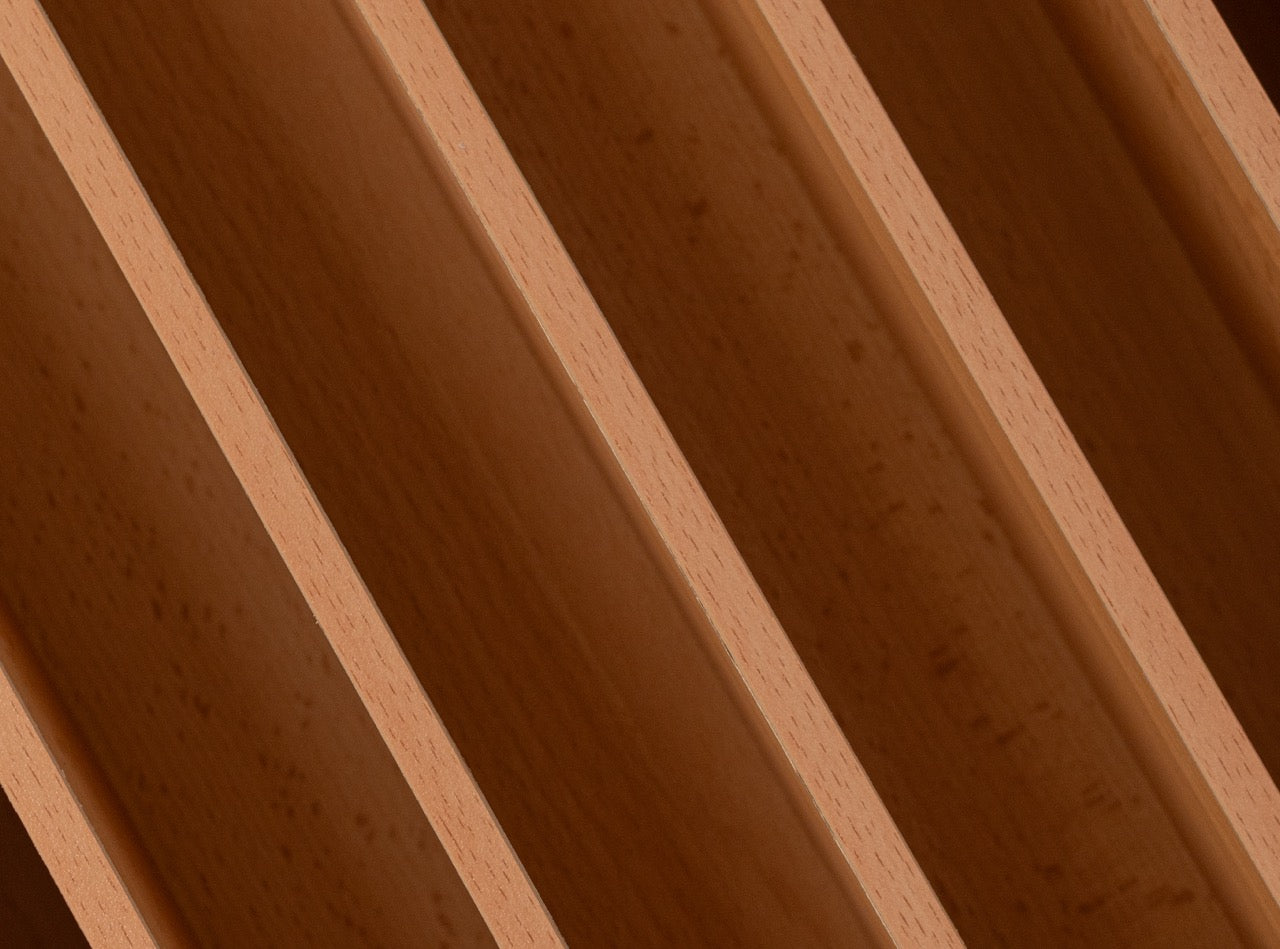

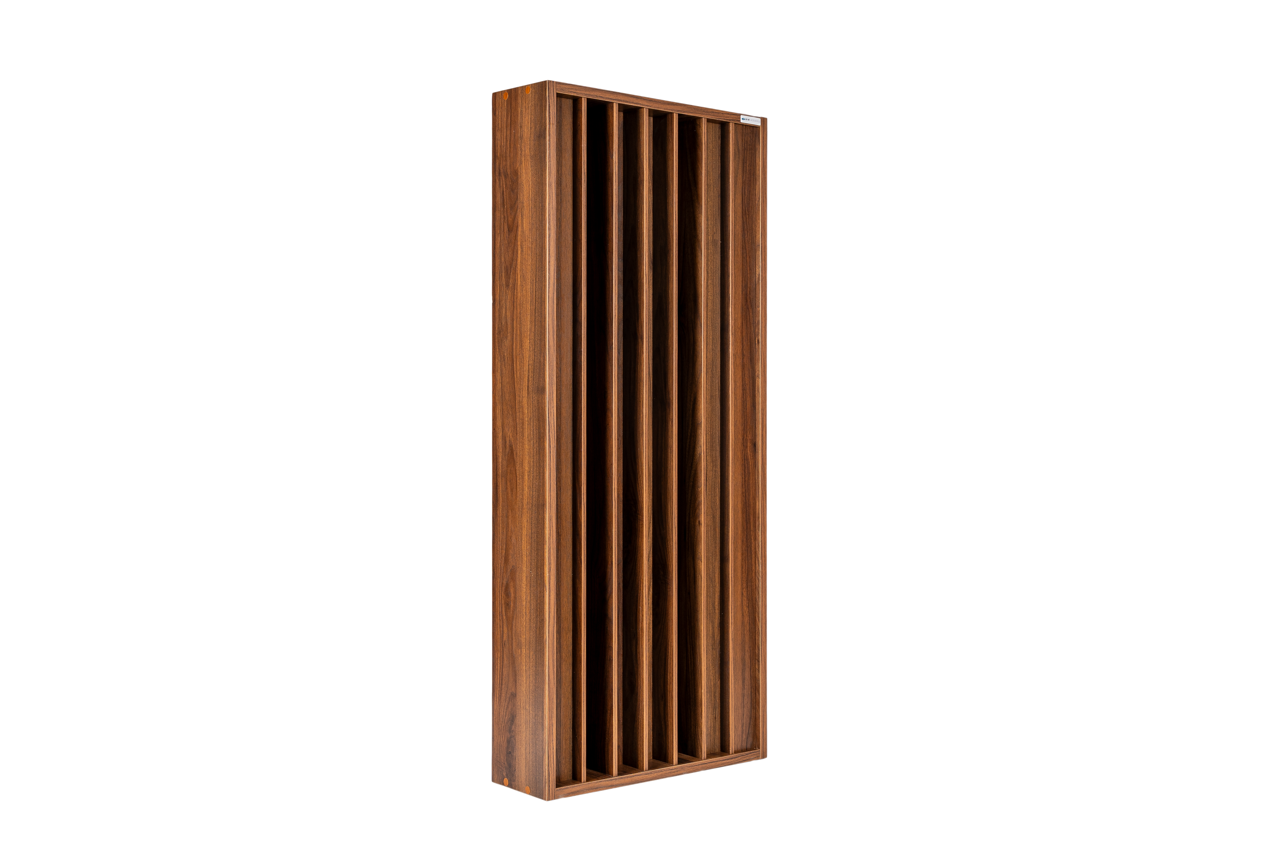

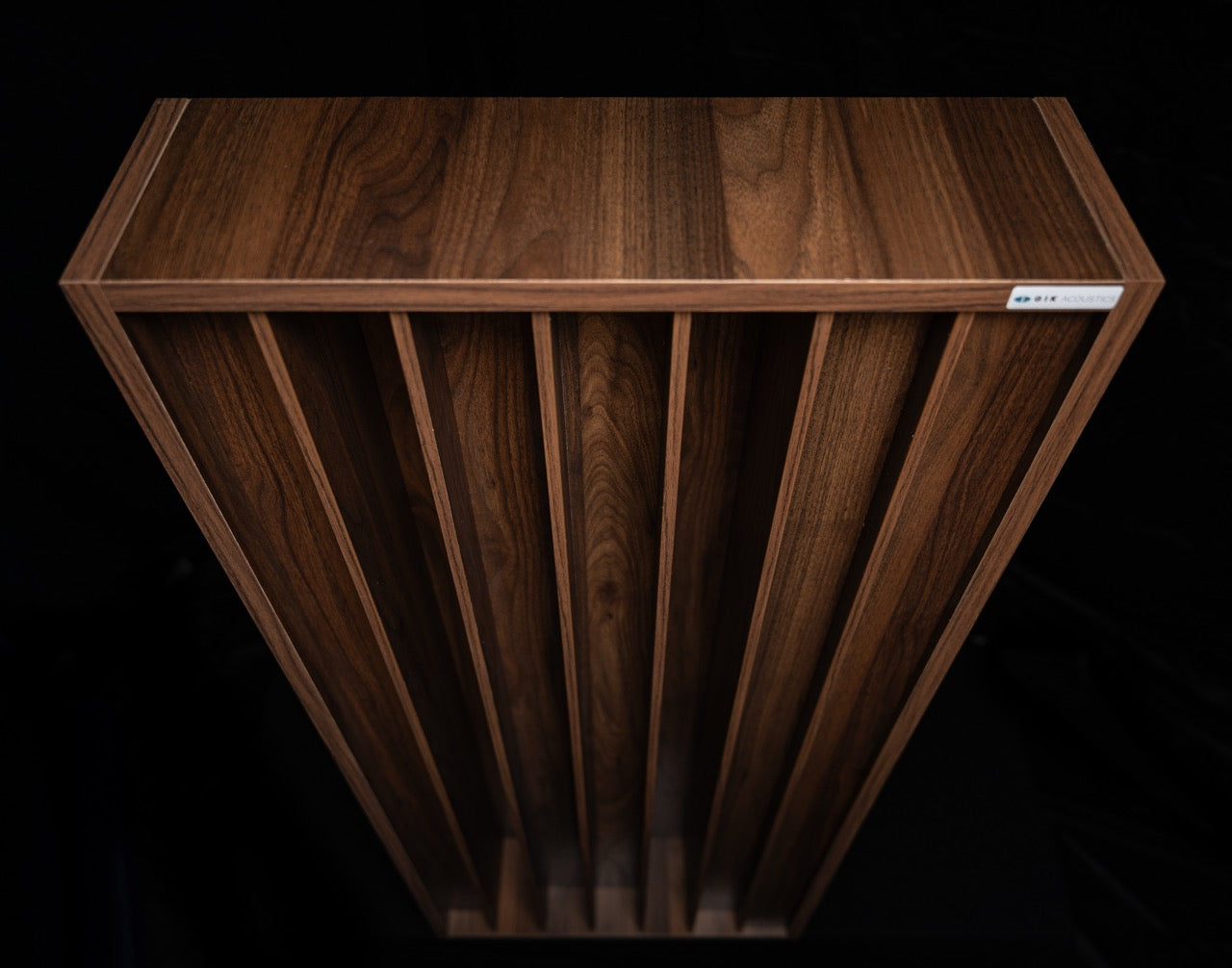

The GIK Acoustics Q7D Diffuser is a performance-driven, architecturally elegant diffusion tool for any critical listening environment. Its one-dimensional quadratic design is based on a 7-root prime number sequence, which evenly scatters sound beginning around 350 Hz and continuing well into the high frequencies, with scattering effects extending to 7 kHz. The well depths are CNC-cut from high-quality wood laminates to ensure tight tolerances and consistent performance.

Efficient, High Performance Diffusion

With its wider wells, the Q7D creates a spacious, blended sound field that reduces flutter echo and specular reflections without absorbing energy. It’s particularly well suited for:

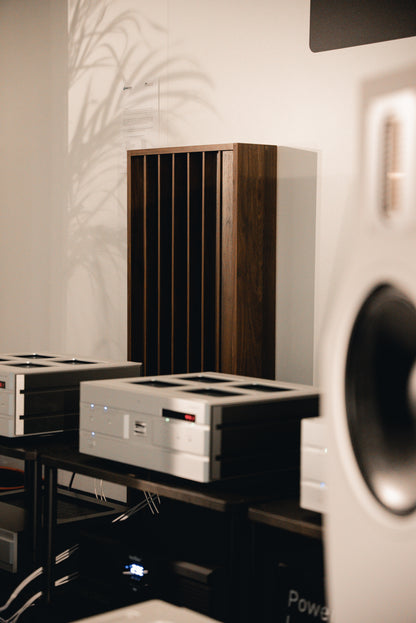

• Rear walls in control rooms and listening rooms
• Behind dipole speakers on the front wall
• Live tracking rooms where acoustic instruments and drums need natural liveliness
• Side walls near the listening position for enhanced spatial depth

Applications

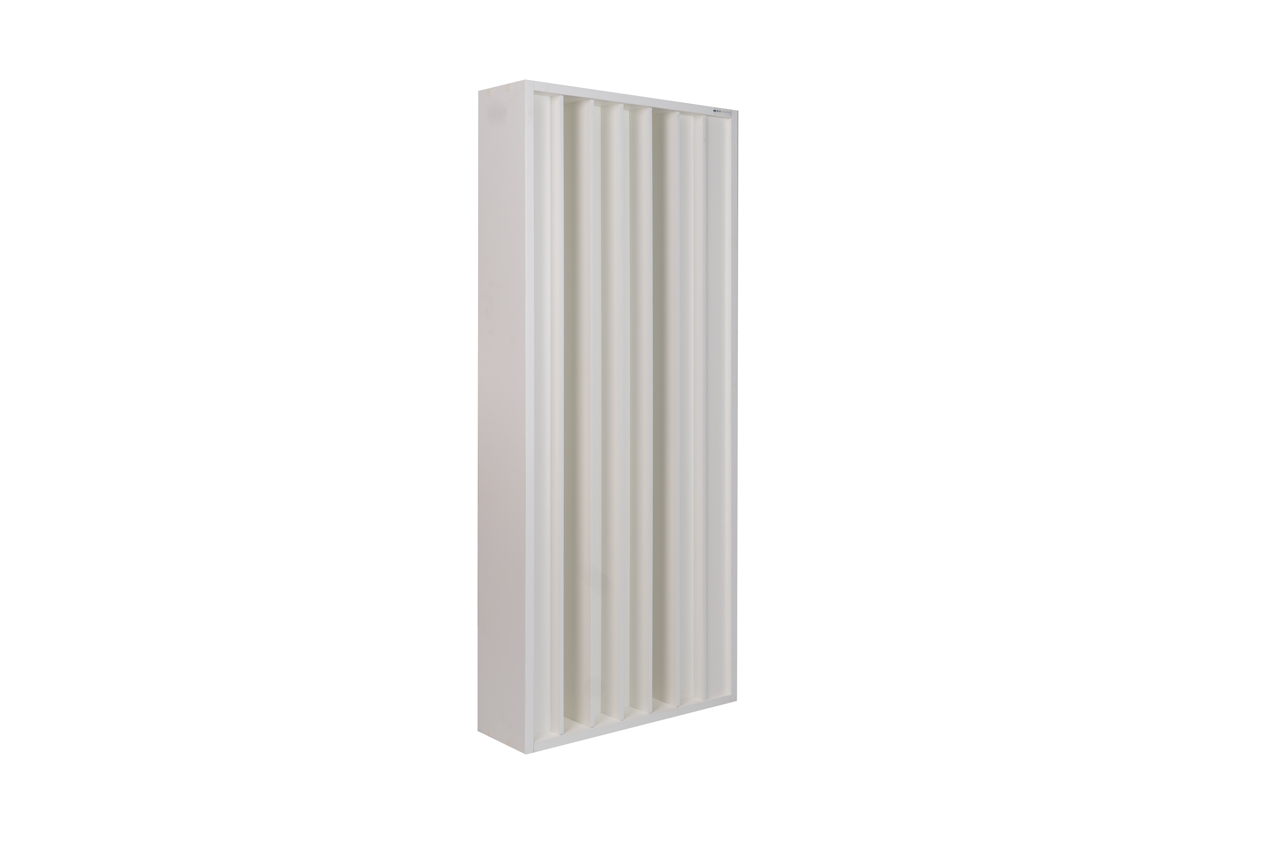

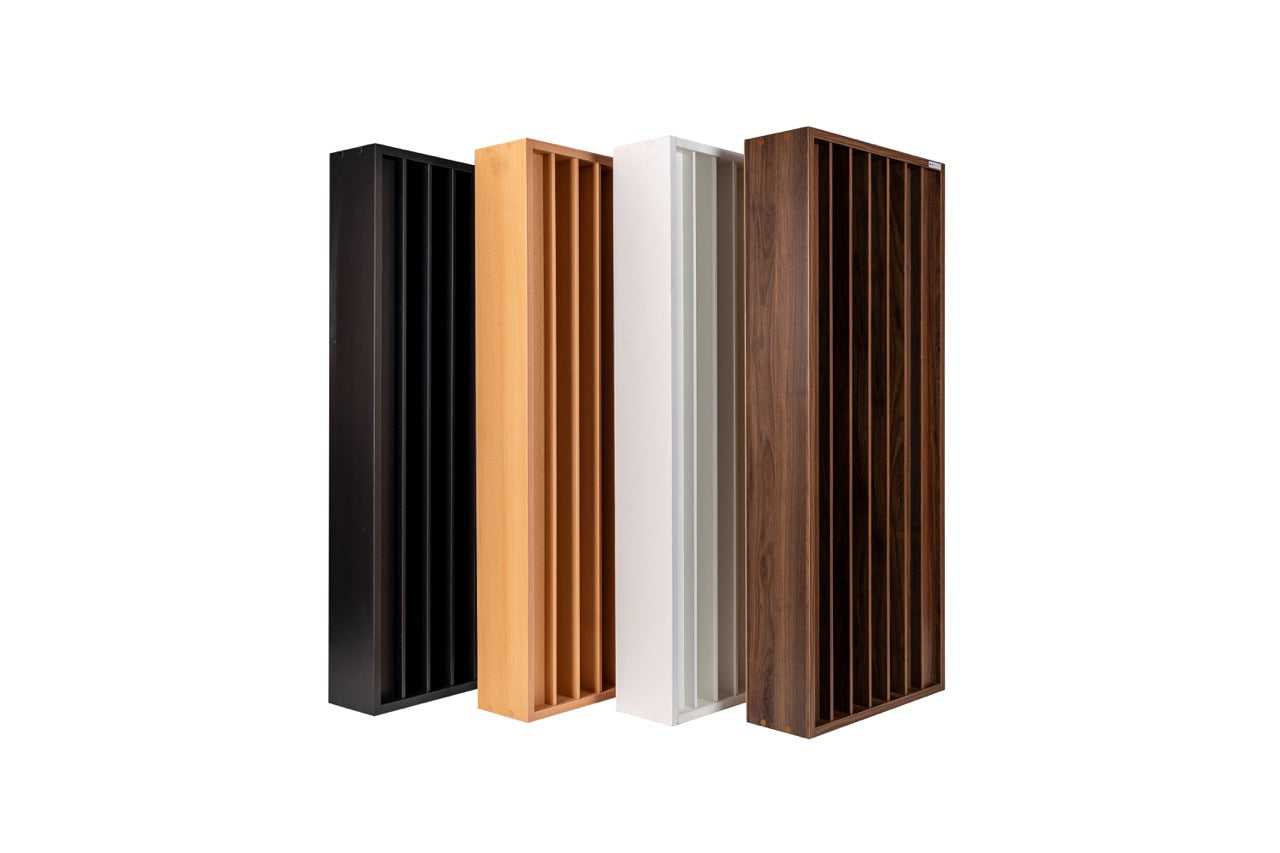

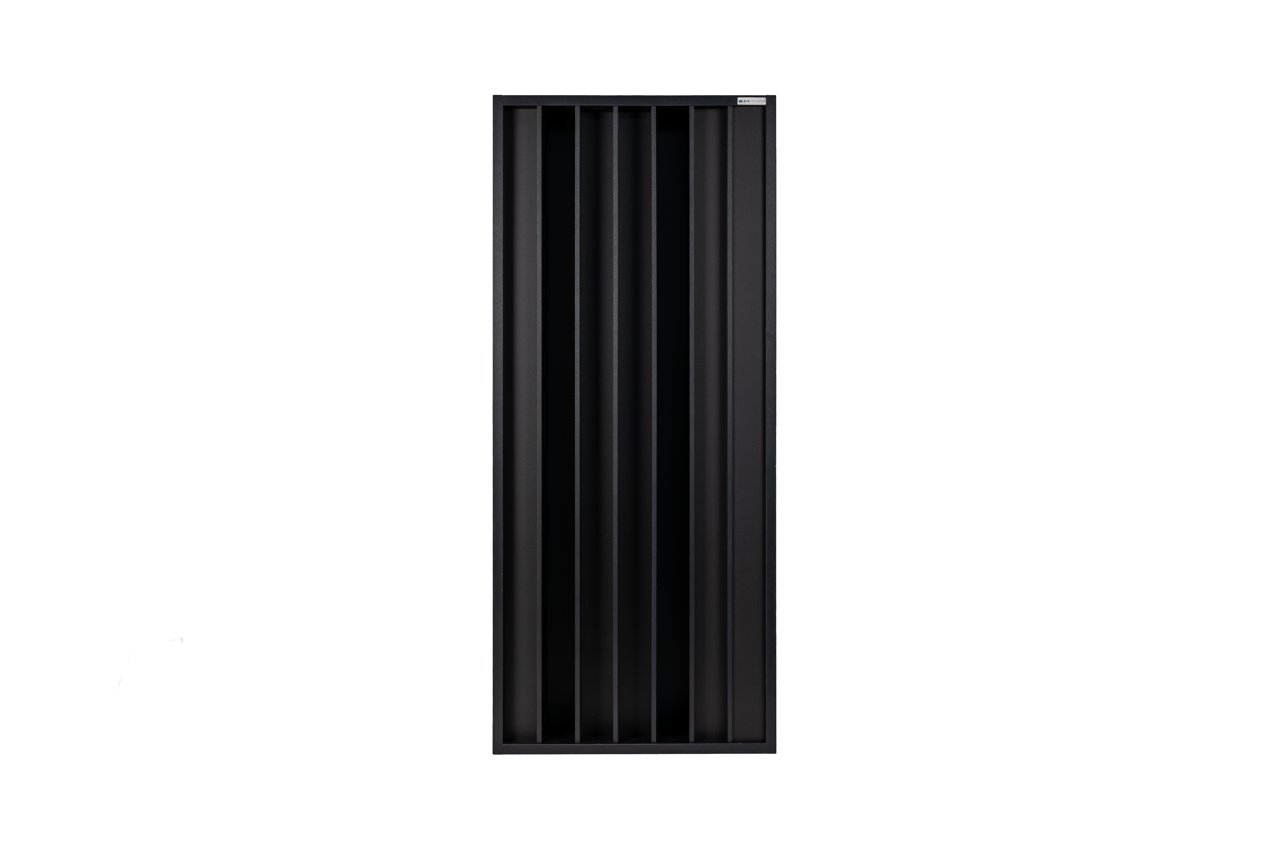

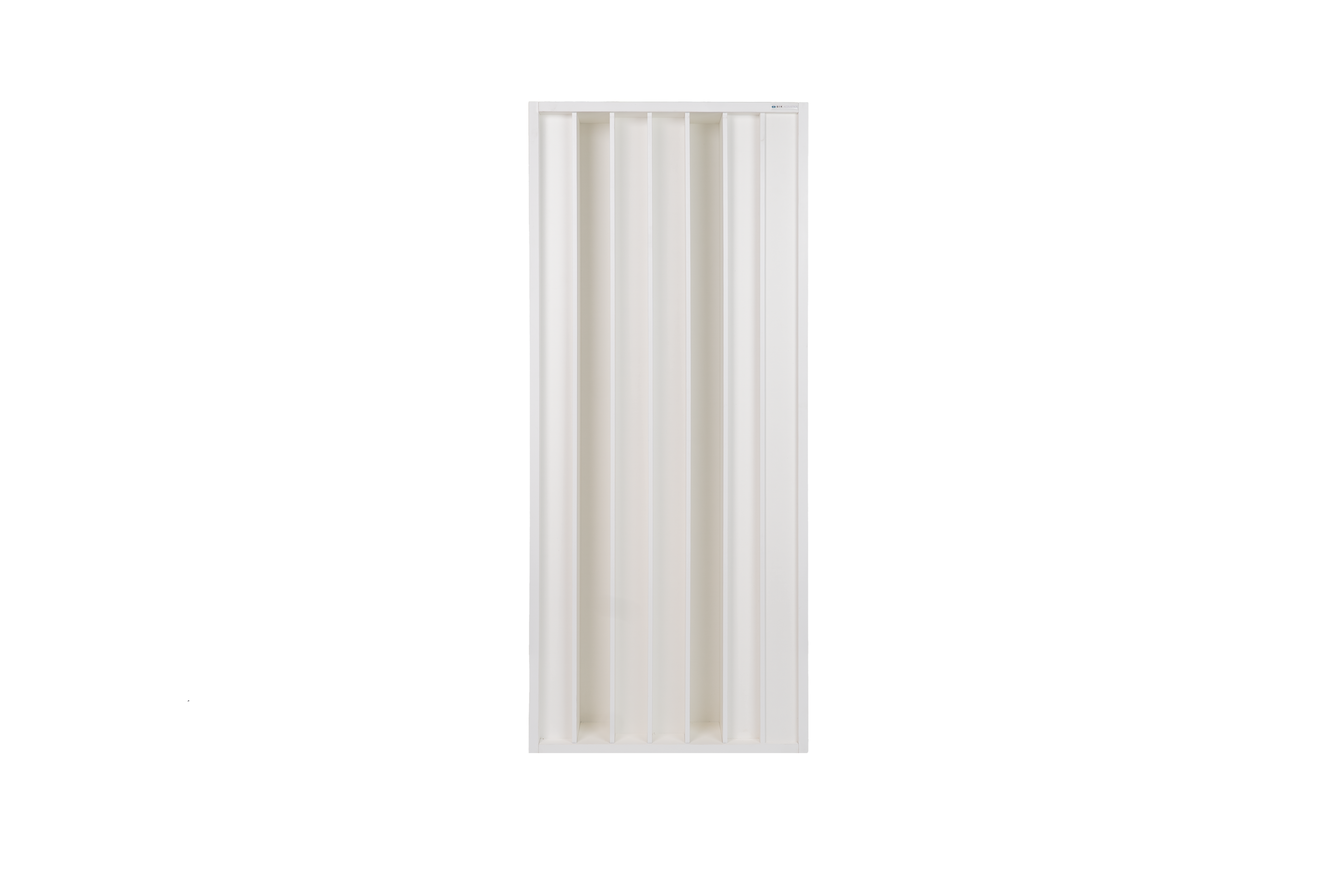

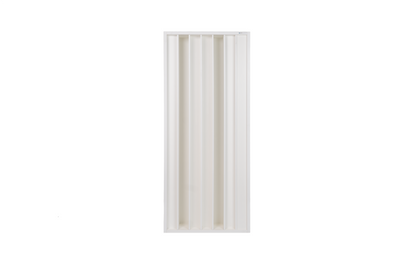

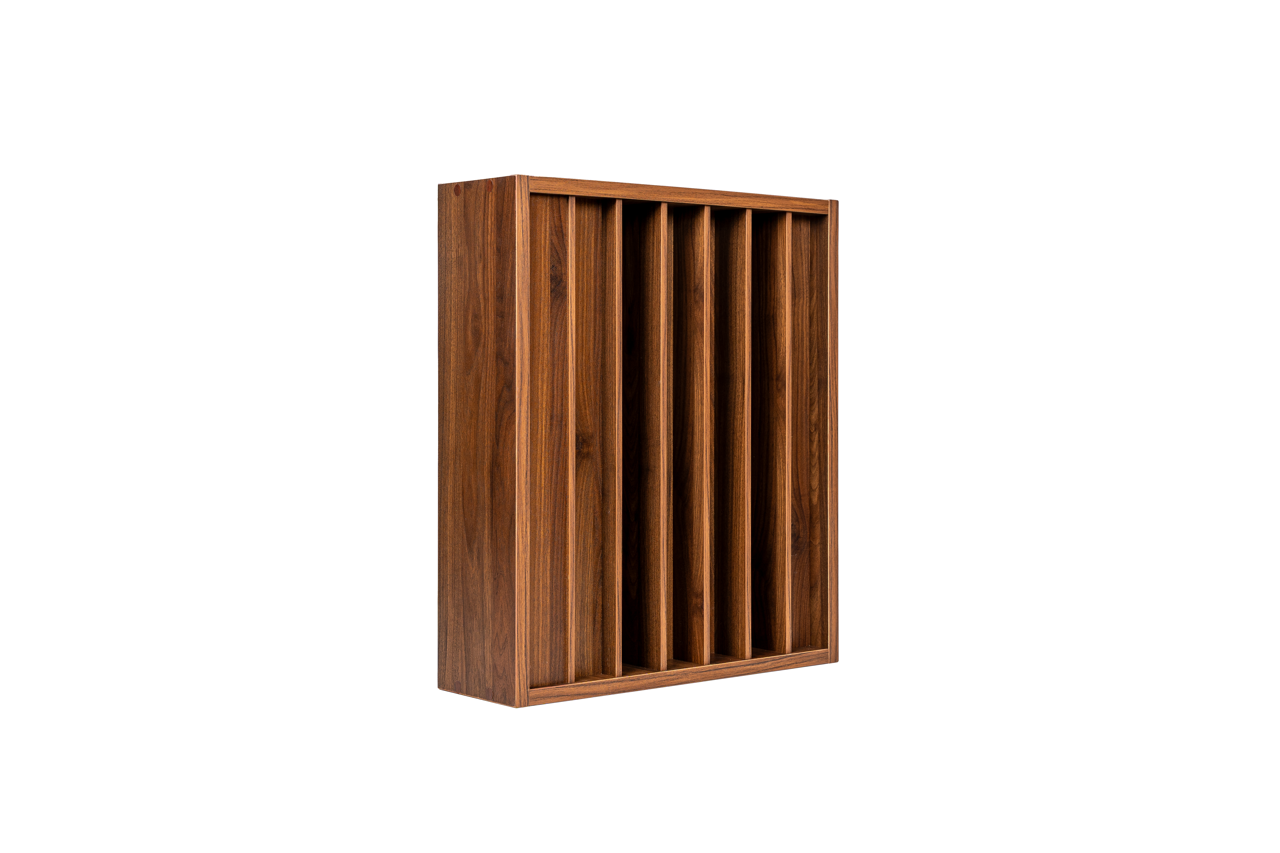

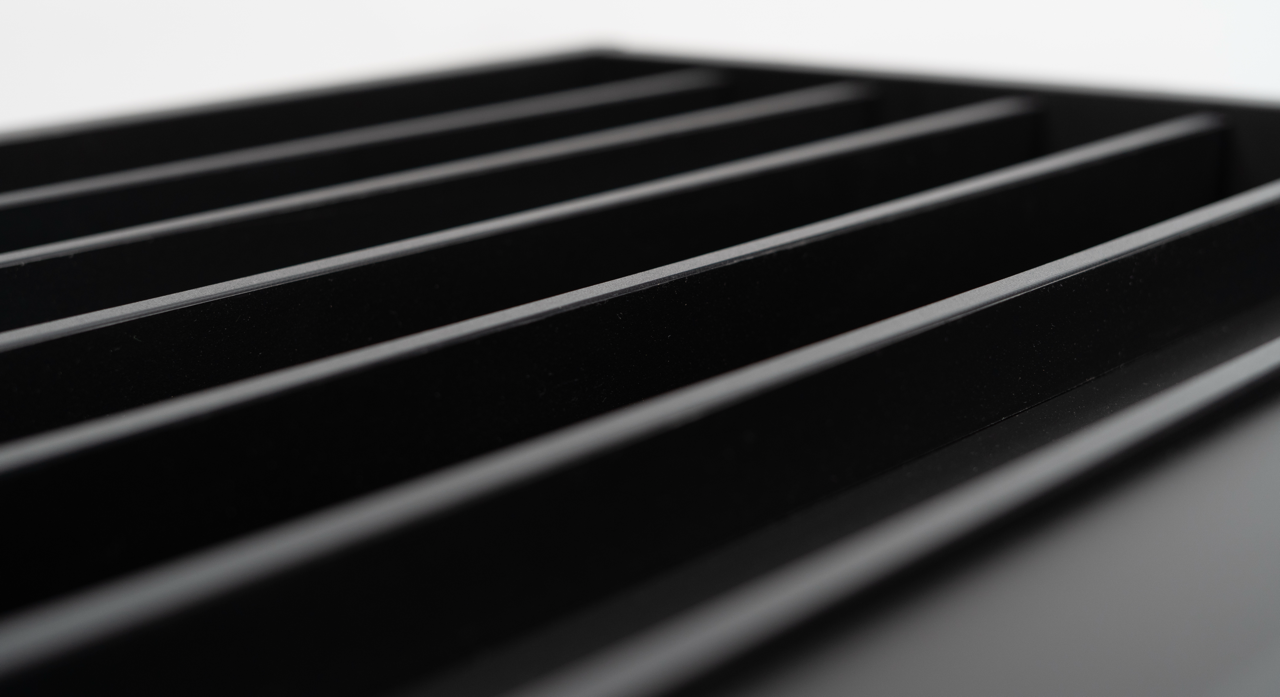

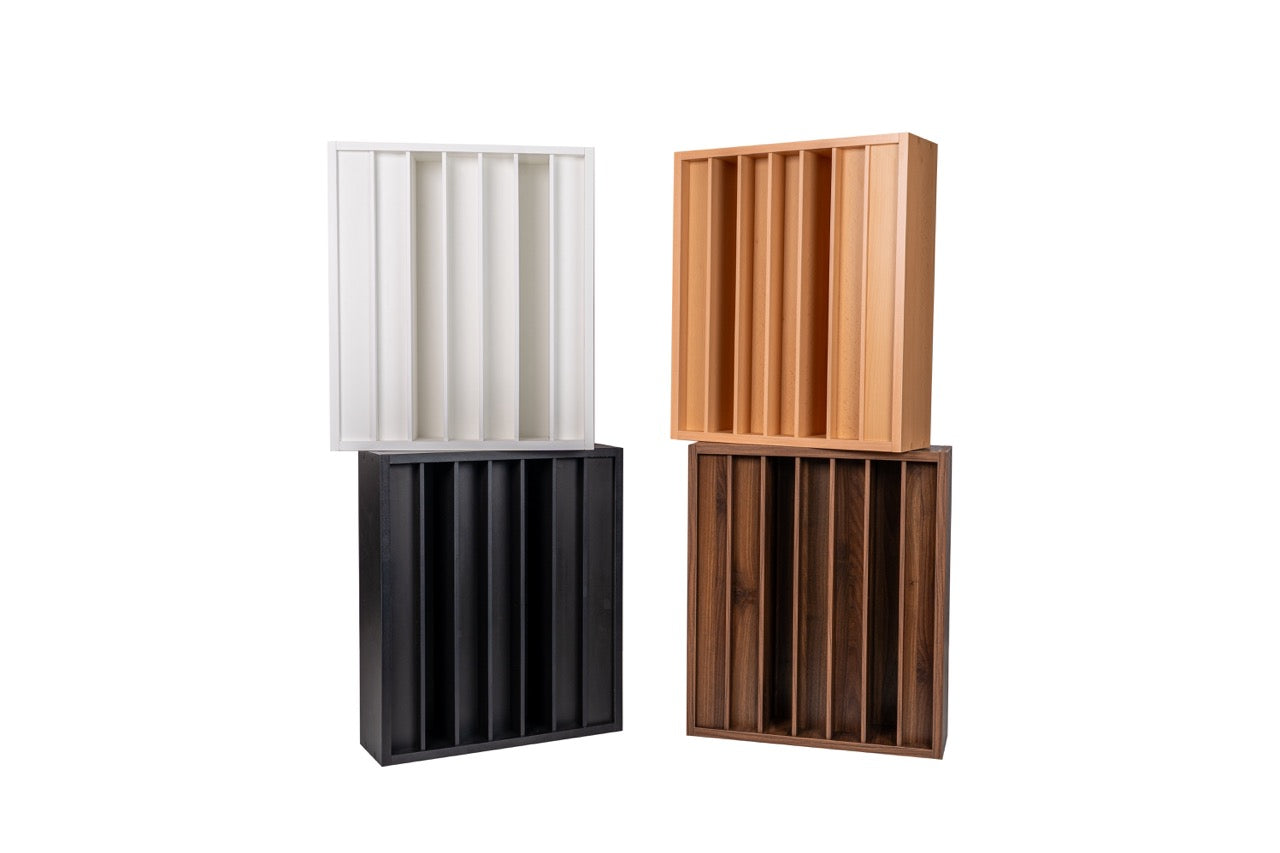

Whether you're refining a mastering studio, improving a home theater, or optimizing a live room for clarity and realism, the Q7D is an ideal diffusion solution. Available in Midnight, Walnut, Sand, or Blizzard finishes to match any aesthetic.

The Definitive Rear Wall Treatment

1D diffusion, along with thick bass traps, is a classic rear wall treatment strategy for control rooms, listening rooms, and home theater. Both together allow you to balance world-class sound in serious spaces.

FAQ

What is the Q7D?

The Q7D is a classic 7-root quadratic diffusor that scatters sound evenly across a wide frequency range. Its solid wood construction not only makes it durable but also visually striking, adding both acoustic function and a premium look to your space.

Where should I place the Q7D in my room?

Common placements include the rear wall, or rear side walls of studios, control rooms, and listening spaces. These areas benefit most from diffusion to break up strong reflections and create a more spacious, natural sound.

How does the Q7D differ from absorbers or hybrid panels?

Absorbers reduce energy by soaking up reflections, while the Q7D keeps energy in the room but scatters it evenly. This prevents flutter echoes and comb filtering, keeping a sense of liveliness and dimension.

Can I combine the Q7D with other GIK products?

Yes. The Q7D works especially well alongside broadband absorbers and bass traps. Using them together gives you a balance of decay control and spaciousness, ensuring accurate yet engaging acoustics.
