How Thick Should Acoustic Panels Be?

The short answer to how thick an acoustic panel should be depends entirely on the frequencies you need to control. For basic speech clarity in an office or hallway, a two-inch panel is the effective minimum to manage the mid-range reflections that compromise intelligibility. However, for music studios, home cinemas, or any room where accurate sound is a priority, thickness is your primary tool for fixing the most severe problems in the space: bass response and low-frequency resonances.

While thin panels can manage high-frequency reflections, they leave the low end untouched, resulting in an imbalanced room that can sound both stuffy and muddy. To achieve a trustworthy listening environment, you should prioritize panel thickness to achieve the results you need. As a practical minimum, using at least four-inch broadband panels for reflection points and the thickest bass traps your room dimensions can accommodate will make very obvious improvements. In acoustics, thickness is the currency of low-frequency control for managing the long wavelengths of the low end.

When setting up a room for critical listening or recording, the question of how thick acoustic panels should be is usually the first one asked. It is also the one most frequently answered with half-truths. Thin foam panels are often marketed as a total solution, but these products fail to address the bass response problems, which are the hardest problems to solve, and require adequate space inside the room to accommodate thick bass traps.

While high frequencies have short wavelengths that dissipate quickly, low frequencies have long wavelengths. A 50Hz wave is over 20 feet long. These waves do not just bounce; they linger, creating the longest decay times throughout the bass region. To fix these issues, you must understand the relationship between physical depth and acoustic performance.

Solving the Worst Problems in the Room

Acoustics is fundamentally a time problem. When a room sounds muddy or lacks clarity, it is because the space stores sound energy and releases it slowly. This extends the sound well beyond the original signal. The speaker stops, but the room keeps talking. The most severe manifestation of this time-domain failure is in the low end.

Low-frequency resonances, most often associated with room modes, can ring for hundreds of milliseconds. This ringing smears the details of your audio, making it impossible to hear the true stop-and-start of a kick drum or a bass line. Because these problems are the most difficult to fix, they require the most significant physical intervention.

The thickness of acoustic panels determines how far down into the frequency range the treatment remains active. In rooms where great bass response is a priority, the most effective strategy is to make every panel in the room as thick as can be tolerated. There is no substitute for physical volume when trying to achieve a balanced sound. It always comes down to a trade-off: how good you need the bass to be versus how much room space you have to deliver it.

The Physics of Porous Absorption and Wavelength

To understand why thickness matters, we have to look at how a sound-absorbing panel actually works. When sound waves strike a material like rockwool or fiberglass, the vibrating air molecules move into the porous structure of the panel. The friction between these moving molecules and the fibers of the internal material converts acoustic energy into a tiny amount of heat. However, for this friction to be effective, the air molecules must be moving at a high velocity.

Physics dictates that the velocity of a sound wave is at its maximum at a distance of one-quarter wavelength from a boundary, such as a wall. At high frequencies, that one-quarter-wavelength point is very close to the wall. This is why a two-inch panel can easily manage treble reflections. But for a 100Hz wave, that peak velocity point is nearly three feet away from the wall. If you place a thin panel against the wall, the low-frequency wave moves at its slowest as it passes through the material. The panel has nothing to grab onto. By increasing the thickness of acoustic panels, you are physically extending into the room to capture the wave where it moves fastest and is most vulnerable to absorption. And for thicker panels, the sound wave spends more time inside the absorbent material, resulting in more effective bass sound absorption.

Matching Thickness to Room Dimensions and Modes

Every room has a unique acoustic thumbprint dictated by its room size and dimensions. These dimensions determine your primary axial modes—the specific frequencies where sound waves reflect on themselves to create massive peaks and nulls in volume. A very useful strategy is to calculate these modal frequencies before buying any treatment. If your room's longest dimension creates a strong resonance at 70Hz (corresponding to a room length of 16.15 feet), make sure the devices you put in the room are effective at 70Hz.

To be effective, the devices placed in that room, especially on the front and back walls (the walls at the ends of the longest dimension), must be active within that specific frequency range. In music studios and small home studios, these modal problems are more pronounced because the walls are closer together. Smaller rooms actually require thicker treatment than large rooms because the pressure build-up in the corners is more intense. If the treatment is too thin to be active at those modal frequencies, the room will continue to store and release that energy regardless of how many panels you hang.

The Difference Between Thin and Thick Panels

In the world of professional acoustics, we generally categorize panels by their effective bandwidth. Two-inch panels are the minimum baseline for effective treatment in speech-frequency applications. They are common in office spaces or hallways where you simply want to reduce the ping of conversation and manage speech intelligibility. They provide a high noise-reduction coefficient for the mid and high frequencies, but offer no sound control for the low end of a music studio.

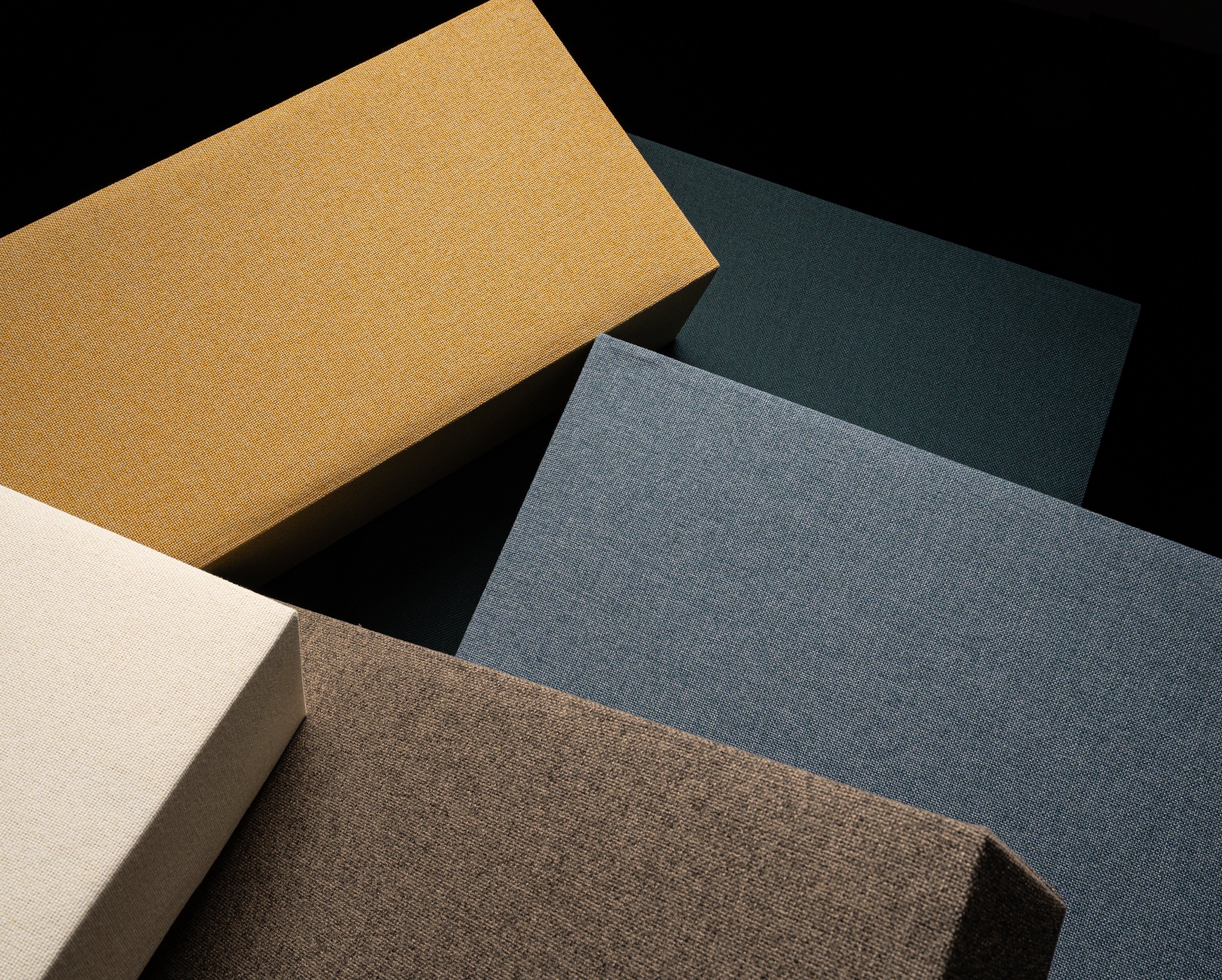

Four- to six-inch-thick broadband panels are “broader” broadband absorbers because they absorb at lower frequencies, extending the device's bandwidth. This thickness allows the panel to remain active much further down the frequency range, reaching into the upper bass, where much of the muddiness lives. Finally, the most effective broadband bass trap is a specialized, very thick acoustic panel. Devices like our Soffit Bass Traps are the thickest GIK offering and are designed to provide deep, broadband bass trapping in corners where low-frequency pressure is highest.

The Space vs. Performance Tradeoff

We often hear from clients who do not want the room to feel too small or too dead. This is where the space-versus-performance trade-off becomes a design decision. If you fill a room with thin absorption, you will fix reflections and reverberation at higher frequencies, but leave the bass completely untouched. This results in an imbalanced room that sounds dark, stuffy, and yet still boomy in the low end. This is the most common mistake in DIY home studio setups. The correct strategy is to prioritize balance over extremes. By using thicker panels of four inches or more, you get more value in terms of time-domain control by addressing the low end. Once that’s right, the midrange and treble sound reflections are easier to get right. This allows you to keep some of the room's natural liveliness while still fixing the worst problems in the space.

Hybrid Devices: Controlling the Low End Without Killing the Room

For those concerned about a room becoming too dead, hybrid devices are the professional solution. Products like the Amplitude series are designed with a plate and an engineered cutout pattern over a thick absorptive core. Because low-frequency waves are large, they pass right through the plate and are captured by the thick core. However, high-frequency waves are small enough to be scattered or diffused by the plate's pattern. This allows you to use the necessary thickness to control the low end while maintaining high-frequency energy and air in the space.

The Role of Air Gaps in Acoustic Performance

There is a way to cheat the physics of thickness slightly: the air gap. It works best for thinner bass traps, 4 or 6 inches thick. A good rule of thumb is to have the air gap behind the absorber at least as thick as the panel itself. By mounting a four-inch panel with a four-inch air gap, you effectively move the absorptive material farther from the wall, away from the sound wave's zero-velocity point at the reflective surface (where the sound changes direction and reaches zero velocity). This increases the panel's effectiveness in the lower frequencies without the cost or weight of an eight-inch physical device. It is a practical way to get the most out of thinner bass traps. However, an air gap is not a total replacement for thickness; a solid eight-inch trap will still outperform a four-inch panel with a gap because it has more physical material to convert energy into heat.

Materials Matter: Why Foam Fails

Many people start with a cheap acoustic foam panel because it is easy to ship and inexpensive. However, the material's density and flow resistivity are just as important as its thickness. Most foam is too thin and lacks ideal gas-flow resistance properties, even if it were thicker. At GIK, we use specific densities of high-performance absorbent materials that are lab-tested to optimize the device's acoustic performance. If a material is too dense, with greater gas-flow resistance, efficiency is negatively affected in thicker devices.

Treatment vs. Soundproofing: A Necessary Boundary

It is important to maintain a hard boundary between acoustic treatment and soundproofing. Adding thick acoustic panels to walls will improve the sound quality, intelligibility, and imaging inside the room. It will make your recordings better and your mixes more accurate. It will not stop sound from transmitting to your neighbors. Soundproofing is a construction problem that requires mass, density, and decoupling. If your goal is silence outside the room, acoustic treatment is generally not the answer. If your goal is better sound inside the room, it is the only answer.

The Main Panel Thickness Takeaway

For high-performance audio environments, panel thickness is critical. To avoid the mistake of an imbalanced room, make sure you start with panels thick enough to address the problems in your room; everything else downstream from there will be simpler and more effective. For music studios and recording studios, you should use at least four-inch panels for your primary reflection points and the thickest bass traps your room can accommodate as a bare-minimum baseline for accurate performance. You should also match depth to dimensions, using your room measurements to identify modal problems and to ensure your treatment is thick enough to be active at those frequencies. Prioritizing the corners is essential because low-frequency pressure is highest at the corners where walls meet. Finally, remember to think in systems terms by considering the room's balance; thicker broadband treatment combined with hybrid diffusion is the path to a trustworthy listening environment.

Through our free Acoustic Consultation process and a wide variety of panel thicknesses and types, we guide clients step by step toward trustworthy listening environments that meet their needs for professional studios, HiFi rooms, or home theaters. Listen to the music, not to your room.
