Do Foam Bass Traps Work? Comparing Acoustic Foam to GIK FlexRange Bass Trap Panels

Acoustic Foam Bass Traps  vs. GIK FlexRange Bass Trap Panels

One of the most common questions we get on forums, on social media, or in inquiries to GIK Acoustics is whether foam bass traps really work, especially compared to our 90Hz FlexRange Bass Trap panels, formerly called the 244 bass trap. These are a foundation of the GIK product line, as one of our oldest products. The 90Hz FlexRange (244) is also the thinnest and most affordable FlexRange bass trap option, so results will get even better as you upgrade to the thicker FlexRange varieties!

It's easy to see why people gravitate toward acoustic foam: it's cheap, widely available, and marketed heavily as a simple solution for improving sound. But when it comes to how well acoustic treatment controls bass frequencies, the truth is in the data.

Acoustic foam can help reduce high-frequency reverberation. Still, it's nearly ineffective in addressing low-frequency sound, where many of the most persistent problems occur in small rooms, home studios, and recording spaces. Worse, because foam products often aren’t thick or dense enough, they can give users a false sense of control while leaving core problems like bass build-up and room modes untouched.

To demonstrate this clearly, we ran a side-by-side lab test comparing a room treated with popular acoustic foam wedge bass traps and the same room treated with GIK FlexRange Bass Trap Panels Bass Traps. We measured both frequency response and decay time using REW software.

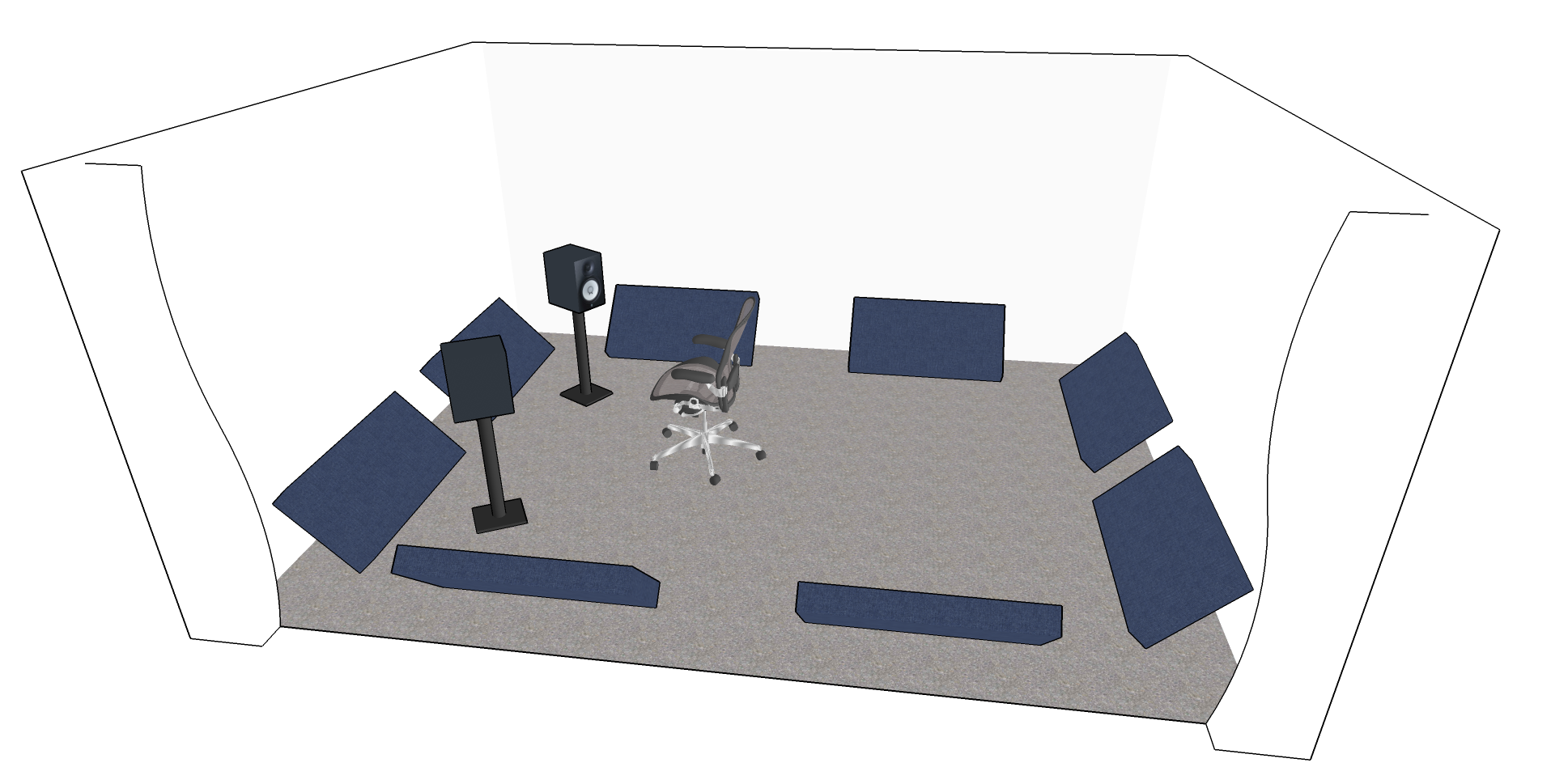

We purchased sixteen 17" x 24” foam bass traps and compared them to eight GIK 90Hz FlexRange Bass Trap Panels (24″ x 48″). Both sets of products were placed in the corners of the room, in the standard corner-bass-trap configuration, with the same 32 feet of linear coverage. No EQ or additional tuning was used; this test was purely to compare passive acoustic performance.

Why corners? Because that's where low frequencies naturally accumulate. Placing traps in the corners allows us to directly compare how each product type handles bass buildup and the standing waves that dominate untreated spaces in a real-world scenario.

Frequency Response

Test 1: Empty Room

We first measured the room without any acoustic panels or treatment. As expected, the result was a jagged frequency response with exaggerated peaks and deep nulls due to room modes.

Test 2: Foam Panels

The next test introduced the sixteen acoustic foam wedge bass traps. As you can see from the graph, they made very little difference below 250 Hz. While they did smooth out some high frequencies, there was no significant absorption in the bass frequency range.

Test 3: GIK FlexRange Bass Trap Panels

In contrast, the FlexRange Bass Trap Panels made a substantial improvement starting around 65 Hz and continuing upward. This is where most of the bass energy in music and voice resides. Even at 45 Hz, a frequency as low as 45 Hz showed some control; this is deep low-frequency absorption that foam simply cannot provide.

How to Read the Frequency Response Graphs

Frequency response graphs show how evenly the room reproduces different tones from low to high. Peaks and dips reflect interference patterns from sound bouncing off surfaces and interfering with the direct sound. Absorbers like the FlexRange Bass Trap Panels reduce these peaks and dips by stopping reflected sound waves before they create problems.
More importantly, smoother frequency response means better sound quality; you're hearing more of what your speakers are producing, and less coloration from the room.

Waterfall Graphs: The Real Story Is in the Decay

What Is a Waterfall Graph?

A waterfall graph combines frequency response with decay time, which is how long it takes sound at a given frequency to die out. The 3D shape lets you see not only how intense the sound is at each frequency, but how long it lingers in the room.

Decay times are especially critical for bass frequencies, which naturally take longer to dissipate. Poor decay times make the room sound muddy and undefined, masking detail and clarity. This is what people mean when they say a room has "boomy bass" or feels like it has too much reverb.

Understanding the decay-time behavior will give us much more insight into what the room actually sounds like than a simple frequency response chart. These lingering frequencies have a much greater effect on what we hear in the room.

These lower frequencies are also more challenging to treat than higher frequencies in the treble and midrange. Everyday household items like carpeting, curtains, and even soft furniture can offer some high-frequency absorption, but bass absorption generally doesn’t happen by accident. We need devices that are appropriately designed and built from optimal materials to achieve bass absorption, and these tests show exactly how well the devices work (or don’t!). Bass performance below 300Hz is essential in all audio systems, especially in systems with subwoofers or strong bass response.

Test 4: Empty Room (Waterfall)

Without treatment, decay times were excessive; some bass frequencies took over 500ms to fully decay. This contributes to a smearing of detail in music and a lack of clarity in spoken voice.

Test 5: Foam Panels (Waterfall)

The sixteen foam panels showed almost no change in decay times at frequencies below 200 Hz. The foam bass traps simply don’t have the size, density, or thickness to affect low-end buildup.

Test 6: GIK 244 Bass Traps (Waterfall)

The GIK FlexRange Bass Traps made a dramatic difference. At 65 Hz, the decay time dropped significantly, and even at 45 Hz, there were measurable improvements. This is the core function of a bass trap: not just to change the tone, but to reduce how long low frequencies linger in the room.

Why Broadband Matters

The GIK FlexRange Bass Trap Panels are an outstanding broadband absorber that can accomplish a wide variety of room treatment roles. The biggest reason is that it works consistently across the entire frequency spectrum, from low to high. This eliminates the most common issue with foam-based treatment: uneven performance. Foam typically absorbs only highs and upper mids, creating rooms that feel dead on top but muddy on the bottom.

Broadband traps use sound absorption to smooth out the frequency response and decay times across the board. That makes it easier to trust what you're hearing, whether you're tracking vocals in a vocal booth, mixing a record, or fine-tuning a home theater.

And the best news? As good as the 90Hz FlexRange Bass Trap Panels are, these are just entry-level bass traps. We can get even better performance using thicker versions of the FlexRange Bass Trap Panels, Sound Blocks, Soffit Bass Traps, and others, extending performance to lower frequencies. We can combine this broadband bass-trapping approach with other treatments, such as diffusers or tuned Helmholtz resonators/pressure absorbers, such as the GIK Scopus membrane traps, to deliver superior, balanced results in your room.

Why Room Acoustics Are Everything

Even the best speakers and electronics can’t overcome poor room acoustics. If bass decay and room modes aren’t controlled, the room dominates what you hear, masking detail and misleading your decisions.

This shows up everywhere:

• Recording studios are struggling with low-end translation or accurate mixes

• Home studios fighting inconsistent bass response and unpredictable low-end

• Listening rooms where bass overwhelms detail

• DIY vocal booths that sound boxy or unclear

Acoustic foam traps may make a room feel quieter, but they don’t deliver the low-frequency control needed for accurate monitoring or critical listening. That requires real bass trapping designed to manage decay, not just absorb treble.

Graph Recap: What the Data Tells Us

• Frequency Response: Foam barely changes the frequency response until about 250 Hz. The GIK FlexRange Bass Trap Panels significantly smooth the low end to under 100Hz, addressing the fundamental frequency range of the human voice and most instruments.

• Waterfall/Decay: In addition to frequency response, foam has almost no effect on low-frequency decay times. GIK FlexRange Bass Traps dramatically shorten bass decay times, especially in the top half of the bass range, restoring clarity and definition.

In real rooms, sound quality isn’t just about level; it’s about time. Controlling decay reduces standing waves, cleans up bass buildup in corners, and minimizes the room’s influence on what you hear. That’s the difference between cosmetic treatment and meaningful acoustic control.

Foam Panels Can’t Replace Real Bass Traps

While foam products may offer a cosmetic or psychological improvement, they do not provide the acoustic control that proper bass traps do. If you're looking to tame the low end, reduce buildup in the corners of the room, and improve overall sound quality, broadband traps like the GIK FlexRange Bass Traps are essential.

Want to know precisely how many traps you’ll need or where to place them? Our GIK Acoustics Design Team offers free expert advice tailored to your space. Fill out the Acoustic Advice Form today, and let us help you make your room sound as good as it looks.
