PIB (Portable Isolation Booth)
The PIB semi-reflective plate is available in blonde wood veneer, black veneer, white veneer, Gray Elm veneer, or Mahogany veneer
Need help? Fill out our form and get free acoustic advice.
All rooms can have a negative influence on the direct sound by “coloring” the sound source that is being recorded. The GIK Acoustics PIB (Portable Isolation Booth) effectively isolates a vocalist or sound source from a room which significantly improves the recording quality.
SUPERIOR PERFORMANCE OVER COMPETING PRODUCTS
Typically, a portable booth or sound isolation booth provides some sound isolation but lacks quality performance. Small vocal shields using thin foam will only absorb high frequency content, leaving the low frequency content untouched. This results in a perceivably “boomy” and “muddy” sound, which degrades the clarity of the sound source. The PIB is made of 2″ thick rigid fiberglass which effectively absorbs down to 150Hz, yielding improved clarity.
SIZE DOES MATTER
The size of the PIB (Portable Isolation Booth) makes it more effective than other portable vocal booths (sometimes called an iso booth) because the large surface absorbs more room reflections. The large size also means the PIB surrounds the mic making it more natural for a singer as opposed to singing into a U shaped piece of foam.
STYLE AND SUBSTANCE

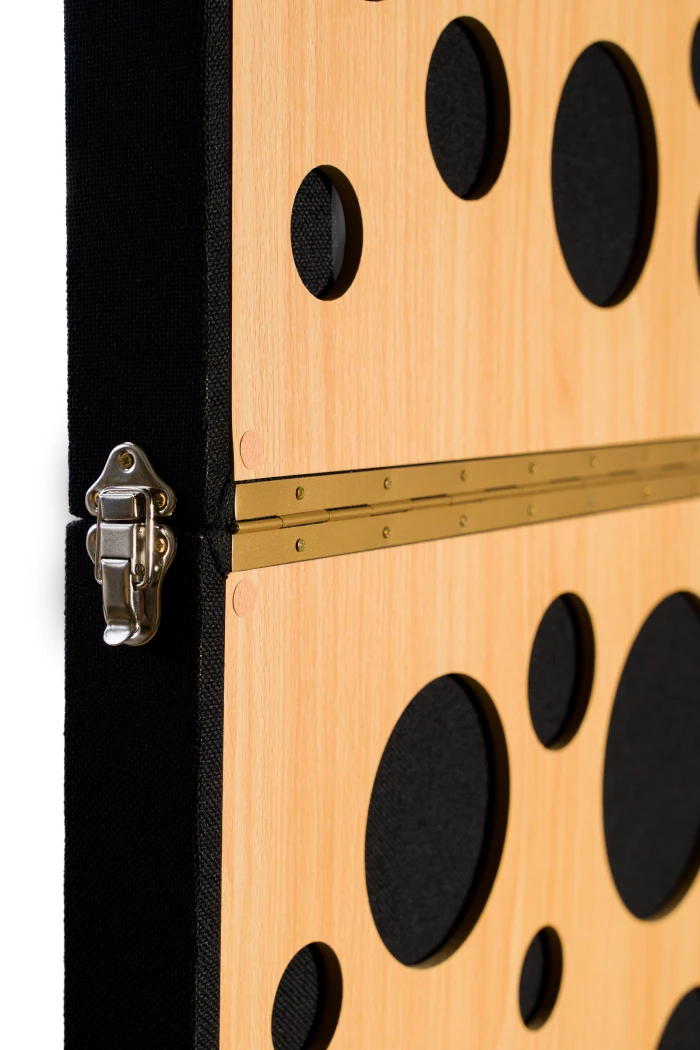

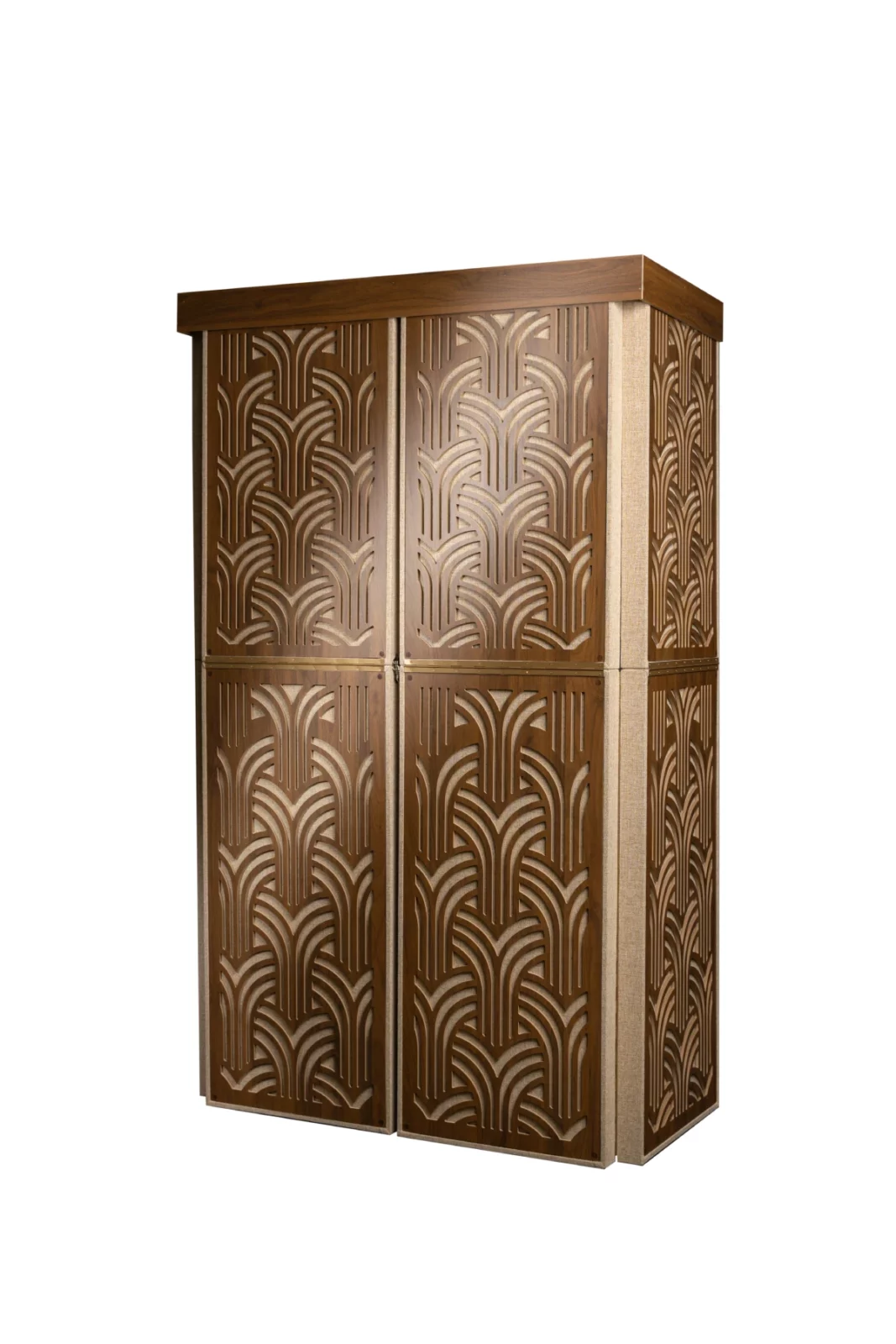

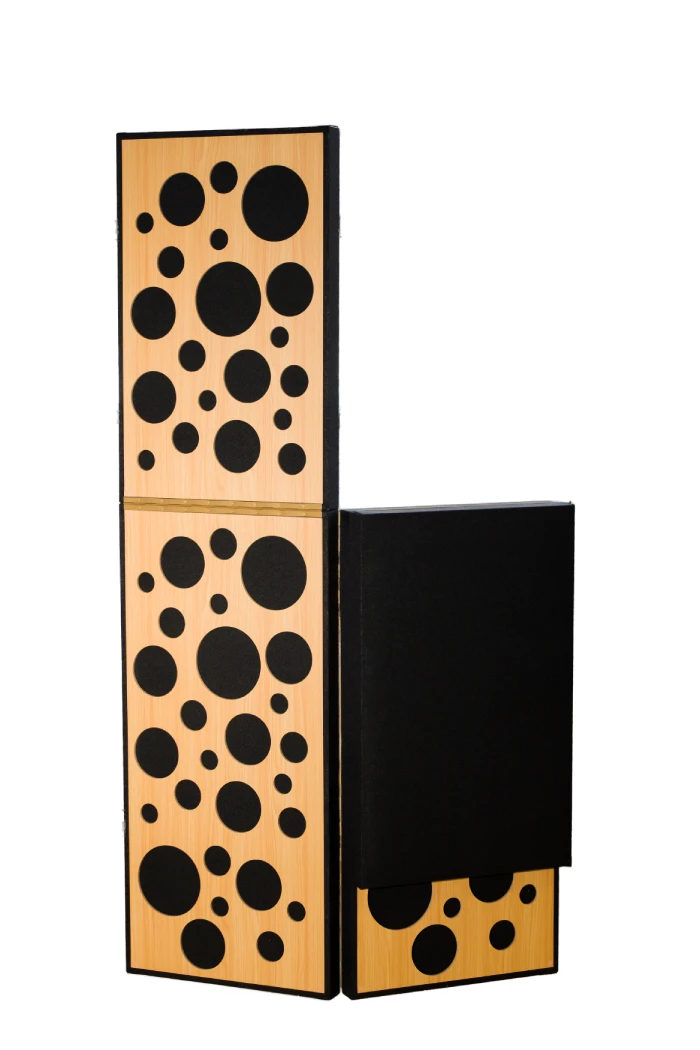

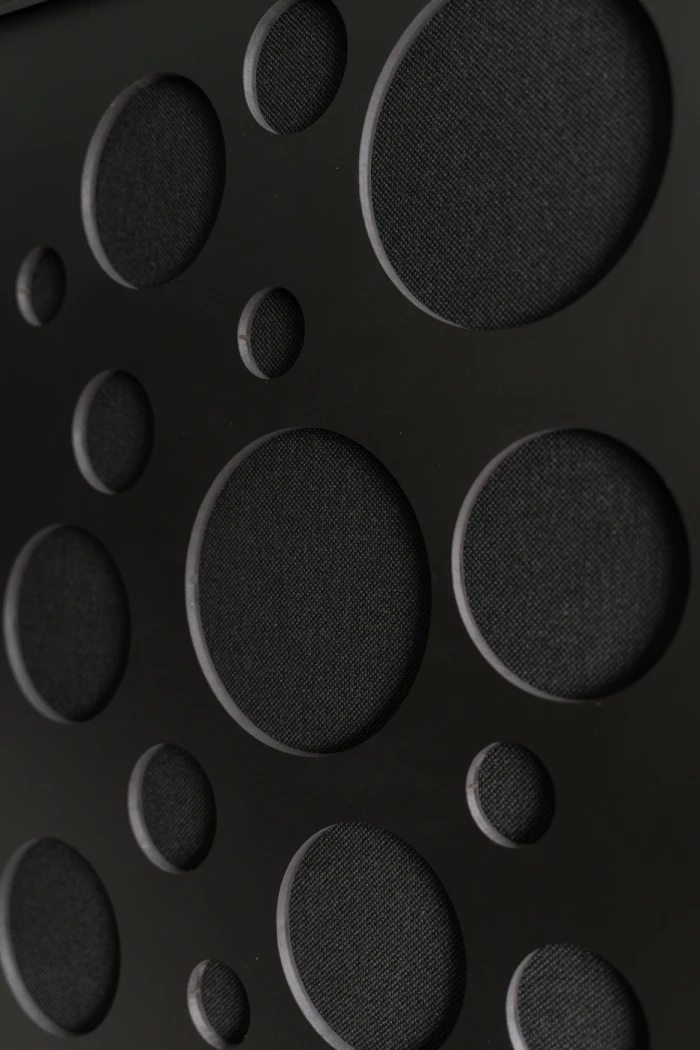

The most unique feature of the PIB (Portable Isolation Booth) is one side has a thin, rigid plate with stylish cutouts which provides absorption while being semi-reflective. The rigid plate is ideal when recording and tracking as it will reflect high frequency content across the room, in turn improving the sonic image of your tracking or listening environment.

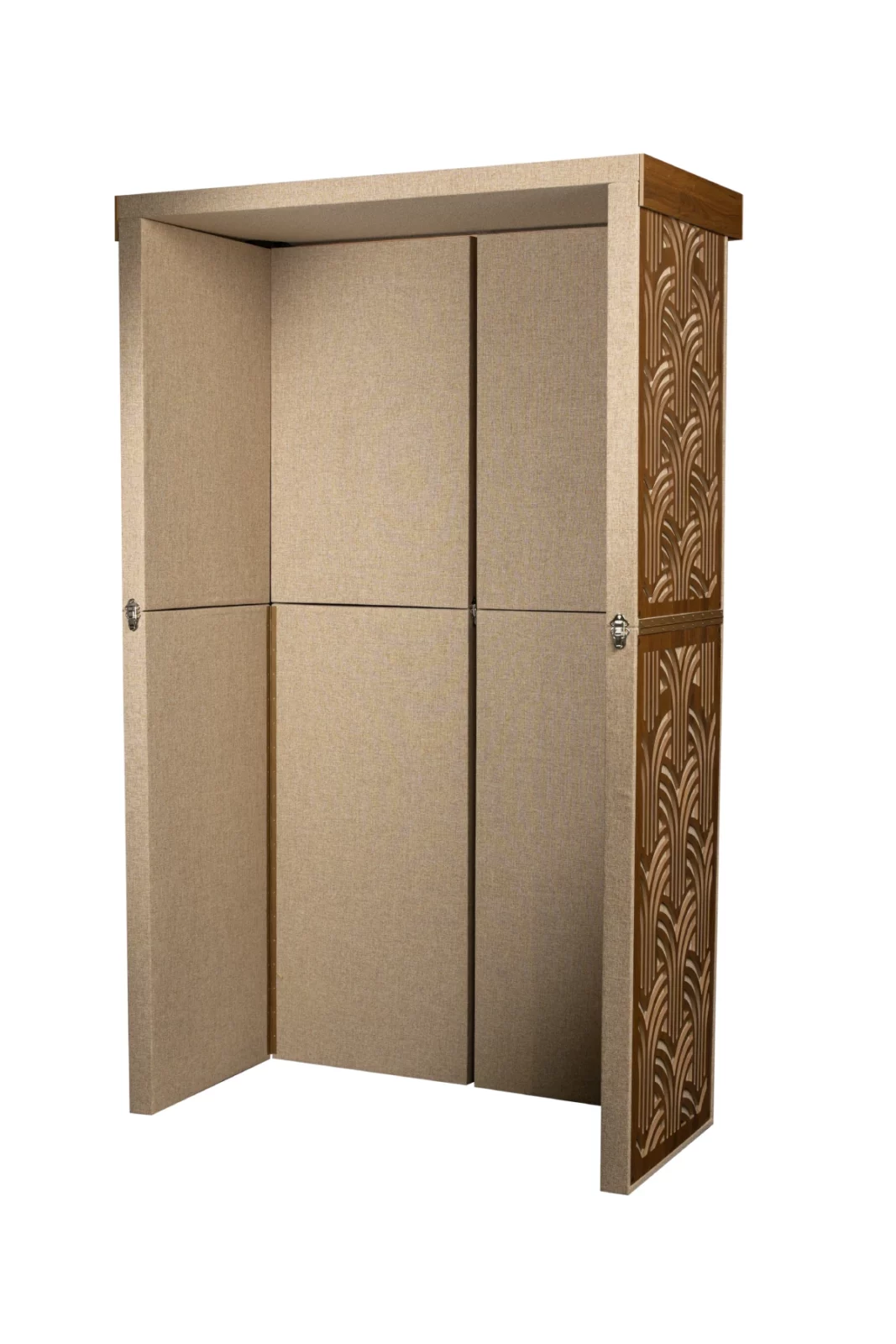

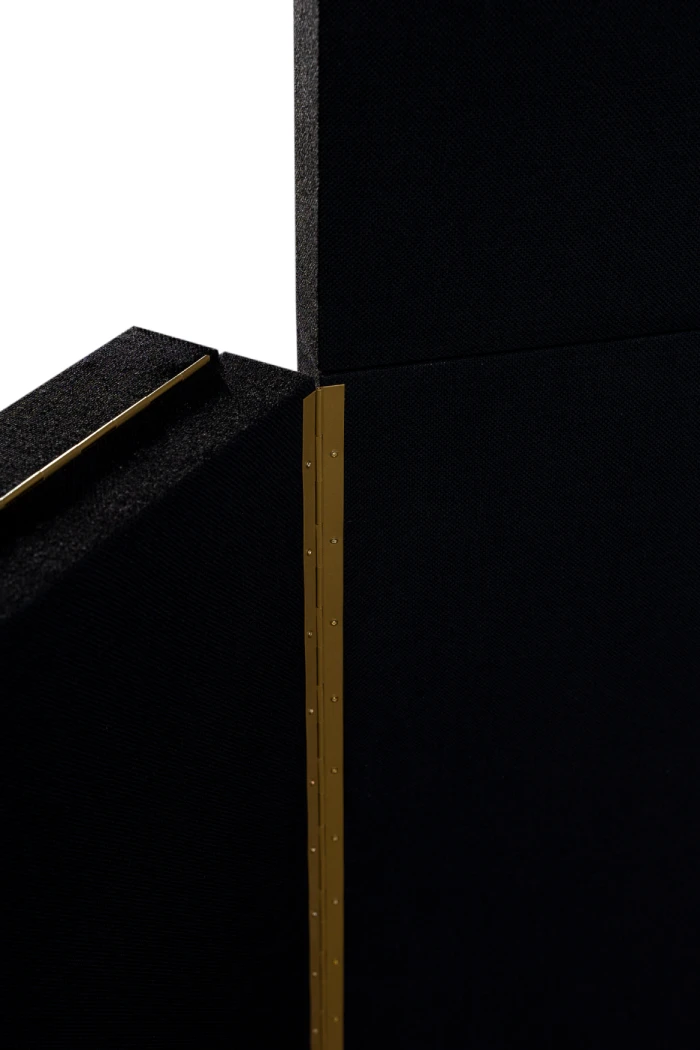

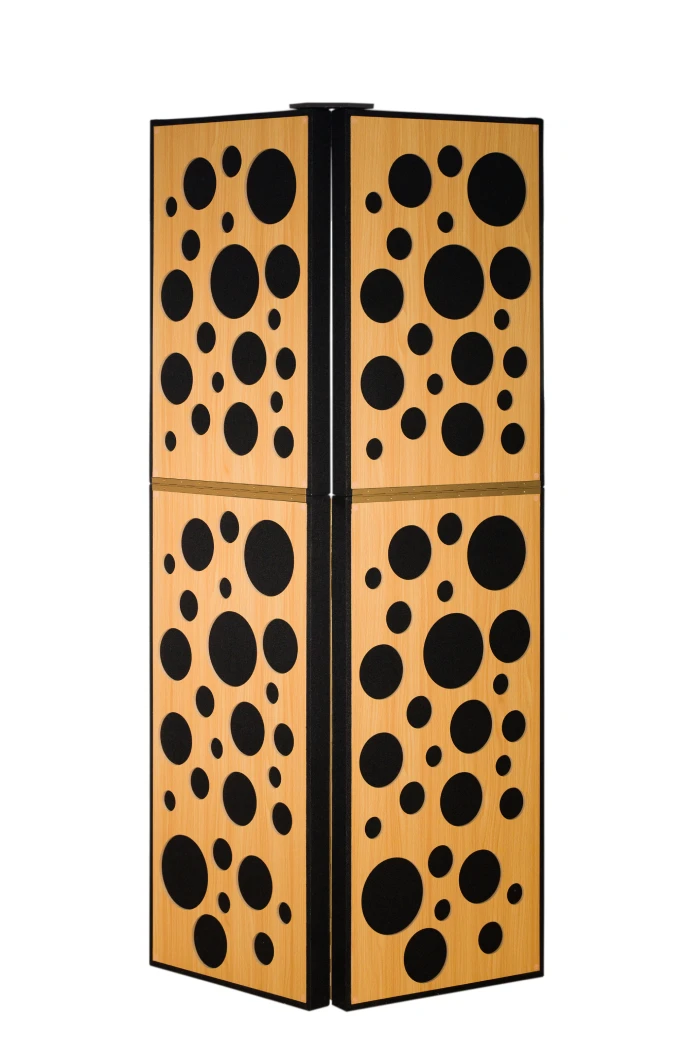

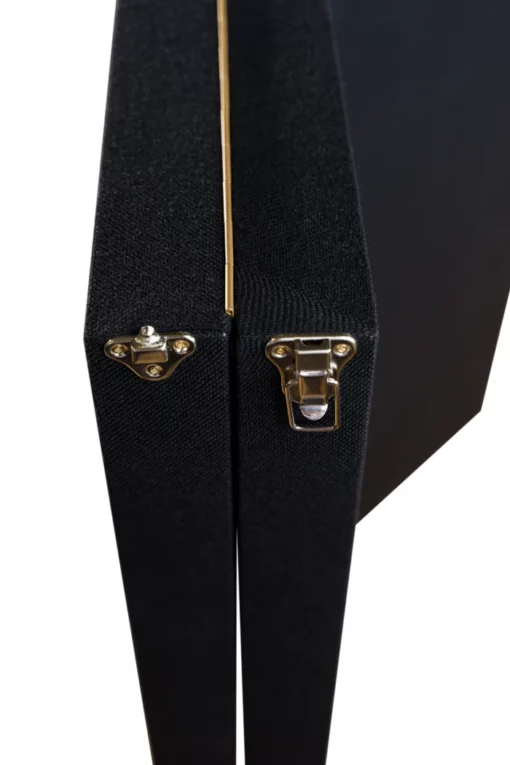

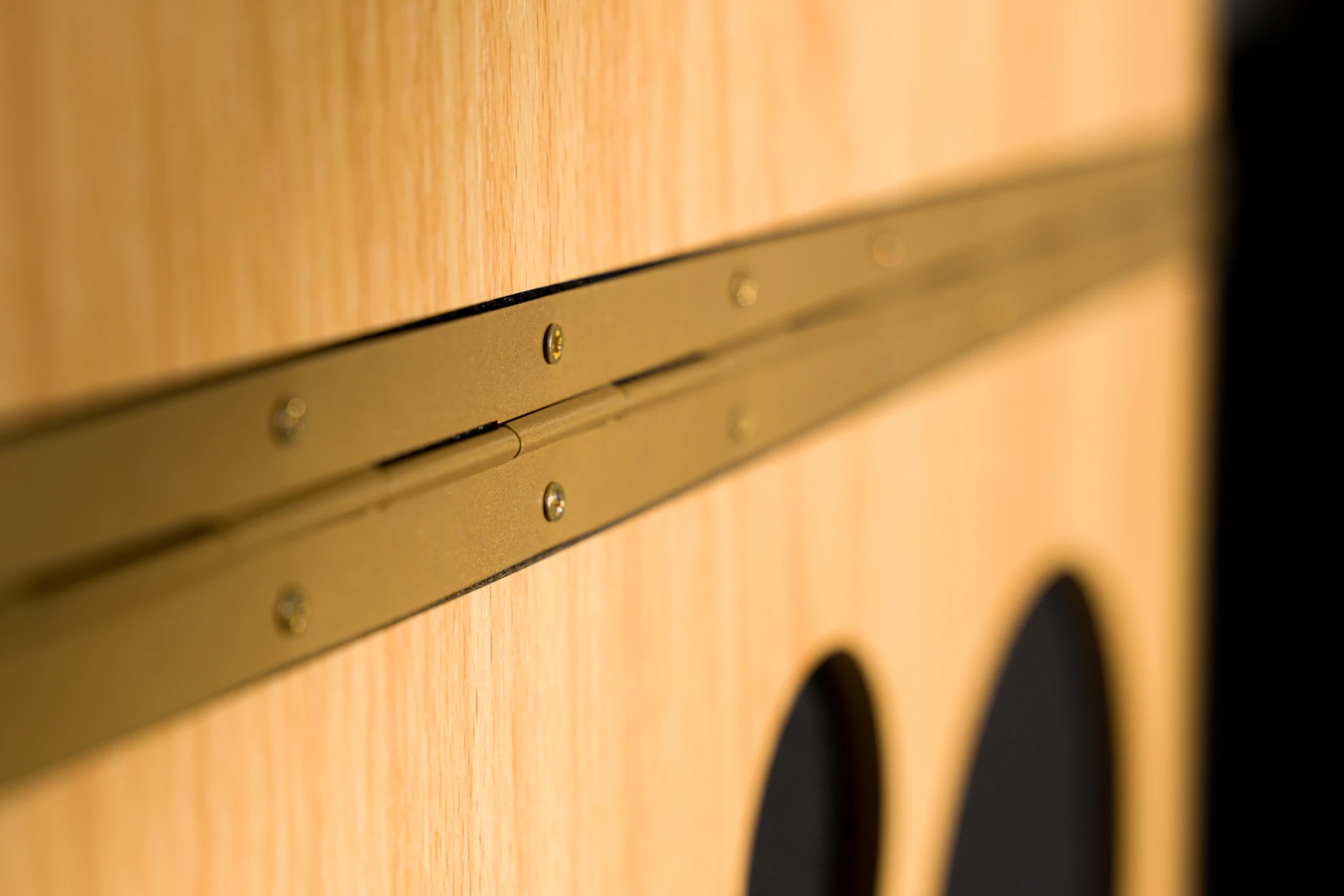

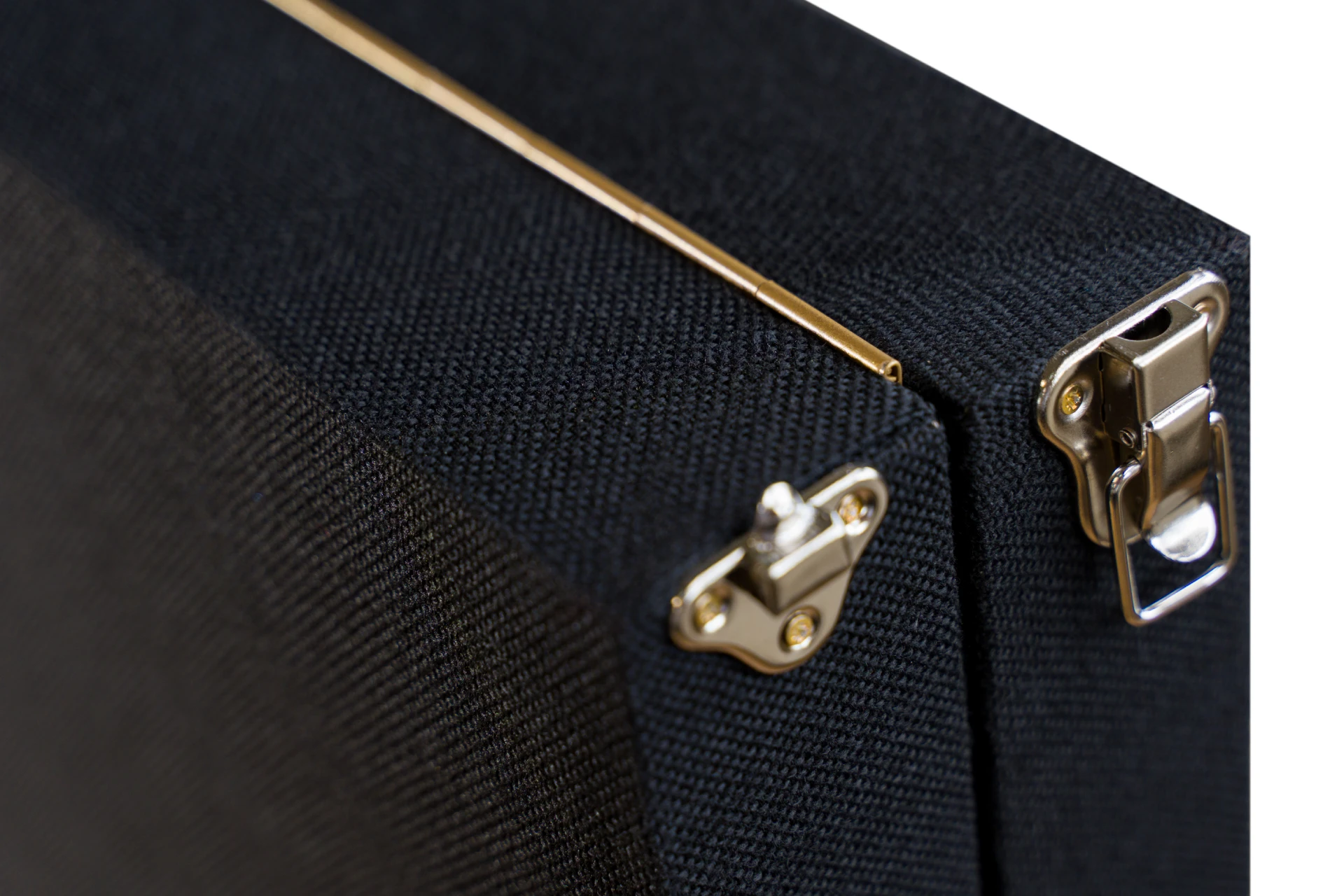

The PIB (Portable Isolation Booth) is hinged and collapsible making it a combination portable standalone isolation booth and a compact portable sound booth.
- Unfolded it acts as a vocal isolation booth; and unlike a mic shield, the PIB expands to 6’6″ tall x 3’7″ wide

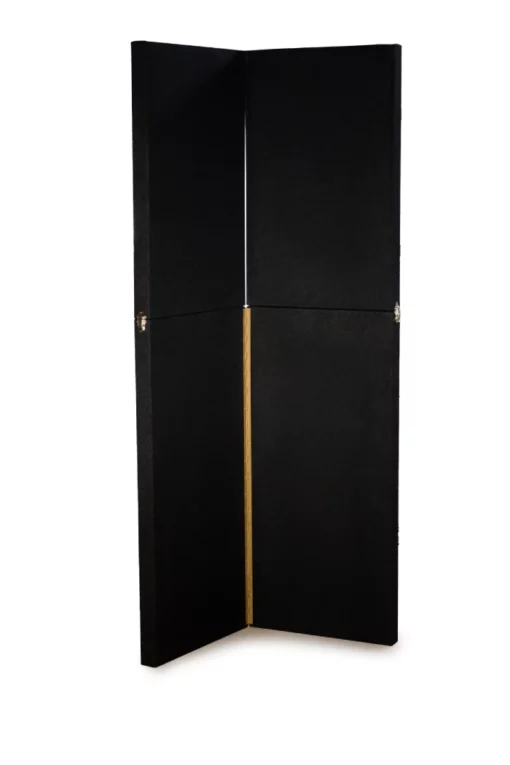

- Collapsed it can be used as a portable sound booth for recording acoustic instruments such as guitars
The PIB is a versatile, adjustable and suitable acoustic booth in any environment; whether it’s a bedroom studio or a professional recording facility.
Plate available in 5 attractive finishes:
PIB (Portable Isolation Booth) Features:
- Compact, durable, freestanding, easily stored
- Standard size unfolded: 43″ wide (each panel is 21.5″) x 78″ tall
- Standard size collapsed: 43″ wide (each panel is 21.5″) x 45″ tall
- Weight: 30 pounds
- PIB is available in our 9 standard, quality GIK Acoustics fabric options
- Additional Guilford of Maine fabric choices available
- Class A fire rated – Click HERE for Fire Rating test results
- employs ECOSE® technology absorption material and is manufactured with LEED certified Columbia Forest Products (made in the USA) formaldehyde-free technology
Marc Mozart “Unpacking the PIB” Video
We love this video from our friend Marc Mozart as it demonstrates how easy the PIB (Portable Isolation Booth) is to use.
PIB (Portable Isolation Booth) Product Video
This video demonstrates the effectiveness of the PIB for recording vocals.
GIK Acoustics would like to thank singer/songwriter/producer/engineer, Nancy Kaye Hill (a.k.a. Rosey), for her cooperation in making this video. For more on Rosey and her many talents, please visit her website: http://www.roseymusic.com/
Video was recorded in the GIK Acoustics testing room using an AKG C 414 B-ULS microphone set in omni position.
FINISHES AND FABRICS
Semi-reflective plates available in blonde wood veneer, black veneer, white veneer, Gray Elm veneer, or Mahogany veneer
All panels are available in our 9 standard, quality GIK Acoustics fabric options at no additional charge.
9 STANDARD GIK ACOUSTICS FABRICS
You may select any of the following 9 stocked Guilford of Maine colors right off the web site.
9 STOCKED GUILFORD OF MAINE COLORS
Upgrade the finish of your panels to Guilford of Maine FR701 or Anchorange fabrics for a nominal charge per panel.
|Panel Size||Additional charge per panel|
|Impression Series or Alpha Series square panel (24” x 24”)||$15.00|
|Impression Series or Alpha Series narrow panel (12” x 48”)||$15.00|
|Impression Series or Alpha Series rectangle panel (24” x 48”)||$25.00|
|Corner CT Alpha Bass Trap||$20.00|
|PIB (Portable Isolation Booth)||$55.00|
See all Guilford of Maine FR701 colors here.
Contact us for a quote on any other FR701, Anchorage, or other GOM fabrics.
