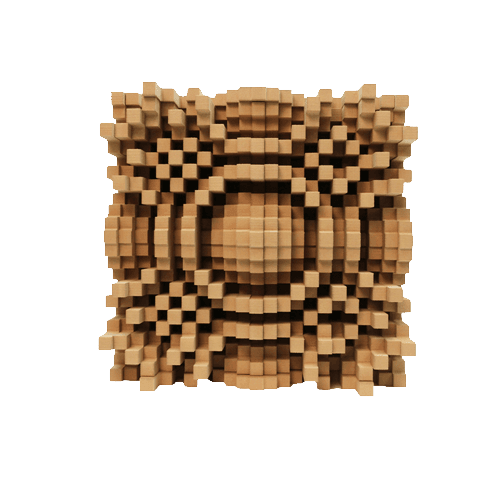

Gotham N23 5″ Quadratic Diffuser

Name: Gotham N23 5" Quadratic Diffuser
SKU: GOTH
Price: 399.00 USD
Availability: InStock

$399.00 per pair

Don’t risk missing results by simply putting random blocks in a series that are not calculated, as that will not give even acoustic diffusion. Make the room sound bigger with TRUE diffusion of high frequencies with our precision-cut, 23-root, two-dimensional Quadratic Diffusor.

Shipping Info

To provide our customers with the best possible shipping value, the Gotham N23 5″ Quadratic Diffusor is sold two (2) per box. If you wish to order a different quantity, please contact us to determine shipping rates.

Need help? Fill out our form and get free acoustic advice.

Subtotal
Options
Total

Build your own

Add to Wishlist

Overview

Our quadratic sound diffuser design – more accurately called a two-dimensional diffuser design – has the advantage of scattering sound across two planes: horizontal (left & right) and vertical (up & down). This two-dimensional scattering broadens the soundscape and makes a room sound larger.

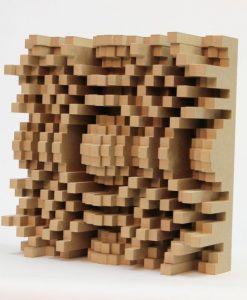

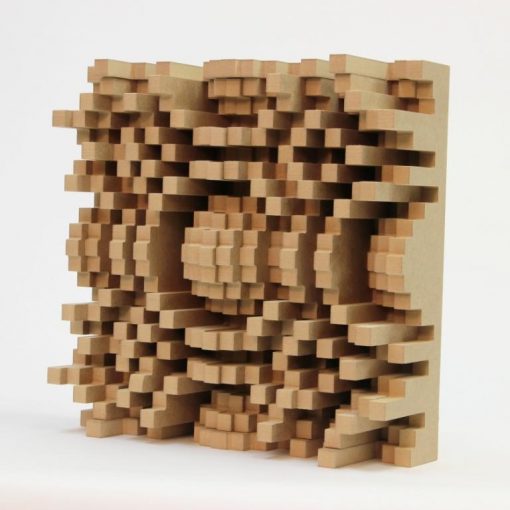

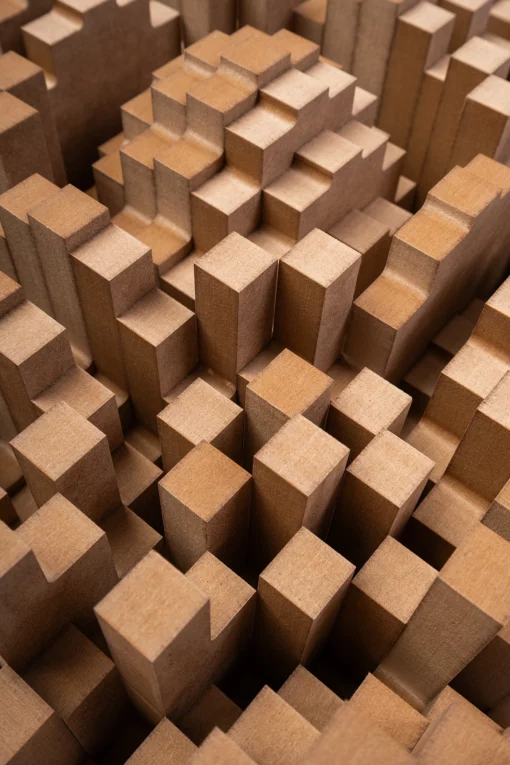

Introducing the Gotham N23 5″ Quadratic Diffuser: wood acoustic diffuser

Many sound diffusers available on the market today are simply random blocks in a series and are not calculated to give TRUE even acoustic diffusion. GIK Acoustics’ Gotham N23 5″ Quadratic Diffuser has a 23-root, calculated quadratic sequence which is machine cut within 120th of a inch. The design and painstaking attention to detail makes each diffuser perfect from the 1st to the 100th.

The striking look of the Gotham N23 5″ Quadratic Diffuser brings with it unparalleled performance: turning damaging reflections into a sonically pleasing diffused sound field, while controlling yet retaining higher frequencies, and making the room sound larger than it is.

Placement Ideas

The Gotham N23 5″ Quadratic Diffuser is an attractive choice for a room where high frequency chaos needs to be controlled but not removed. Our quadratic sound diffuser is best suited to spreading high frequencies out in a room.

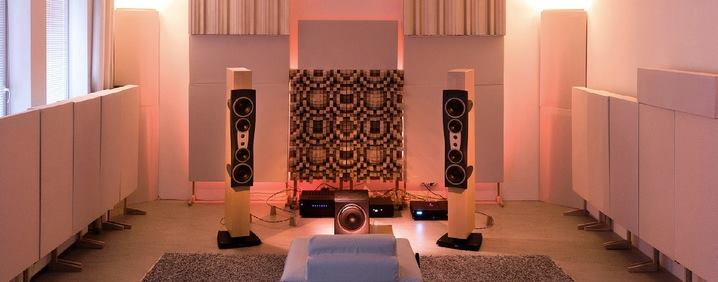

In a control room

the Gotham Diffuser can be used on the front and back walls, and rear sidewalls to keep the reverberation better mixed.

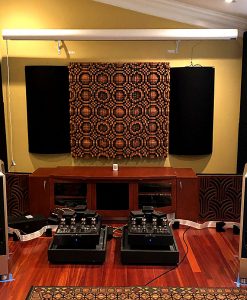

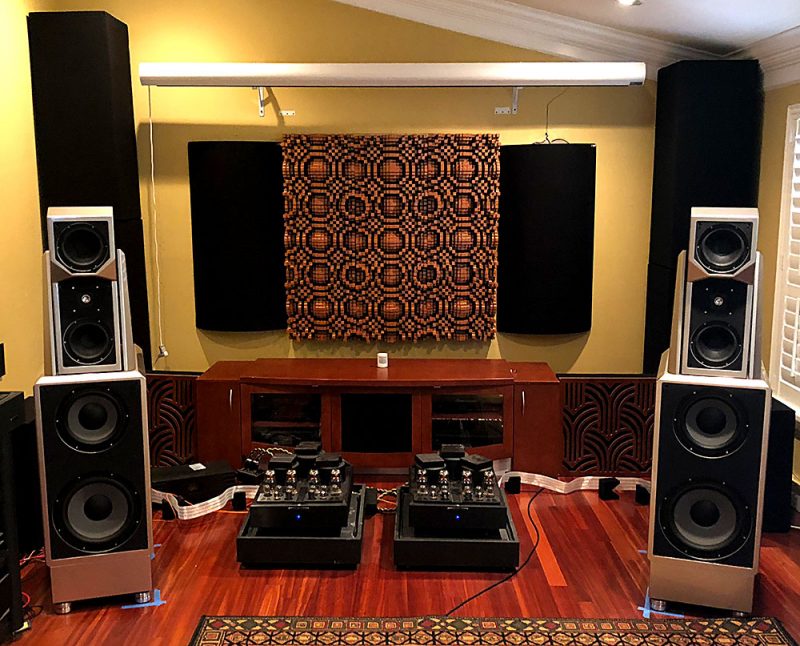

In home theater and two-channel audio rooms

the diffusers can be utilized arranged as a wall on the rear or sidewalls, or behind dipole speakers, to round off sharp reflections.

Gotham quadratic diffusers can be wall mounted, free standing or stacked. The Gotham N23 Diffusers are Ideal on the front wall or rear wall of control rooms, or on the rear sidewalls

Specs

Features

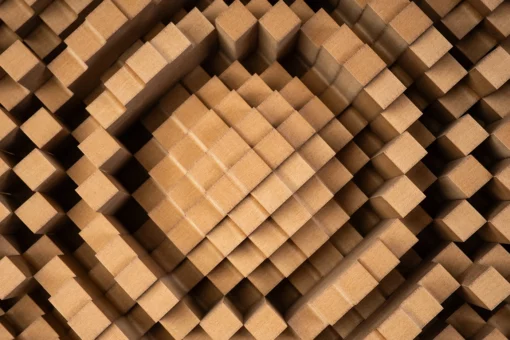

23-root quadratic sequence

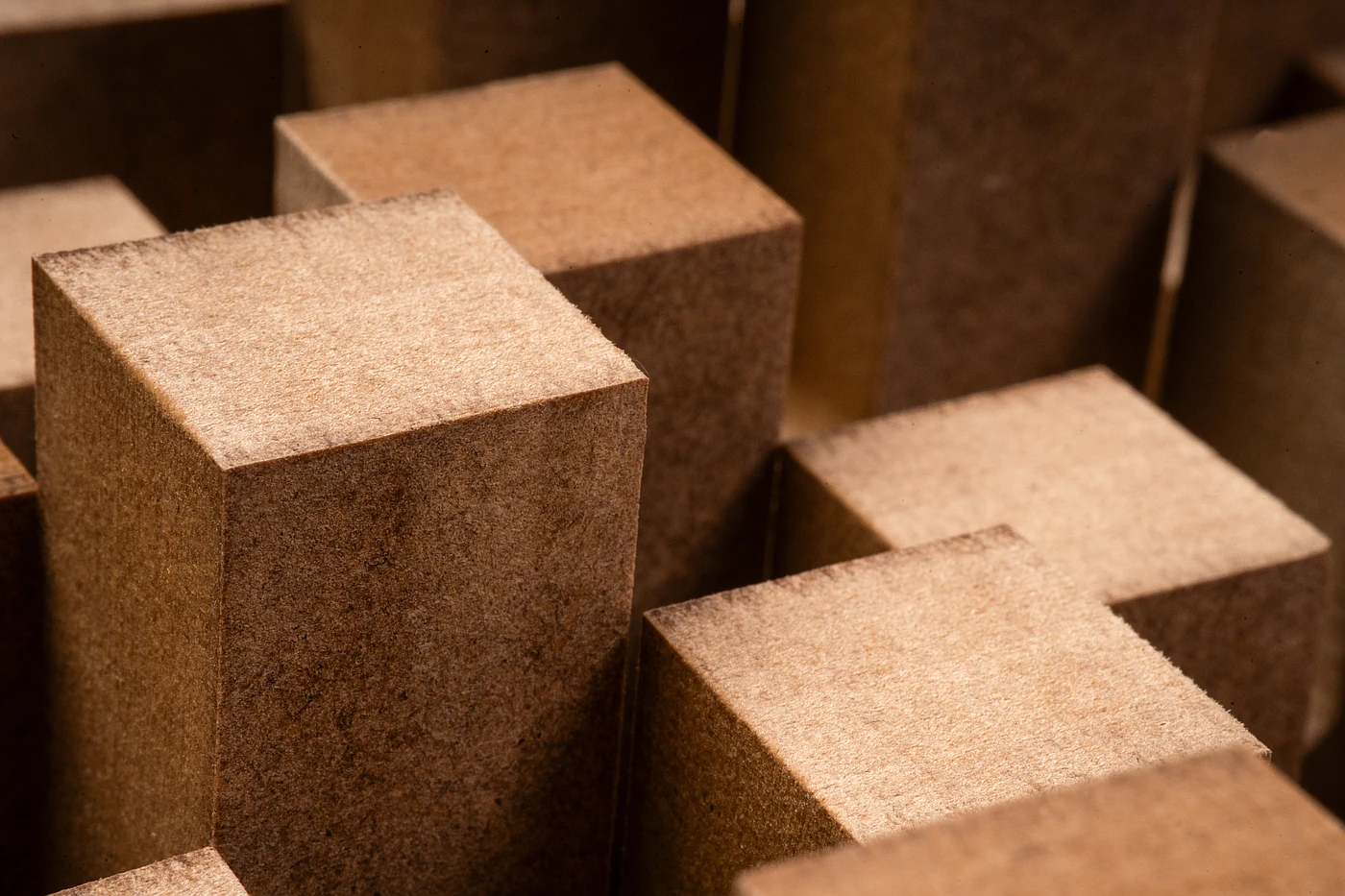

Made using medium density fibreboard (MDF)

Two sawtooth hangers included

Benefits

Provides true, even diffusion from 1250hz to 9500hz with scattering effects down to 650hz

No glue or destructive adhesive when installing. See “Installation Guide” tab for more.

Enhances any space with beautiful pattern

Finish looks great natural or can be painted to match any decor

Standard Size

17.5″ x 17.5″ x 5.5″

Weight

20 lbs

Usage

Used for controlling and retaining higher frequencies to make the room sound larger than it is.

The GIK Acoutics can also be placed diagonally which alters the aesthetic but maintains the hemispheric dispersion pattern provided by the 2-dimensional design. diffusors are versatile and can also be combined with other treatments to maximize the sound quality and ambiance of any room.

Construction

manufactured using Dixie Plywood GREEN products.

Articles

Gotham N23 5 Inch Diffuser - GIK Acoustics

GIK Acoustics Debuts Precision GOTHAM N23 5″ SKYLINE DIFFUSOR

ATLANTA, GA (April 19, 2017) – Leading acoustic treatment manufacturer GIK Acoustics has launched a [...]

How Diffusion (audio) Works

Originally Published on: Jan 15, 2009 View the accompanying Video Diffusion is often a misunderstood [...]

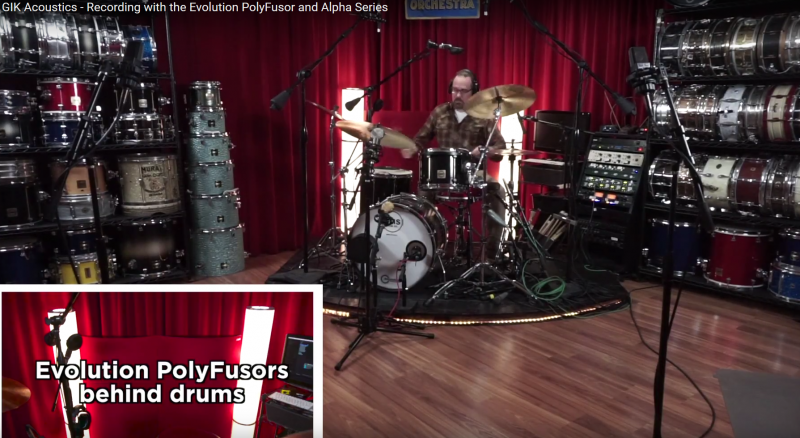

GIK Acoustics Drum Sessions recording with PolyFusor combination absorber diffusor panels

Adding Diffusion to Your Recordings

Using diffusion and absorption at the same time with GIK Acoustics’ Evolution PolyFusor and Alpha [...]

The Diffusion Dimension Download

Given GIK Acoustics’ entry into the world of two-dimensional diffusion with the Gotham N23 5″ [...]

2 Comments

Bass traps by GIK Acoustics in Lost ask studio

Treating A Recording Room

It’s true that most room design guidelines on the Internet – including those at GIKacoustics.com [...]

GIK Acoustics Debuts Precision GOTHAM N23 5″ SKYLINE DIFFUSOR

ATLANTA, GA (April 19, 2017) – Leading acoustic treatment manufacturer GIK Acoustics has launched a radiant new diffusor with the release of the Gotham N23 5” Skyline Diffusor – a precision-cut, 23-root, two-dimensional Quadratic Skyline Diffusor. Skyline Diffusors – more accurately called two-dimensional diffusors – have the advantage of scattering [...]

Adding Diffusion to Your Recordings

Using diffusion and absorption at the same time with GIK Acoustics’ Evolution PolyFusor and Alpha Series acoustic panels. Studio drummer Dylan Wissing (Alicia Keys, John Legend, Drake) of Indie Studio Drummer demonstrates the sonic changes in drum recordings by adding diffusion and absorption: GIK Acoustics’ Evolution PolyFusors and Alpha Series [...]

The Diffusion Dimension Download

Given GIK Acoustics’ entry into the world of two-dimensional diffusion with the Gotham N23 5″ Quadratic Skyline Diffusor and the 2D Alpha Panels, it’s no wonder people have been asking about the differences between one-dimensional (1D) and two-dimensional (2D) diffusion. This article will build on the previous articles, How Diffusion [...]

2 Comments

Treating A Recording Room

It’s true that most room design guidelines on the Internet – including those at GIKacoustics.com – are geared more toward listening rooms, home theaters, control rooms, or one-room studios than traditional “live rooms” or rooms in which live music performances are to be recorded. The main principles of treating a [...]

Finishes

Thermally fused melamine paper applied to medium density fibreboard (MDF).

Additional Information

Select	Pair, Unit

Gotham N23 5″ Quadratic Diffusors are shipped with two sawtooth hangers for easy wall mounting.

You have your choice of orientation. Gotham N23 5″ Quadratic Diffusors can be placed diagonally which alters the aesthetic but maintains the hemispheric dispersion pattern provided by the 2-dimensional design. The choice is yours.

Our diffusors are versatile and can be combined with other treatments to maximize the sound quality and ambiance of any room. If you’re not sure how the Gotham N23 5″ could enhance your space, we are happy to help. Contact us for free acoustical advice.

Download Instructions

Comparison Tool

Compare:

Effective Range:

Thickness:

wdt_ID	Products	Lowest Freq.	Thickness	Absorber	Diffuser	Bass Control	Wall Mountable	Backing Type	Mounting Hardware	Free Standing	Fits in Corners	Variety of Sizes	Custom Sizes	Fire-Rated	Stocked Fabrics	Finishes	Patterns
1	Best Sellers
2	242 Acoustic Panel	250	3.625"	✓	w/ Scatter Plate		✓	Air Gap	Eye-hooks	Stands Available		✓	✓	✓	24
3	244 Bass Trap w/ FlexRange Technology	80	5.5"	✓	w/ Scatter Plate	✓	✓	Air Gap	Eye-hooks	Stands Available		✓	✓	✓	24
4	244 Bass Trap w/FRT with Range Limiter	75 Hz to 400	5.5"	✓	w/ Scatter Plate	✓	✓	Air Gap	Eye-hooks	Stands Available		✓	✓	✓	24
5	Monster Bass Trap w/FRT	70	7.7"	✓	w/ Scatter Plate	✓	✓	Air Gap	Eye-hooks	Stands Available		✓	✓	✓	24
6	Monster Bass Trap w/FRT with Range Limiter	60 Hz to 400	7.7"	✓	w/ Scatter Plate	✓	✓	Air Gap	Eye-hooks	Stands Available		✓	✓	✓	24
7	Tri-Trap Corner Bass Trap©	50		✓	w/ Scatter Plate	✓		n/a	n/a	✓	✓		✓	✓	24	5	n/a
8
9	Absorbers
10	Spot Panel	300	2"	✓			✓	Hard-back	Sawtooth bars			✓	✓	✓	24
11	1" Acoustic Art Panel	400	1"	✓			✓	Hard-back	Sawtooth bars	Stands Available		✓	✓	✓	Custom Artwork
12	2" Acoustic Art Panel	300	2"	✓			✓	Hard-back	Sawtooth bars	Stands Available		✓	✓	✓	Custom Artwork
13	242 Acoustic Art Panel	250	3.625"	✓	w/ Scatter Plate		✓	Air Gap	Sawtooth bars	Stands Available		✓	✓	✓	Custom Artwork
14	4" Acoustic Art Panel	85	4"	✓	w/ Scatter Plate	✓	✓	Hard-back	Sawtooth bars	Stands Available		✓	✓	✓	Custom Artwork
15	6" Acoustic Art Panel	70	6"	✓	w/ Scatter Plate	✓	✓	Hard-back	Sawtooth bars	Stands Available		✓	✓	✓	Custom Artwork
16	DecoShapes - 1" Hexagon	400	1"	✓			✓	Hard-back	Sawtooth bars			✓		✓	24
17	DecoShapes - 2" Hexagon	300	2"	✓				Hard-back				✓		✓	24
18	2" Drop Ceiling Acoustic Panels	300	2"	✓			✓	Hard-back	Sawtooth bars			✓		✓	24
19	4" Drop Ceiling Acoustic Panels	85	4"	✓	w/ Scatter Plate		✓	Hard-back	Sawtooth bars			✓		✓	24
20	Soffit Bass Trap	40		✓	w/ Scatter Plate	✓	✓	n/a	n/a				✓	✓	24
21	Scopus Tuned Membrane Bass Trap (T100)	75 Hz – 135		✓	✓	✓	✓	Hard-back	Sawtooth bars				✓	✓	24	5	15
22	Scopus Tuned MembraneBass Trap (T70)	55 Hz – 100		✓	✓	✓	✓	Hard-back	Sawtooth bars				✓	✓	24	5	15
23	Scopus Tuned Membrane Bass Trap (T40)	30 Hz – 60		✓	✓	✓	✓	Hard-back	Sawtooth bars				✓	✓	24	5	15
24
25	Diffusers
26	Gotham N23 5" Quadratic Diffuser	650			✓		✓	n/a	Sawtooth bars							1

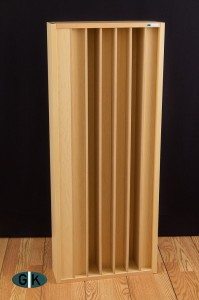

27	Q7d Diffusor	650			✓		✓	Hard-back	Sawtooth bars	✓						4
28	GridFusor	1000			✓		✓	n/a	n/a							1
29	Evolution PolyFusor	150		✓	✓	✓	✓	Hard-back	Sawtooth bars			✓	✓	✓	24	5	n/a
30
31	Alpha Series
32	2A Alpha Series - (Foam-Based)	350	2"	✓	✓		Glue	n/a	n/a							5	3
33	2A Alpha Pro Series	300	2"	✓	✓		✓	Muslin or fabric	Sawtooth bars	Stands Available		✓		✓	24	5	3
34	4A Alpha Pro Series	85	4"	✓	✓	✓	✓	Muslin or fabric	Sawtooth bars	Stands Available		✓		✓	24	5	3
35	6A Alpha Pro Series	70	6"	✓	✓	✓	✓	Muslin or fabric	Sawtooth bars	Stands Available		✓		✓	24	5	3
36	CT Alpha Pro Series Corner Bass Trap	50		✓	✓	✓	✓	n/a	n/a		✓		✓	✓	24	5	3
37
38	Impression Series
39	2" Impression Series - (Foam-Based)	350	2"	✓	✓		Glue	n/a	n/a							5	11
40	2" Impression Pro Series	300	2"	✓	✓		✓	Muslin or fabric	Sawtooth bars	Stands Available		✓		✓	24	5	12
41	4" Impression Pro Series	85	4"	✓	✓	✓	✓	Muslin or fabric	Sawtooth bars	Stands Available		✓		✓	24	5	12
42	6" Impression Pro Series	70	6"	✓	✓	✓	✓	Muslin or fabric	Sawtooth bars	Stands Available		✓		✓	24	5	12
43	CT Impression Pro Series Corner Bass Trap	50		✓	✓	✓	✓	n/a	n/a		✓		✓	✓	24	5	12
44
45	Vocal Booths / GOBO's
46	PIB (Portable Isolation Booth)	n/a		✓	✓			Front-plate	Wooden suport, hooks	✓			✓	✓	Upcharge	5	15
47	VISO Booth (Vocal ISOlation Booth)	n/a		✓				Front-plate	Stand extender				✓	✓	1	1	1
48	Freestand Acoustic Panel	200		✓				Covered	Metal feet	✓			✓	✓	24
49	Freestand Bass Trap	100		✓		✓		Covered	Metal feet	✓			✓	✓	24
50	Screen Panel	n/a		✓				Covered	n/a	✓			✓	✓	24
