6A Alpha Panel Diffusor / Absorber (6″)
23.75″ x 23.75″ $208.00 per pair ($104.00 each)
23.75″ x 47.75″ $183.00 each
Available in one-dimensional or two-dimensional scattering / diffusion sequences
To provide customers with the best possible shipping value, the square 6A Alpha Panel is packaged in pairs. If you wish to order a different quantity, please contact us to determine shipping rates.
Alpha Series plates available in blonde wood veneer, black, or white
The GIK Acoustics Alpha Series is changing the face of acoustic panels and bass traps by beautifully combining absorption with diffusion.
With the Alpha Series, customers can enhance any room both aesthetically and acoustically with superior quality, high-performing, stylish acoustic panels and bass traps.

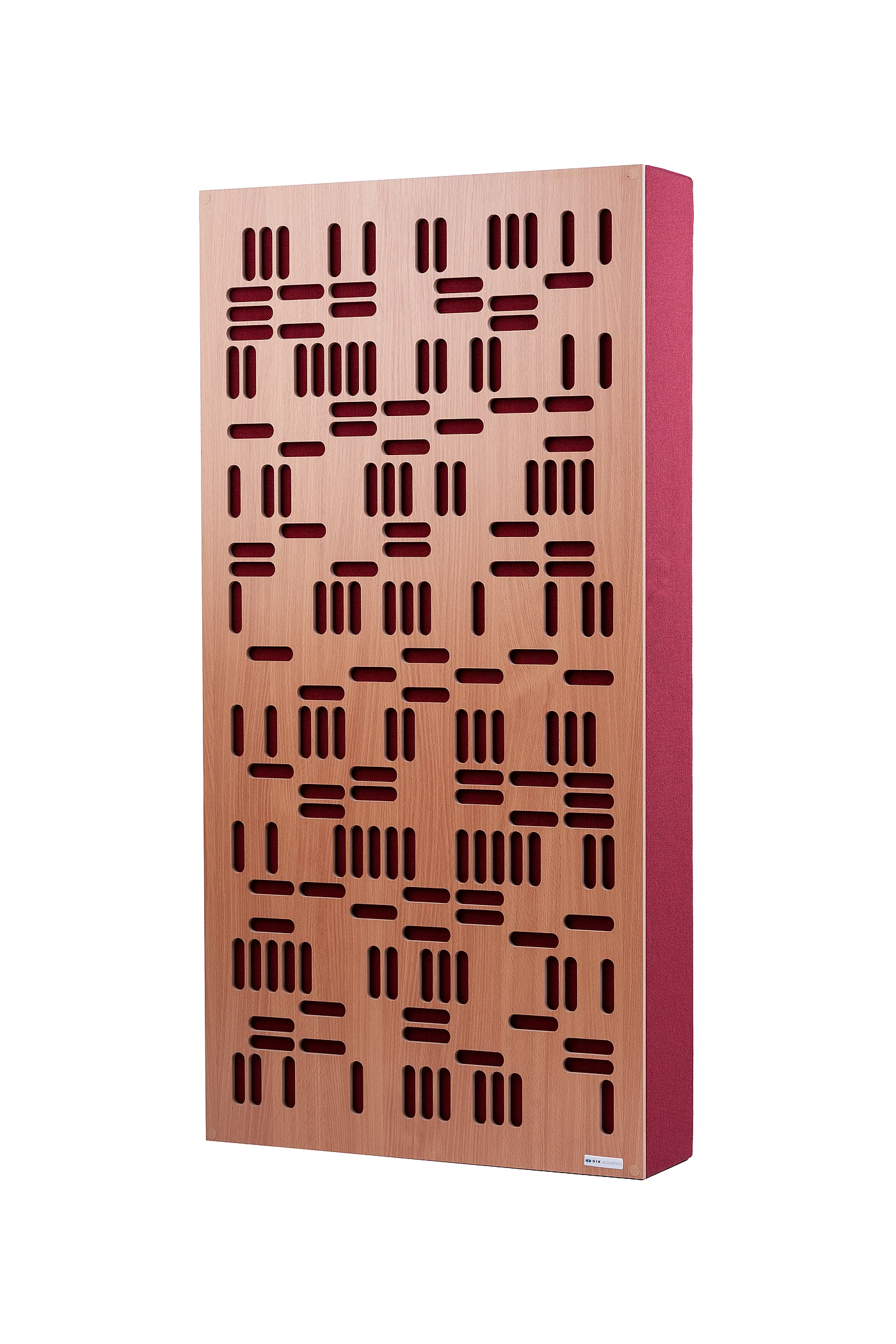

6A Alpha Panel
The 6A Alpha Panel features an attractive plate crafted with your choice of one-dimensional or two-dimensional scattering / diffusion sequences. Behind the fabric is 6″ of rigid fiberglass – NOT FOAM – for true absorption. The rigid fiberglass core provides greater low end absorption over similar foam-based products.

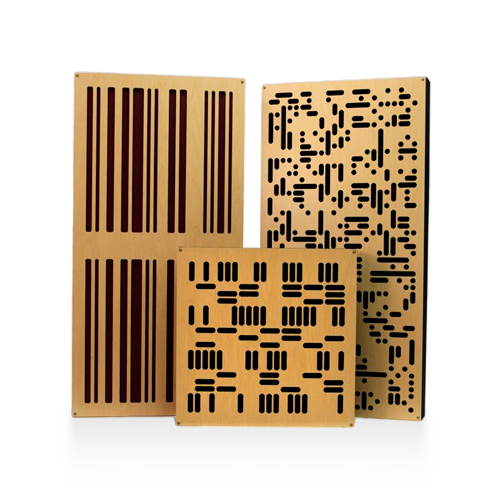

Available in three scattering options:
- One-Dimensional – The 1D option uses a mathematical sequence in a column that extends the length of the panel. The vertical slats of the 1D allow sound energy to be scattered in a horizontal plane.
- Two-Dimensional – The 2D options use a sequence of columns and rows with variable spacing that provides horizontal and vertical scattering of sound. Additional $20 each for Square panels and $30 each for Rectangle panels
- 2D (a) has a pattern of dots and dashes
- 2D (b) has a pattern of dashes
Both the one-dimensional and two-dimensional options start to diffuse at 1000Hz and are great for any kind of room and in any location in the room.
For advice on selecting diffusion patterns, check out our Acoustics & Audiogeekery blog post “Decoding Diffusion.” If you’re not sure which scattering option to choose, we are happy to help. Contact us for free acoustical advice.
Available in two standard sizes:
- Square – 23.75″ x 23.75″ – sold in pairs
- Rectangle – 23.75″ x 47.75″ – sold individually
- OPTIONAL freestanding supports available on rectangular (23.75″ x 47.75″) Alpha Panel. When freestanding, the Alpha Panel can change the acoustics of a room by simply turning the panel to face front or back. Position the slatted face outward for diffusion or turn the fabric side outward for broadband absorption. Also allows for flexible placement in early reflection points or straddling corners as a bass trap.
- Highly attractive, modern, and decorative face available in blonde wood veneer, black acrylic, or white acrylic
- 6A Alpha Panel depth: 6″ sturdy wood frame with rigid fiberglass core
- Square (23.75″ x 23.75″) Standard weight: 10 lbs
- Rectangle (23.75″ x 47.75″) Standard weight: 20 lbs
- NRC = 1.05 (versus foam products where NRC = 0.4)

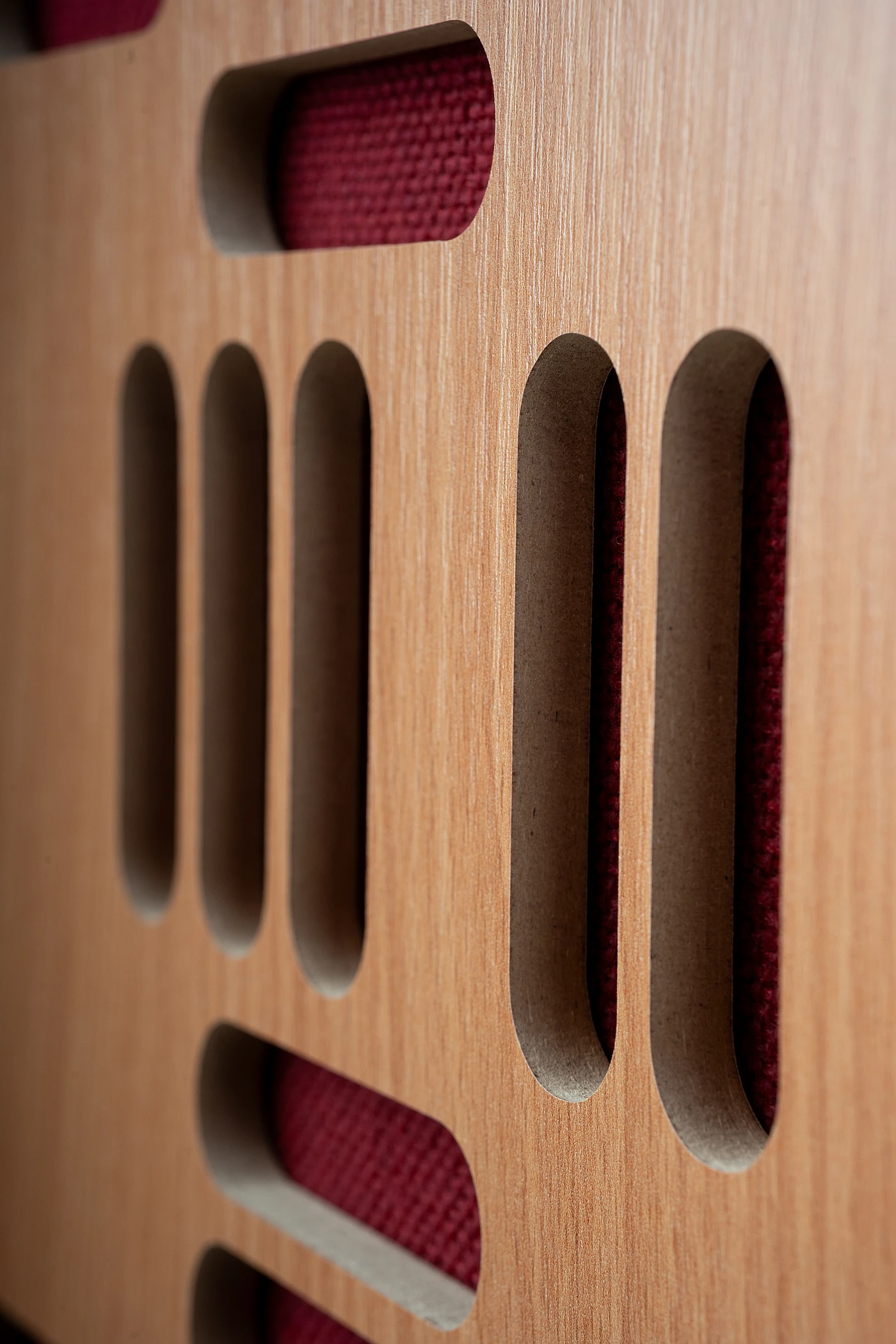

- Thin face plate has mathematical sequence of slots for spatial diffusion, but also allow low frequency waves to pass through to the fiberglass panel for low end absorption
- Rigid fiberglass core provides twice the low end absorption over similar foam-based products
- Easy to wall mount with sawtooth hanger (included). No glue or destructive adhesive when mounting
- Panels available in our 9 standard, quality GIK Acoustics fabric options
- Additional Guilford of Maine fabric choices available
- employs ECOSE® technology absorption material and is manufactured with LEED certified Columbia Forest Products (made in the USA) formaldehyde-free technology

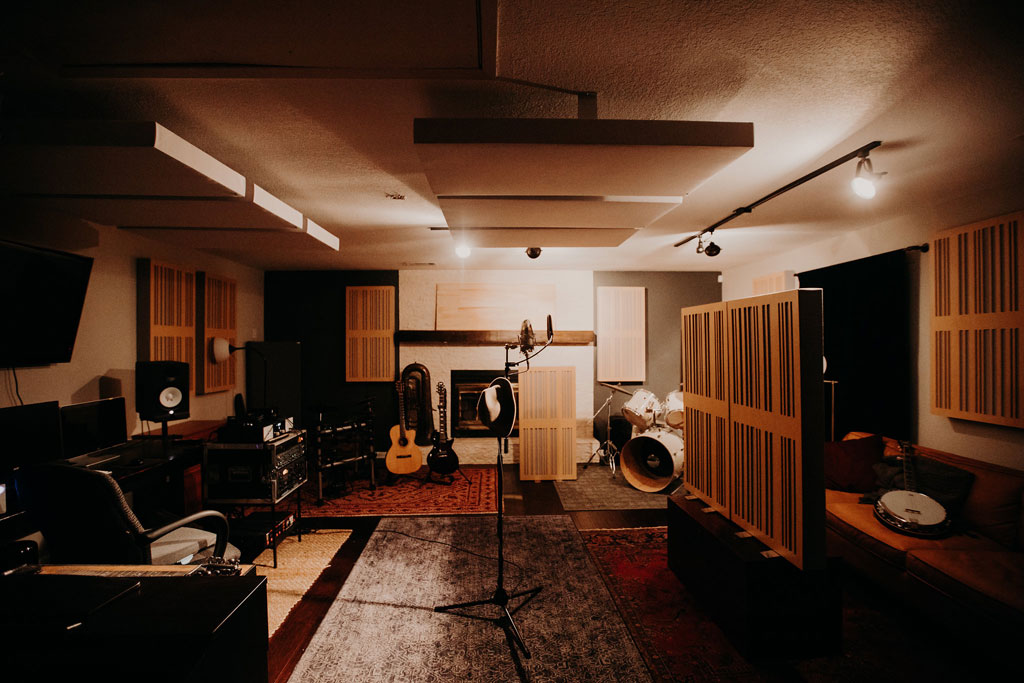

The 6A Alpha Panel is an attractive choice for a room where mid and high frequency chaos needs to be controlled but not removed. In a control room, the 6A Alpha Panel can be used on the front or back walls and rear sidewalls to keep the reverberation better mixed and the room lively. In home theater and two-channel audio rooms, the 6A Alpha Panel can be utilized on the rear sidewalls or behind dipole speakers to round off sharp reflections. The 6A Alpha Panel is also right at home anywhere in a tracking room or other large spaces, helping spread out the energy evenly across the whole room.
The 6A Alpha Panel is constructed as a 6″ wood-framed panel filled with rigid fiberglass absorption material (core made from 100% recycled materials, environmentally friendly without any formaldehyde or urea formaldehyde), wrapped in your choice of fabric, and finished with an attractive face which has a mathematical sequence of slots for either one-dimensional scattering/diffusion or two-dimensional scattering/diffusion
Scattering high frequencies with the use of slats in a mathematical sequence allows you to achieve an even decay time from low to high frequencies, while providing the necessary absorption to flatten the frequency response.
GIK Acoustics 6A Alpha Panel

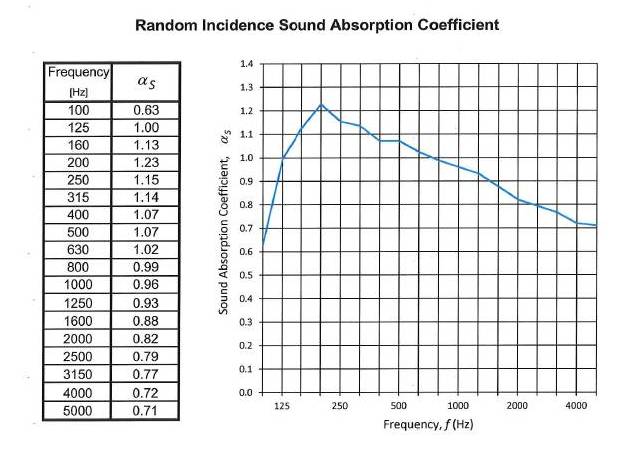

The tests were carried out in the large reverberation room at the University of Salford (Manchester England). The room has been designed with hard surfaces and non-parallel walls to give long empty room reverberation times with uniform decays.
GIK Acoustics Alpha Series 4A Alpha Panel Product Video
- This video provides product information for the GIK Acoustics 4A Alpha Panel. Descriptions of size, color options, placement and construction are presented.
Room Acoustics, The Basics: Bass Traps, Acoustic Panels, Diffusion
- This video explores the basics of room acoustics. Most of us use existing rooms such as bedrooms, living rooms or basements for a listening space versus high end recording studios that are designed with acoustics in mind. However there are ways to treat average-sized rooms to be utilized as control rooms, home theaters or two-channel listening rooms.
How Diffusion Works
- Diffusors are used to treat sound imperfections in rooms such as echoes and are an excellent complement to sound absorption because they do not remove sound energy. In this video we’ll examine How Diffusion Works.
Bass Traps and Understanding Low Frequencies
- This video examines how low end frequencies move in a room and how bass traps can solve these problems.

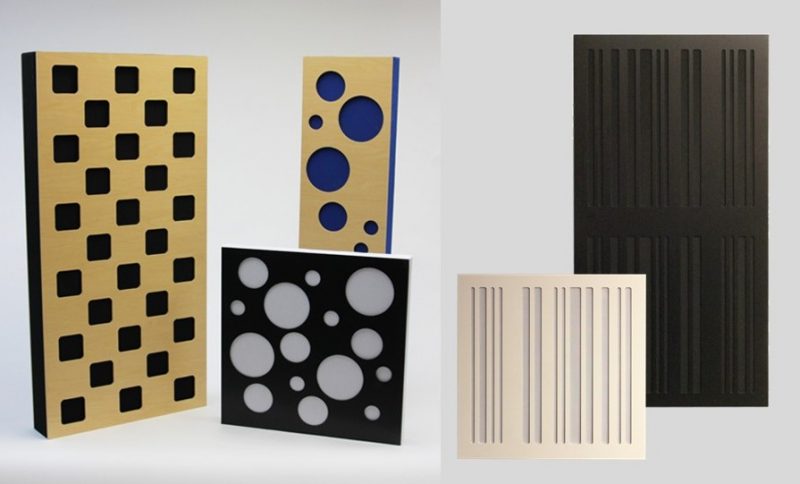

Alpha Series plates available in blonde wood veneer, black, or white
Alpha Panels are available in our 9 standard, quality GIK Acoustics fabric options at no additional charge. Upgrade to Guilford of Maine fabric choices for an additional $15.00 per panel for the square Alpha Panel and $25.00 per panel for the rectangle Alpha Panel.
9 STANDARD GIK ACOUSTICS FABRICS
You may select any of the following 9 stocked Guilford of Maine colors right off the web site for an additional $15.00 per panel for the square and $25.00 per panel for the rectangle. Contact us for a quote on any of the other Guilford of Maine FR701, Anchorage, or other fabrics.
9 STOCK GUILFORD OF MAINE COLORS
See all Guilford of Maine FR701 colors here. Order a color swatch book with fabric samples for $15.00

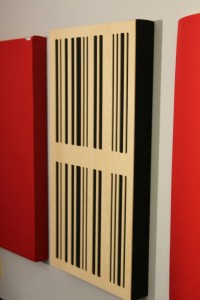

Each Square 23.75" x 23.75" 6A Alpha Panel comes with a sawtooth hanger for easy wall mounting.
Each Rectangle 23.75" x 47.75" 6A Alpha Panel comes with two sawtooth hangers for easy wall mounting.
You have your choice of orientation. The Alpha Panel can be hung vertically or horizontally or in a combination of patterns. The choice is yours.

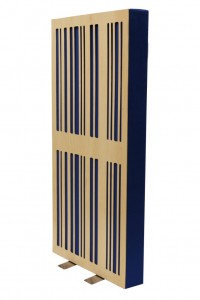

OPTIONAL freestanding supports available on rectangular (23.75" x 47.75") Alpha Panel. When freestanding, the Alpha Panel can change the acoustics of a room by simply turning the panel to face front or back. Position the slatted face outward for diffusion or turn the fabric side outward for broadband absorption. Also allows for flexible placement in early reflection points or straddling corners as a bass trap.
