Evolution PolyFusor© Diffusor / Absorber

$270.00 per pair ($135.00 each)

Available with black, white, or new Blonde WOOD caps

View Colors Available and Upgrade Fabric Options

The Evolution PolyFusor© is packaged in pairs. If you wish to order a quantity that is not in multiples of two, please contact us.

Poly Diffusor

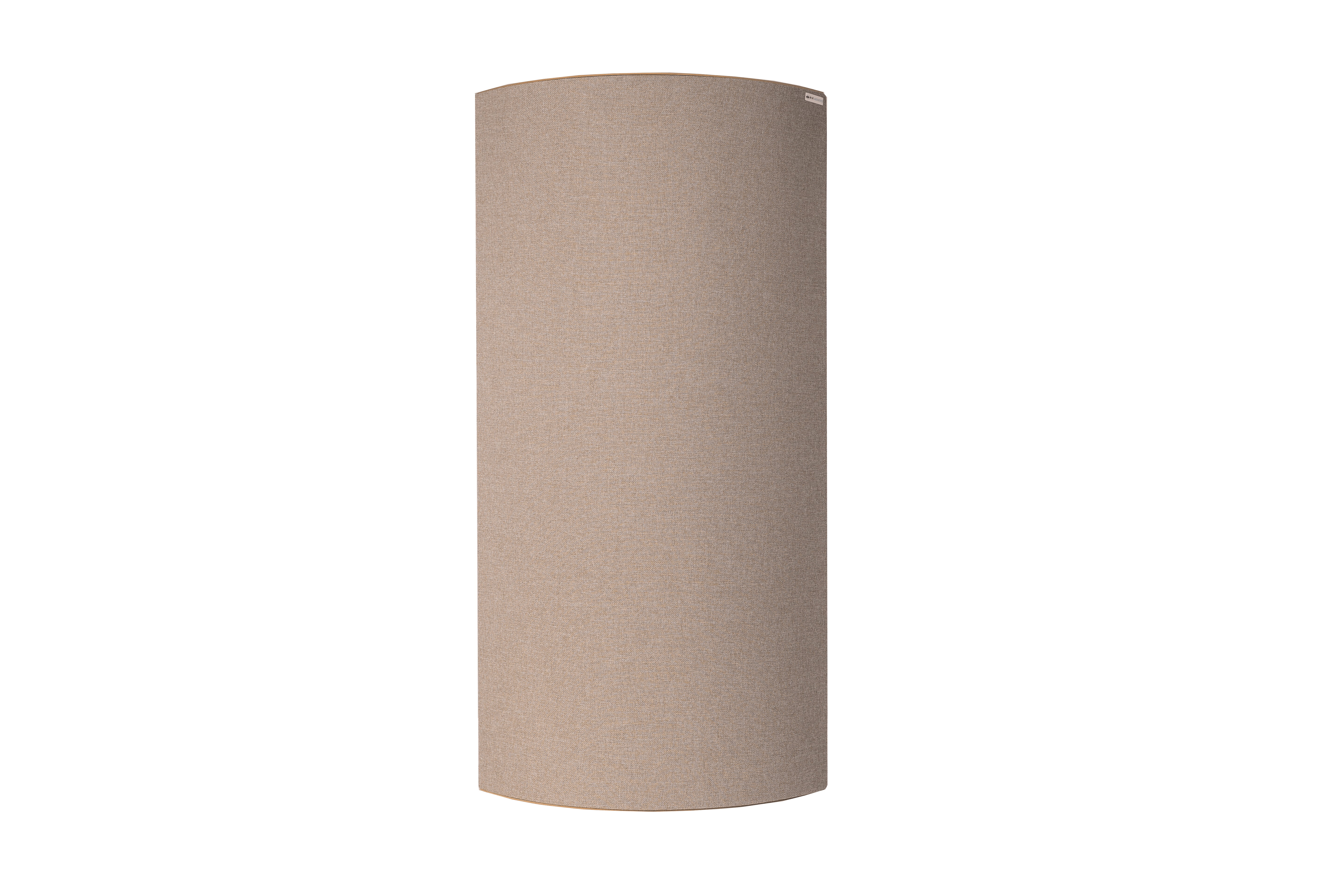

The GIK Acoustics Evolution PolyFusor© is a combination of a polycylindrical diffusor and an absorber merged into a single unit. Polycylindrical diffusors, or polyfusors, are known for their excellent dispersion characteristics over a very wide range. The curved front plate of the Evolution PolyFusor© allows for virtually perfect spatial diffusion, while simultaneously allowing lower frequency waves to pass through to the cavity of absorption behind.

The Evolution PolyFusor© provides a great mix of absorption and diffusion capabilities. Polyfusors offer a wider band of spatial diffusion than a typical quadratic residue diffusor, but do not affect the phase of the incident sound. Thus the Evolution PolyFusor© is best suited to spreading mid and high frequencies out in a room.

Evolution PolyFusor FEATURES:

  • GIK Acoustics Poly Diffusor Red w black topPoly diffusors are known for their excellent dispersion characteristics
  • Standard dimensions: 47.25″ tall and 24″ across

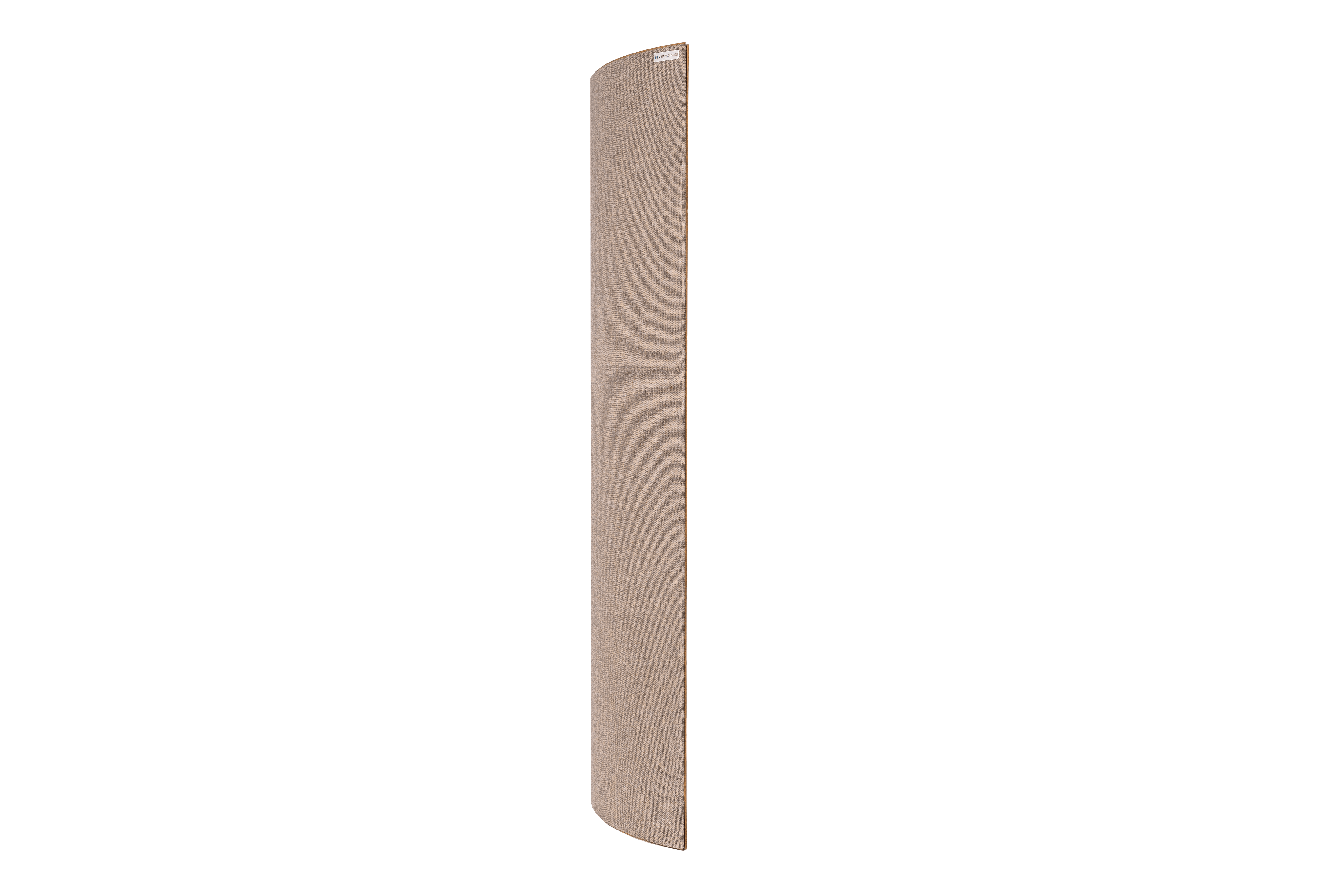

  • Very visually attractive with a narrow 5.25″ profile that hugs the walls
  • Standard weight: 20 lbs

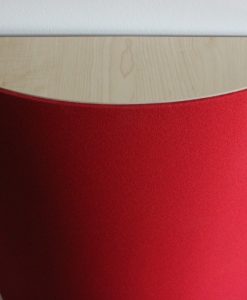

  • Available with black, white, or wood caps
  • Virtually a perfect spatial diffusor
  • The Evolution PolyFusor© smoothly transitions as a bass trap from 80Hz, to upper-bass/lower-mid scattering device, to diffusor. Starts diffusing at 600Hz.
  • Thin wood poly lets low frequency waves in for low end absorption

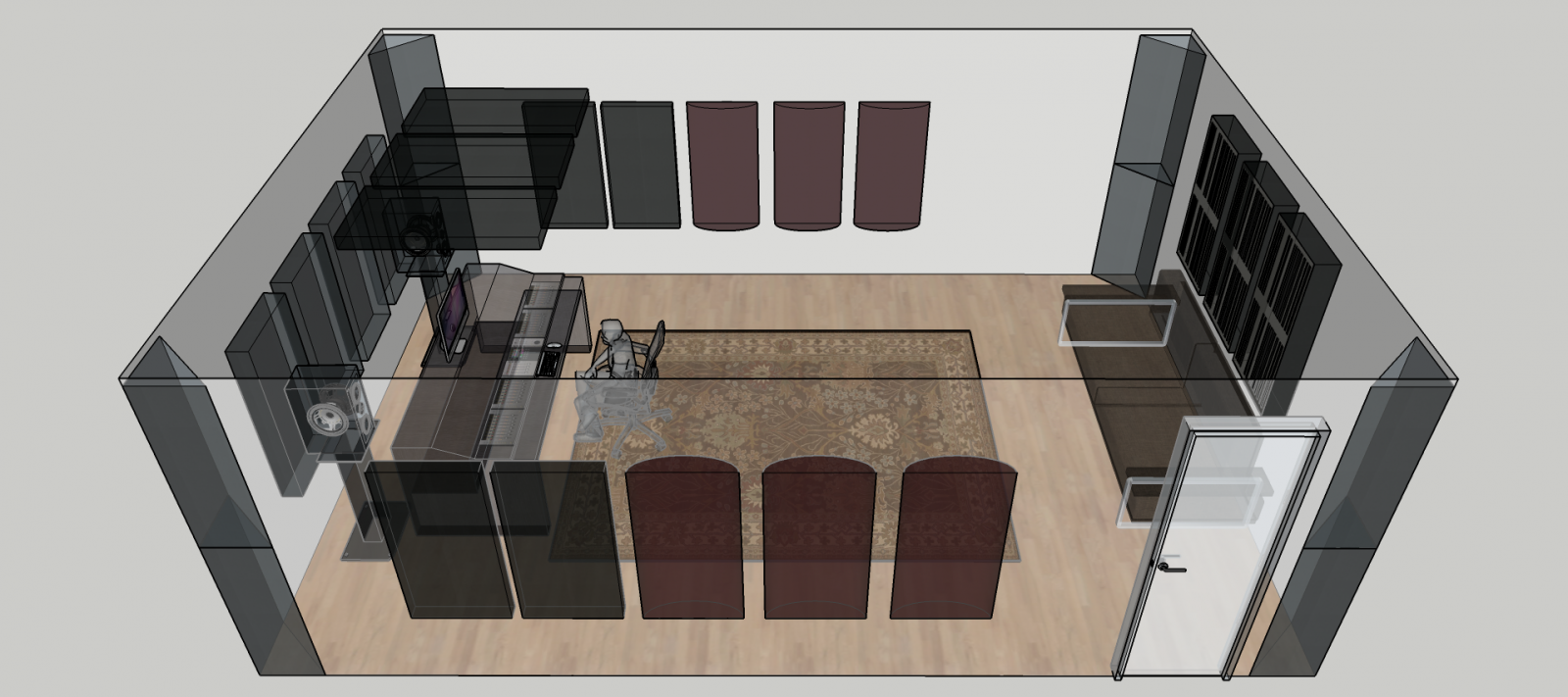

  • Ideal on the front wall or rear wall of control rooms, or on the rear sidewalls
  • Ideal basically anywhere in a live/recording room
  • Similar to bass traps, can straddle corners for enhanced low frequency absorption
  • Can be wall mounted, free standing or stacked
  • Can be custom sized to fit your specifications
  • Class A fire rated – Click HERE for Fire Rating test results GIK Acoustics Class A Fire Rating
  • Available in our 9 standard, quality GIK Acoustics fabric options
  • Additional Guilford of Maine fabric choices available
  •  employs ECOSE® technology absorption material and is manufactured with LEED certified Columbia Forest Products (made in the USA)  formaldehyde-free technology

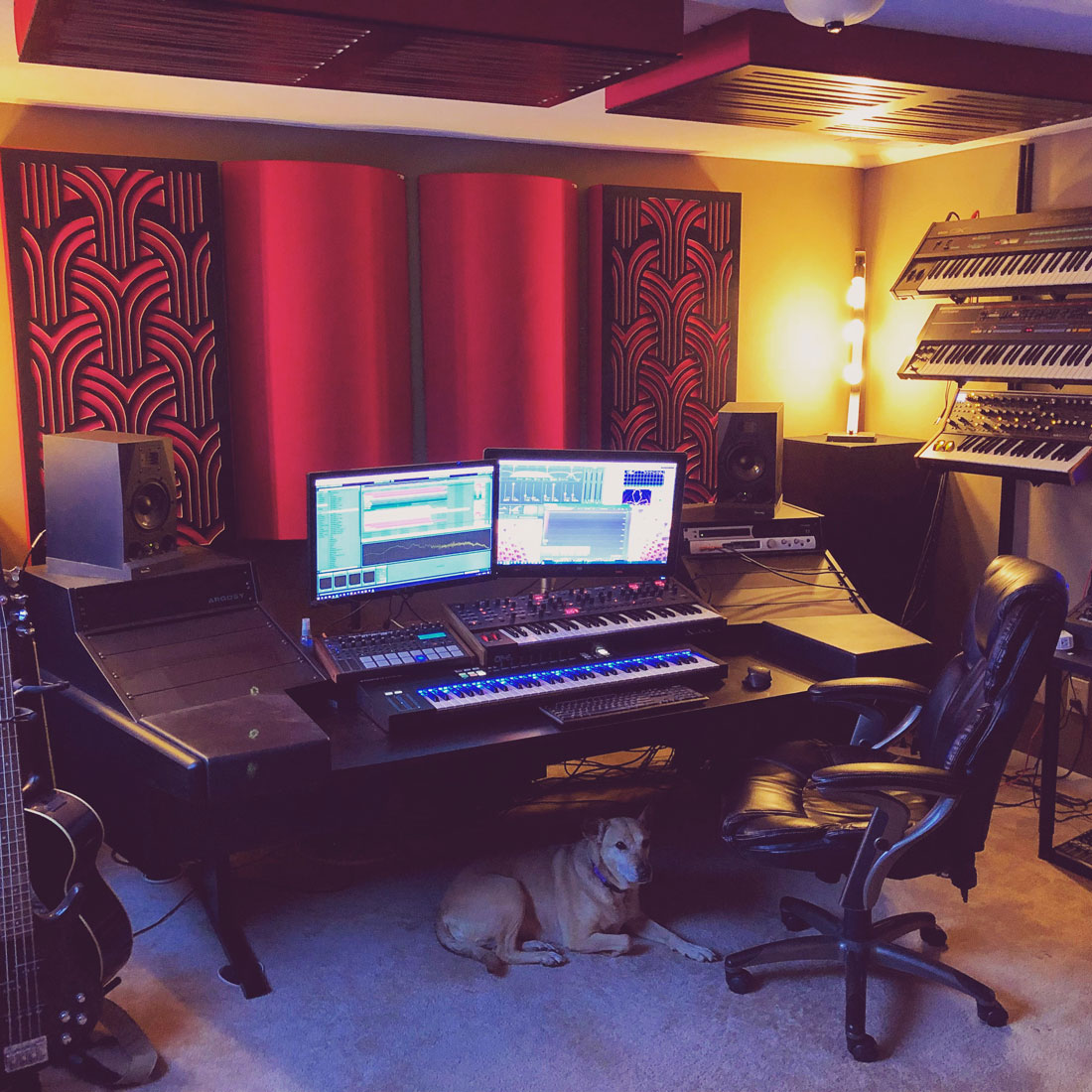

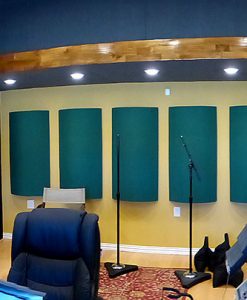

Bonzi Recording Studio
Bonzi Recording Studio

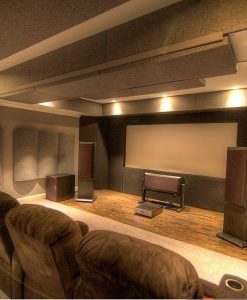

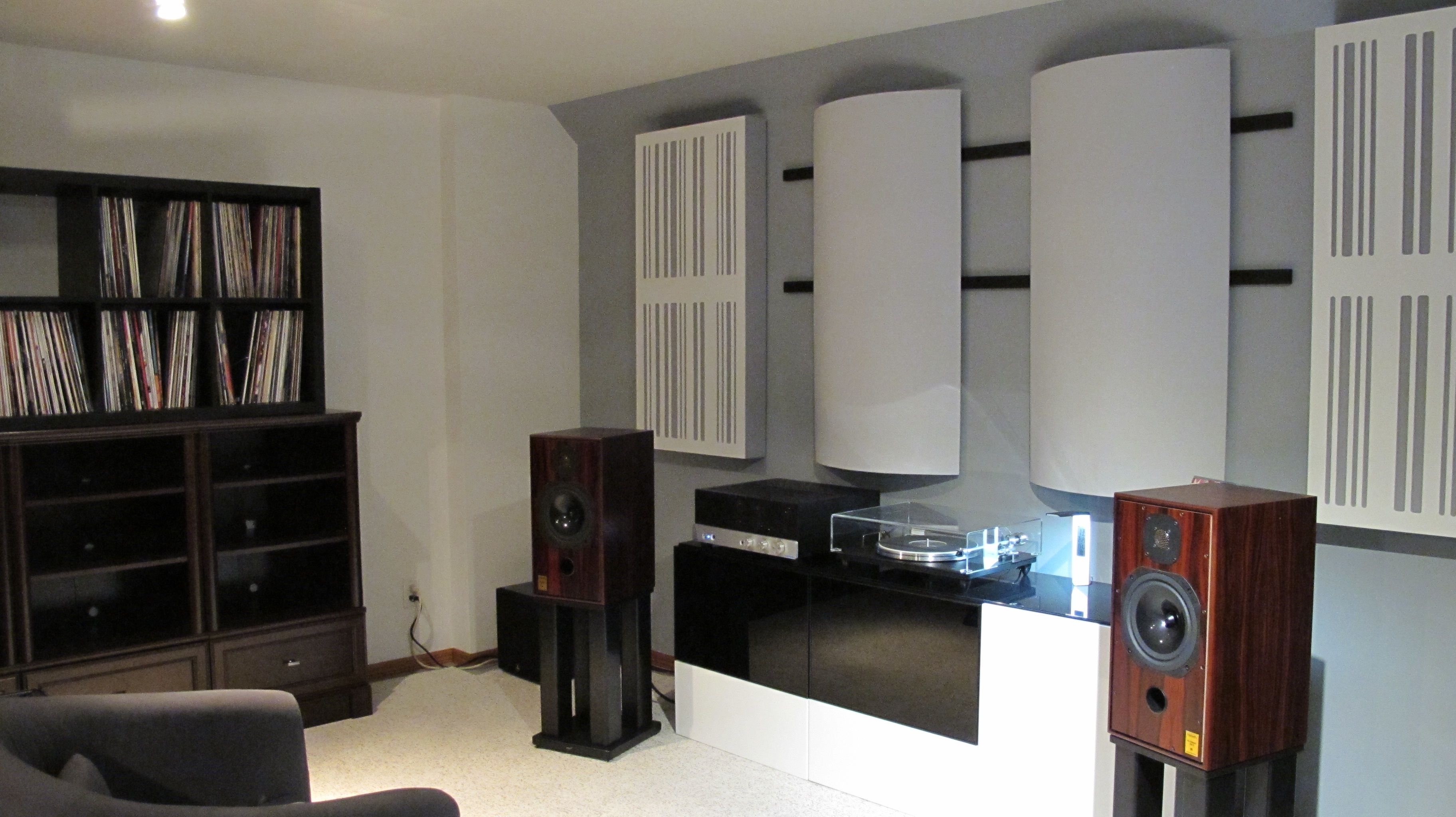

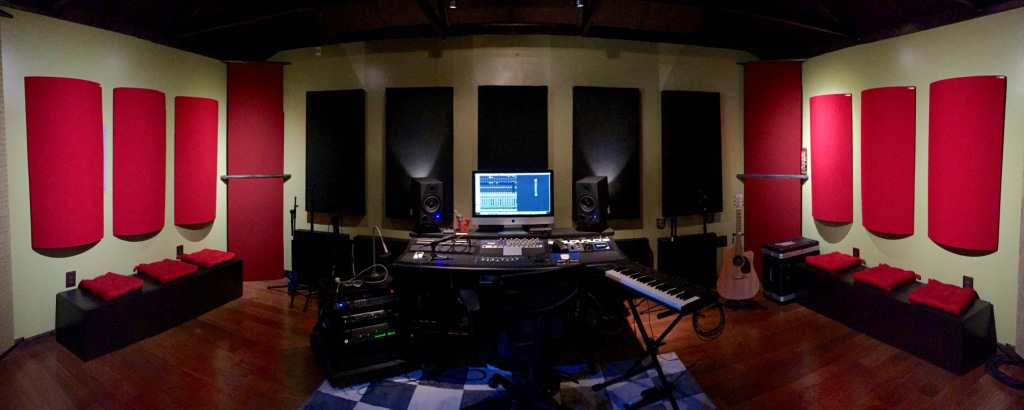

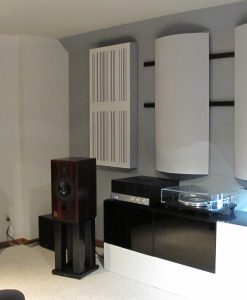

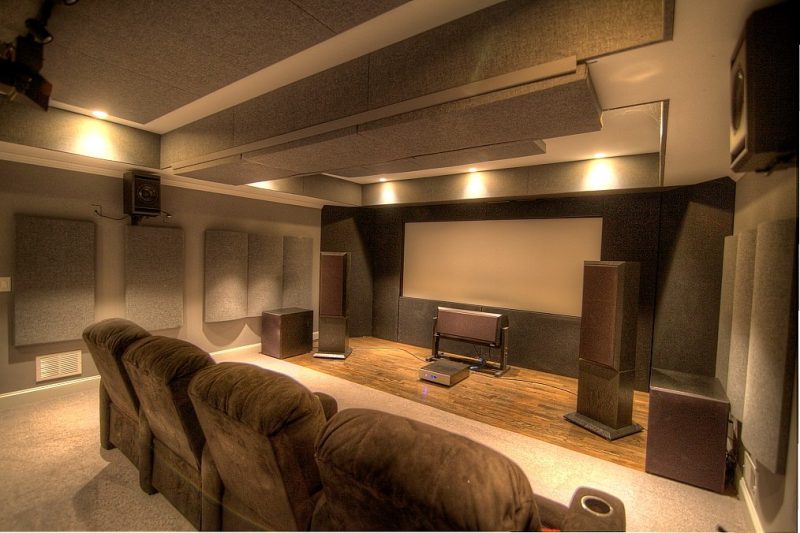

The Evolution PolyFusor© is an attractive choice for a room where mid and high frequency chaos needs to be controlled but not removed. In a control room, the Evolution PolyFusor© can be used on the front and back walls, and rear sidewalls to keep the reverberation better mixed. In home theater and two-channel audio rooms, the Evolution PolyFusor© can be utilized on the rear or sidewalls, or behind dipole speakers, to round off sharp reflections. The Evolution PolyFusor© is also right at home anywhere in a tracking room or other large spaces, helping spread out the energy evenly across the whole room. Similar to our bass traps, the Evolution PolyFusor© can be used in corners for enhanced low frequency absorption.

The Evolution PolyFusor© smoothly transitions as a bass trap from 80Hz, to upper-bass/lower-mid scattering device, to diffusor. Starts diffusing at 600Hz.

The Evolution PolyFusor© provides a great mix of absorption and diffusion capabilities. Polyfusors offer a wider band of spatial diffusion than a typical quadratic residue diffusor, but do not affect the phase of the incident sound. Thus the Evolution PolyFusor© is best suited to spreading mid and high frequencies out in a room.

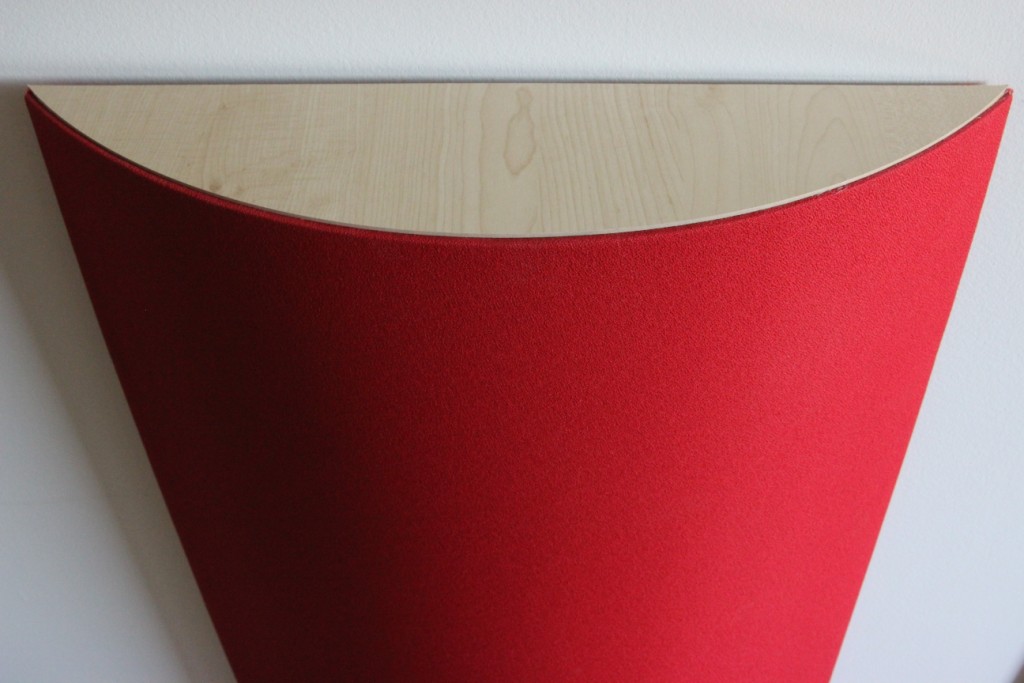

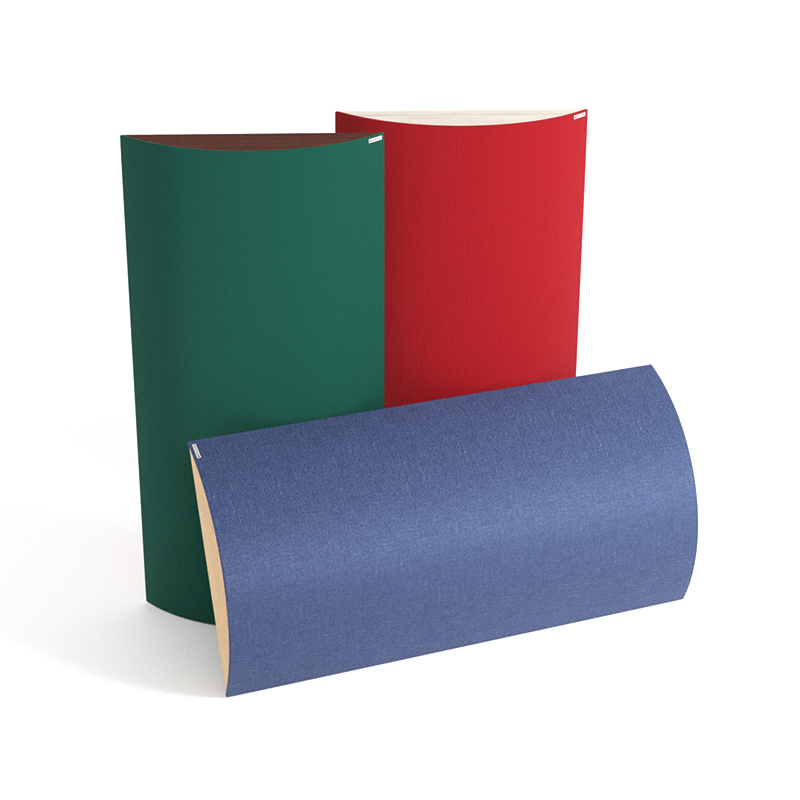

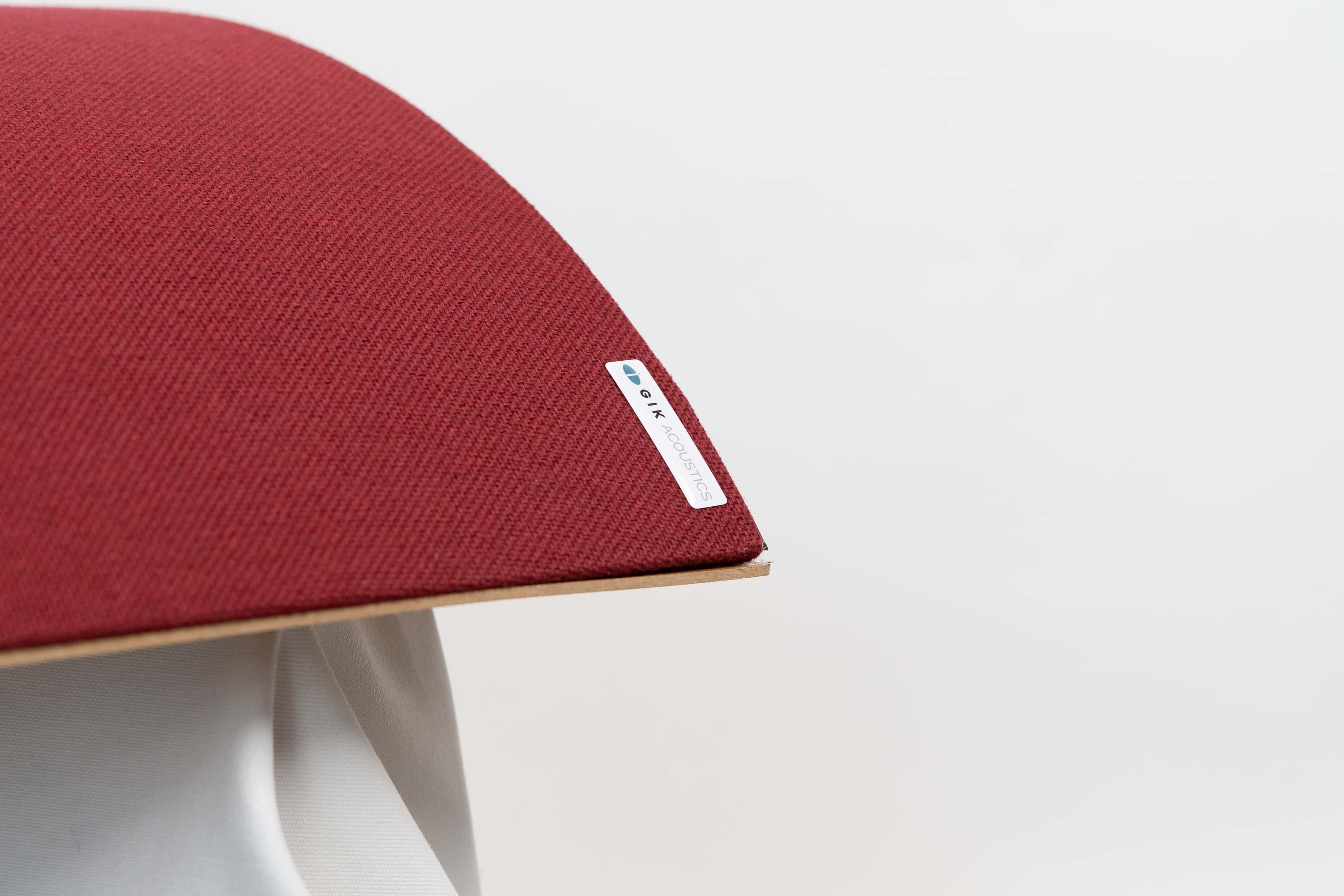

The Evolution PolyFusor© is constructed with a rigid base frame and curved front plate, and filled with absorption material. We wrap the unit up in your choice of fabric, and level off the top and bottom with black, white, or wood caps for a clean finish.

For more information on using diffusion, read our article “Diffusion is a Wonderful Tool” by Jeff Hedback.

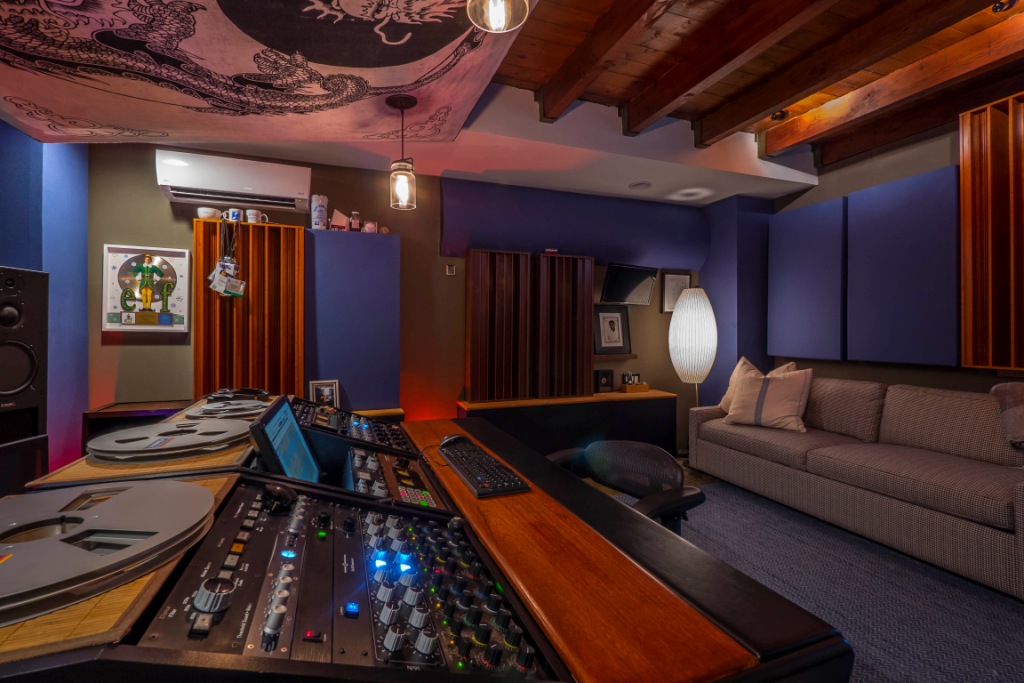

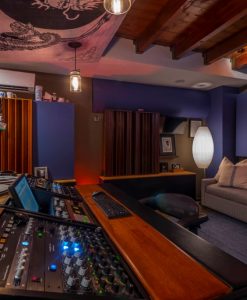

Marsh Mastering Console 2016
Marsh Mastering Console 2016

GIK Acoustics Evolution PolyFusor©

Wall A-Mount Test Results
Wall A-Mount Test Results

Click for the PolyFusor Wall A-Mount Full Test Results


Corner J-Mount Test Results
Corner J-Mount Test Results

Click for the PolyFusor Corner J-Mount Full Test Results

As part of their internationally renowned acoustics measurement facility, the University of Salford’s Acoustic Test & Calibration Laboratory provides an independent, service for acoustic consultancies, local authorities, construction, product design and other acoustic-related industries.

See their UKAS scope here for Calibration and Testing.

INSTALLATION

The Evolution PolyFusor can be wall mounted, they can rest free standing, or they can be stacked.

If you wish to mount to the wall, each Evolution PolyFusor comes with a pair of heavy duty sawtooth hangers and screws to affix the hangers to the frame.

FABRIC OPTIONS

GIK Acoustics panels are available in our 9 standard, quality GIK Acoustics fabric options at no additional charge.

9 STANDARD GIK ACOUSTICS FABRICS

standard9


UPGRADES

You may select any of the following 9 stocked Guilford of Maine FR701 colors right off the web site or contact us for a quote on any Guilford of Maine FR701, Anchorage, or other fabrics.

9 STOCK GUILFORD OF MAINE COLORS

Standard 9 GOM FR701

Upgrade the finish to Guilford of Maine FR701 or Anchorage fabrics for a nominal charge per panel.

Product Panel Size Additional charge per panel
Spot Panel Square (24” x 24”) or Narrow (12” x 48”) $7.00
242 Acoustic Panel, 244 Bass Trap, Monster Bass Trap Square (24” x 24”) or Narrow (12” x 48”) $8.50
242 Acoustic Panel or Spot Panel Rectangle (24” x 48”) $15.00
244 Bass Trap or Monster Bass Trap Rectangle (24” x 48”) $20.00
Tri-Trap Corner Bass Trap standard 47” $20.00
Soffit Bass Trap standard 46.5” $30.00
Scopus Tuned Membrane Bass Trap T100, T70, or T40 $25.00
FreeStand Acoustic Panel or FreeStand Bass Trap standard 60” $25.00
Screen Panel standard 72” $55.00
Evolution PolyFusor standard 47” $15.00

See all Guilford of Maine FR701 colors here.

Order a color swatch book with fabric samples for $15.00
